Robe Robin Esprite - Replacing Rotating Gobos

7
4.3 Replacing rotating gobos
1. Close a light output of the xture and allow the xture to cool about 15 minutes.
2. Put the xture on the table and remove top plastic covers of the head by loosening the 2 quarter-turn fasteners
on each cover.
3. Connect the xture to mains. Go to the tab "Service", select the menu "Adjust DMX values " and move
the xture head to the position which is intended for changing rot. gobos as shown on the picture below.
4. Remove the top plastic cover of the head by loosening the 2 quarter-turn fasteners on the cover.
5. Escape from the menu "Adjust DMX values " and go to the menu " Rotating Gobos Change" in the same tab,
select Gobo Carousel 1 and enter to its menu.
6. Select a gobo (G1-Mg, G2, G3, G4, G5, G6, G7) which you wish to replace. The selected gobo will move to
the accessible position for its changing.
Note: "G1-Mg" means the gobo holder with a magnet.
7. Check that the position point (4) on the gobo holder aims exactly to the toothlike projection (6) on
the edge of the rotating gobo wheel. If not, go to the option "Gobo O󰀨set" and adjust the position point (4)
exactly opposite of the toothlike projection(6). Adjusted value in the "Gobo O󰀨set" is valid for all gobos on
the gobo carousel.
Note: The magnet (7) on the gobo holder substitutes the position point (4).

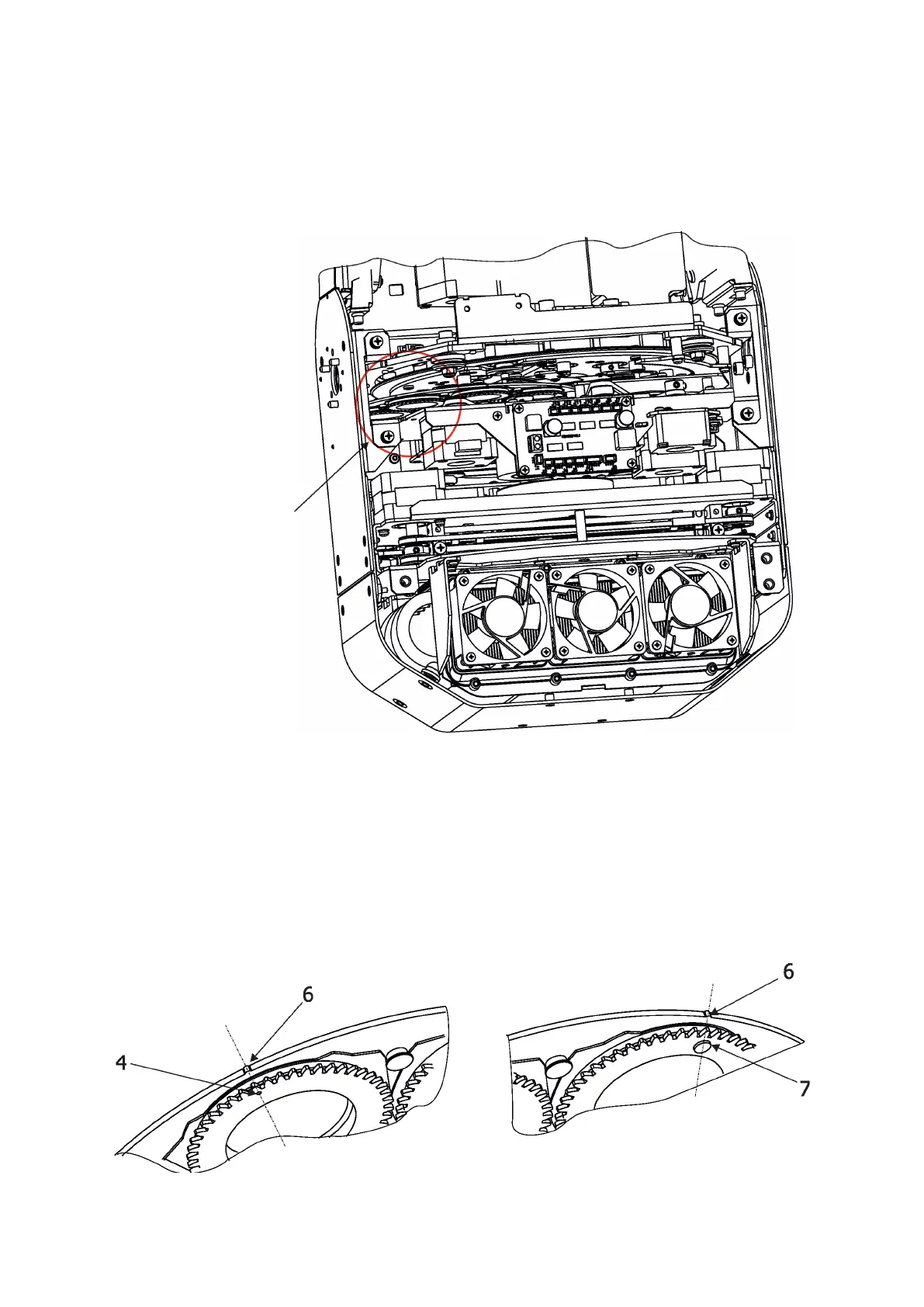

Place for rot. gobos
changing
