17) Blower housing and head cover
Install head cover, blower housing and cylinder baffle.
18)
Rotating screen
Mount the rotating screeen with spacer.
8
x
50
mm bolts with washer and spring washer
Tightening torque:
160
-
200
kg-cm
19)
Oil filler
Insert the oil filler into the main bearing cover, exercising care not to damage the O-ring at the bottom
of the oil filler. Fasten the top of the oil filler with the oil filler clamp.
20)
Intake manifold, carburetor, elbow, and air-cleaner
.Temporarily fasten the intake manifold, carburetor, elbow, air-cleaner, etc. and make sure that these
@Be sure to use the correct gasket on each flange. (See Fig.
32.)
parts
are
properly positioned relative
to
one another. Then tighten the
bolts
and nuts.
I

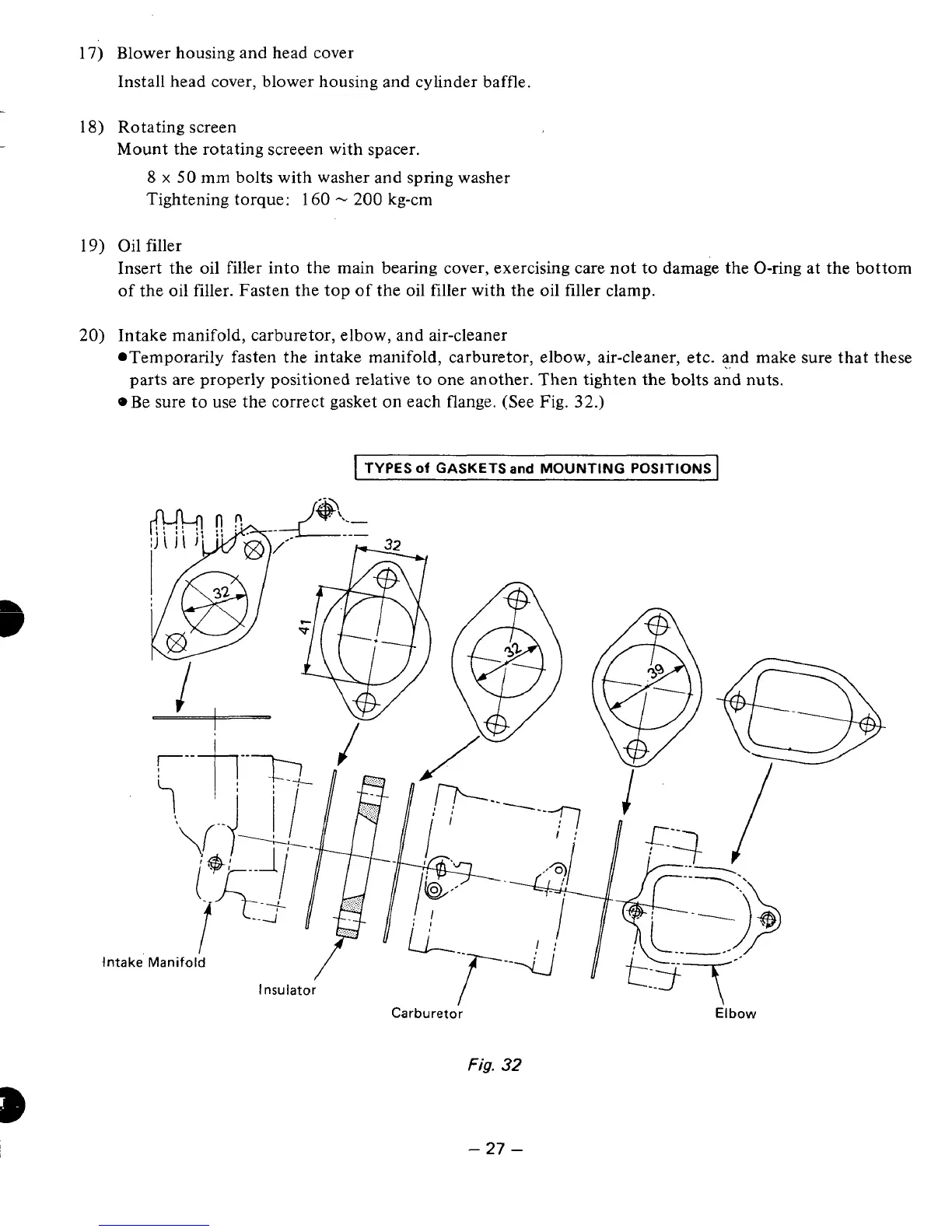

TYPES
of
GASKETS
and
MOUNTING
POSITIONS
I
Intake
Insulator
Carburetor
Elbow
Fig.
32
-
27
-
