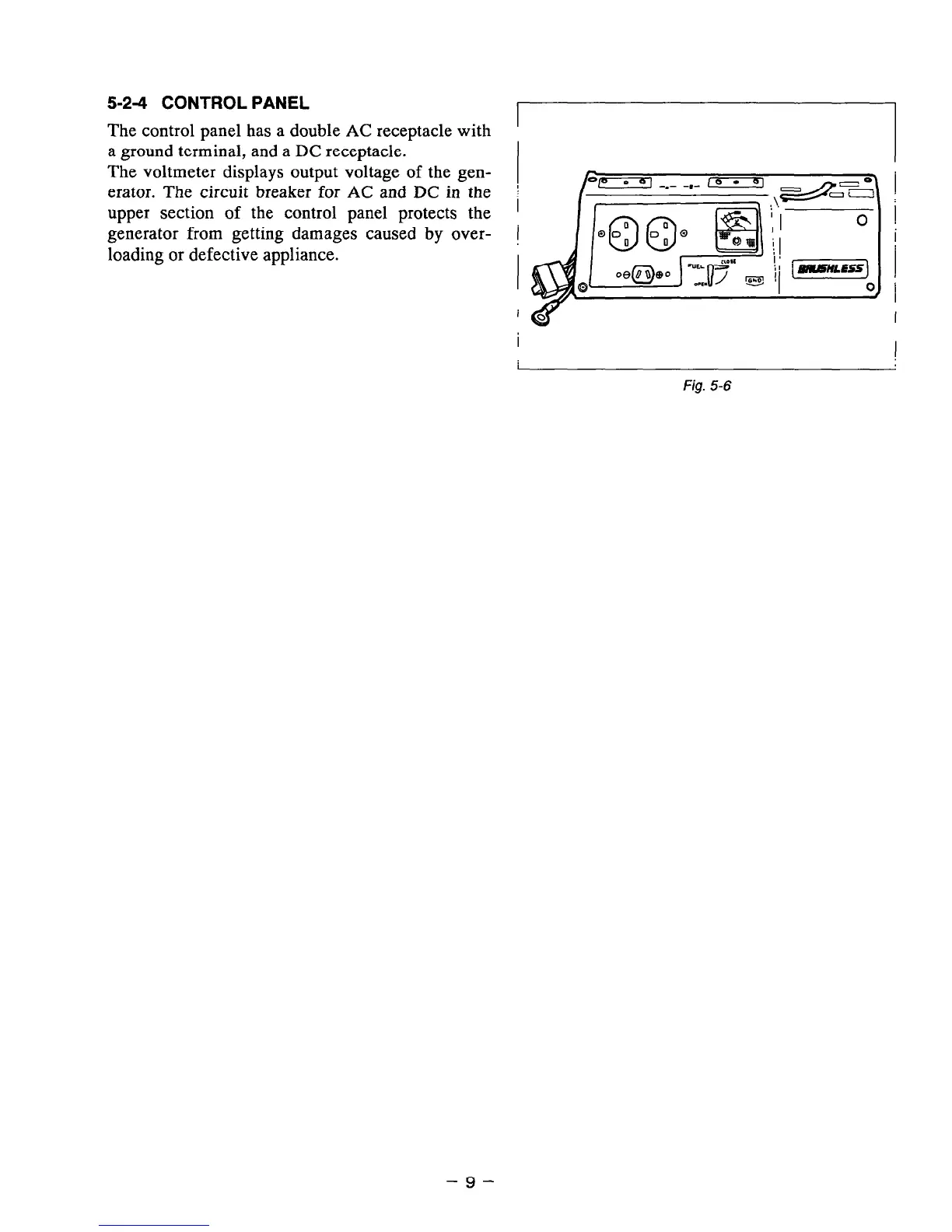

5-2-4 CONTROL PANEL
The control panel has a double AC receptacle with
a ground terminal, and a DC receptacle.
The voltmeter displays output voltage of the gen-
erator. The circuit breaker for AC and DC in the
upper section of the control panel protects the
generator from getting damages caused by over-
loading or defective appliance.
I
Fig. 5-6
-9-
