Step
13.
tart to remove
Rotor
Front bracket
-I-
Description
4. Screw the bolt into the thread of the
rotor shaft.
5. Torque the bolt using a socket wrench
until the rotor comes off loose.
* The hydraulic pressure inside the rotor
shaft takes apart the rotor from the
engine shaft.
(4) Wipe off oil throughly from rotor shaft
and engine PTO shaft.
Remarks

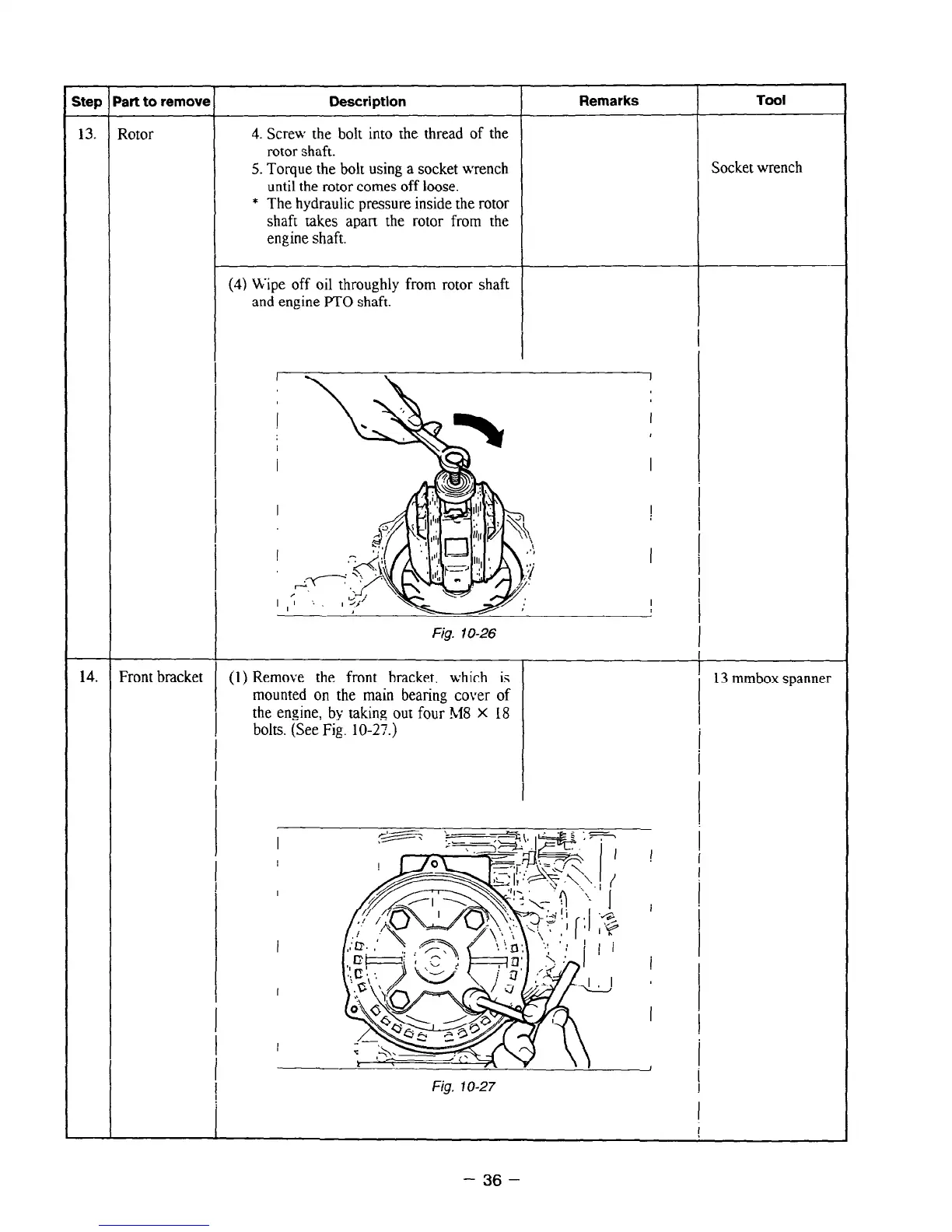

Fig. 10-26
(1) Remove the front bracket. which is
mounted on the main bearing cover of
the engine, by taking out four M8
X
18
bolts. (See Fig. 10-27.)
Socket wrench
! 13 mmbox spanner
Fig. 10-27
- 36 -
