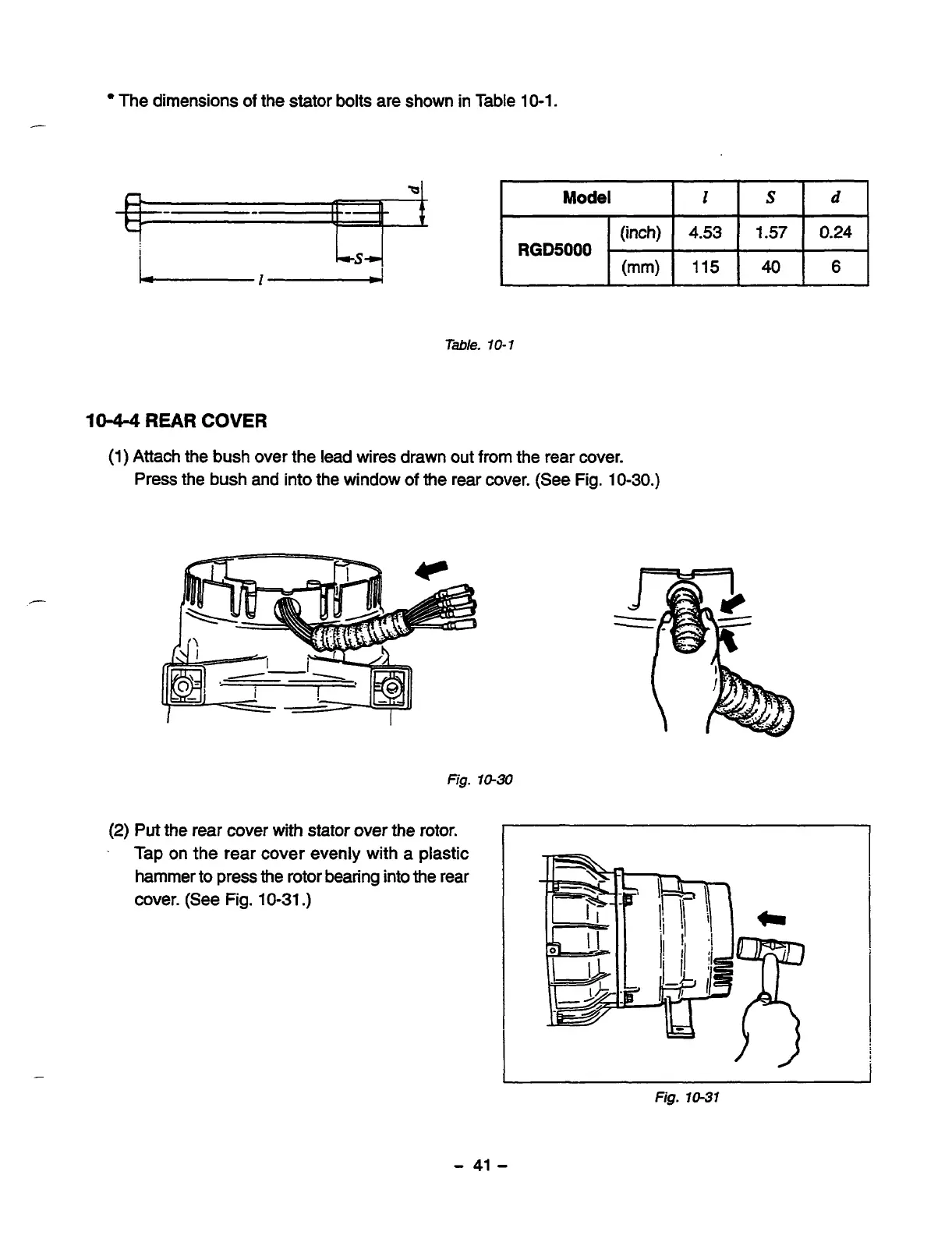

The dimensions of the stator bolts are shown in Table 10-1.
Tale. 10- 1
10-4-4 REAR COVER
(1) Attach the bush over the lead wires drawn out from the rear cover.
Press the bush and into the window
of the rear cover. (See Fig. 10-30.)
Fig. 1030
(2) Put the rear cover with stator over the rotor.
. Tap on the rear cover evenly with a plastic
hammer to press the rotor bearing into the rear
cover.
(See Fig. 10-31 .)
Fig. 1031
