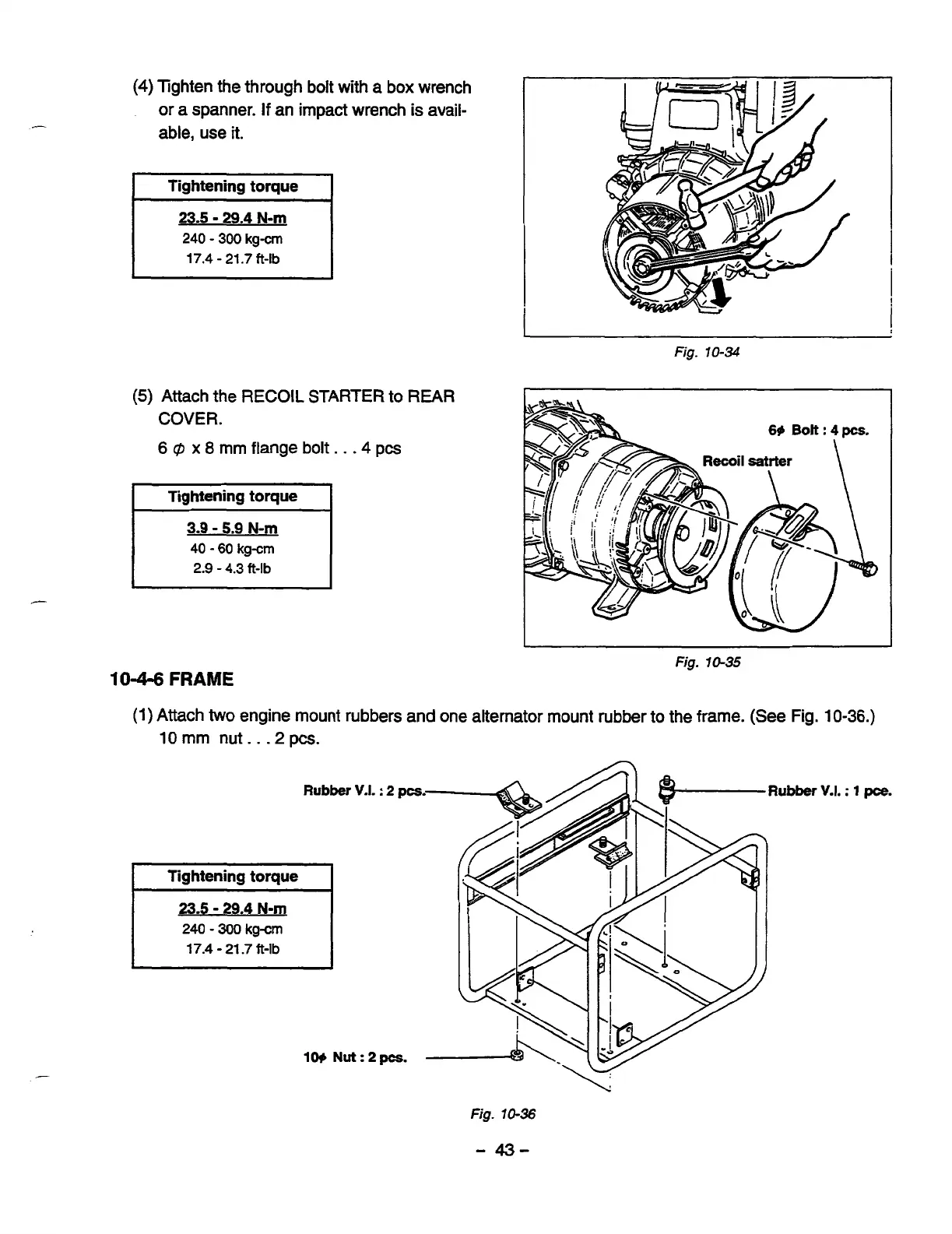

(4) Tighten the through bolt with a box wrench
or
a spanner. If an impact wrench is avail-
able, use it.
240 - 300 kgcm
17.4 - 21.7 ft-lb
(5) Attach the RECOIL STARTER to REAR
COVER.
6 @ x 8 mm flange bolt. . .4 pcs
I Tightening torque I
3.9 - 5.9 N-m
40 - 60 kg-cm
2.9 - 4.3 ft-lb
Fig. 70-35
(1) Attach two engine mount rubbers and one alternator mount rubber to the frame. (See Fig. 10-36.)
10 mm nut.. .2 pcs.
V.I. : 1 pce.
