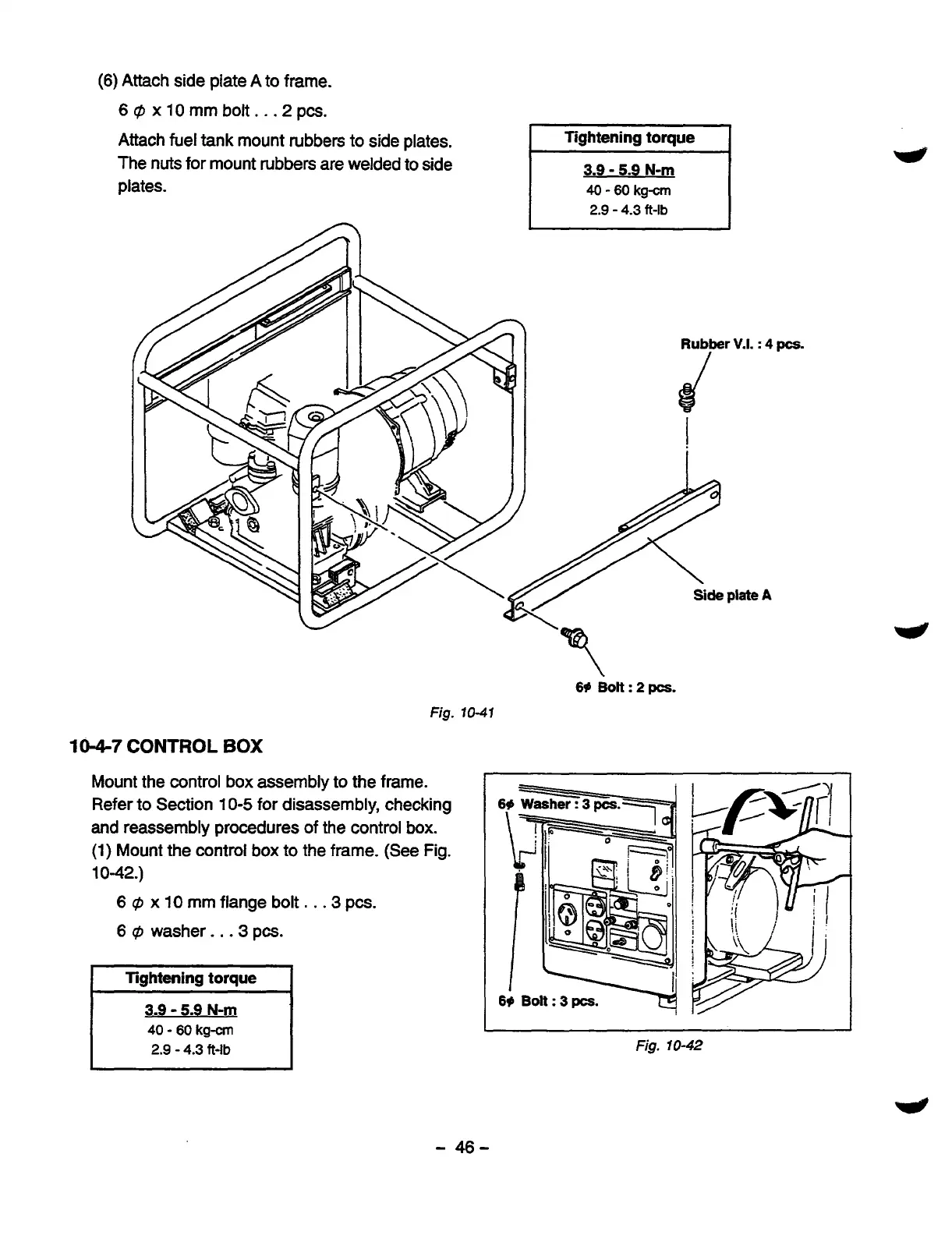

(6)
Attach side plate
A
to frame.
6
@
x
10
mm bolt..
.2
pcs.
Attach fuel tank mount rubbers to side plates.
The nuts for mount rubbers are welded to side
plates.
I
lightening
toque
I
3.9
-
5.9
N-m
40
-
60
kgcm
2.9
-
4.3
ft-lb
1
I
10-4-7
CONTROL
BOX
Mount the control box assembly to the frame.
Refer to Section
10-5
for disassembly, checking
and reassembly procedures
of
the control box.
(1)
Mount the control box to the frame. (See Fig.
10-42.)
6
@
x
10
mm flange bolt.
.
-3
pcs.
6
@
washer.
.
.3
pcs.
40
-
60
kg-
2.9
-
4.3
ft-lb
69
Bolt
:
2
pcs.
Fig.
10-41
1
I
Fig.
10-42
-
46-
