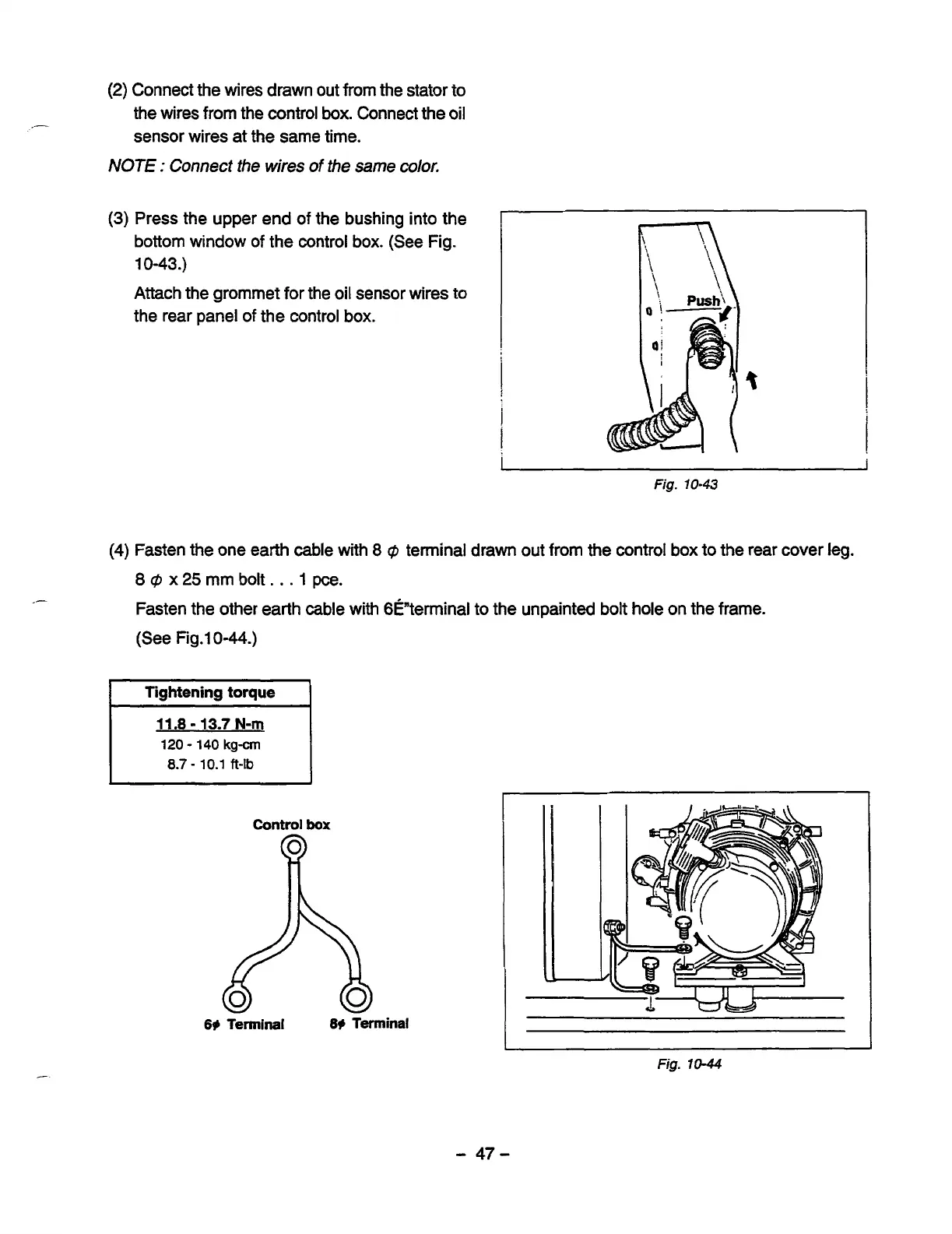

(2)
Connect the wires drawn out from the stator to
the wires from the control box. Connect the oil
sensor wires
at
the same time.
_-
NOTE
:
Connect the wires
of
the
same
color.
(3)
Press the upper end of the bushing into the
bottom window
of
the control box. (See Fig.
1
0-43
.)
Attach the grommet for the oil sensor wires to
the rear panel
of
the control box.
_-
t
I
Fig.
10-43
(4) Fasten the one earth cable with
8
C#I
terminal
drawn
out from the control box
to
the rear cover leg.
8C#Ix25mmbolt
...
lpce.
Fasten the other earth cable with 6i"terminal to the unpainted bolt hole on the frame.
(See Fig.1044.)
11.8
-
13.7
N-m
120
-
140
kgm
8.7
-
10.1
ft-lb
Control
box
1
6#
Terminal
8#
Terminal
m
Fig.
10-44
-
47-
