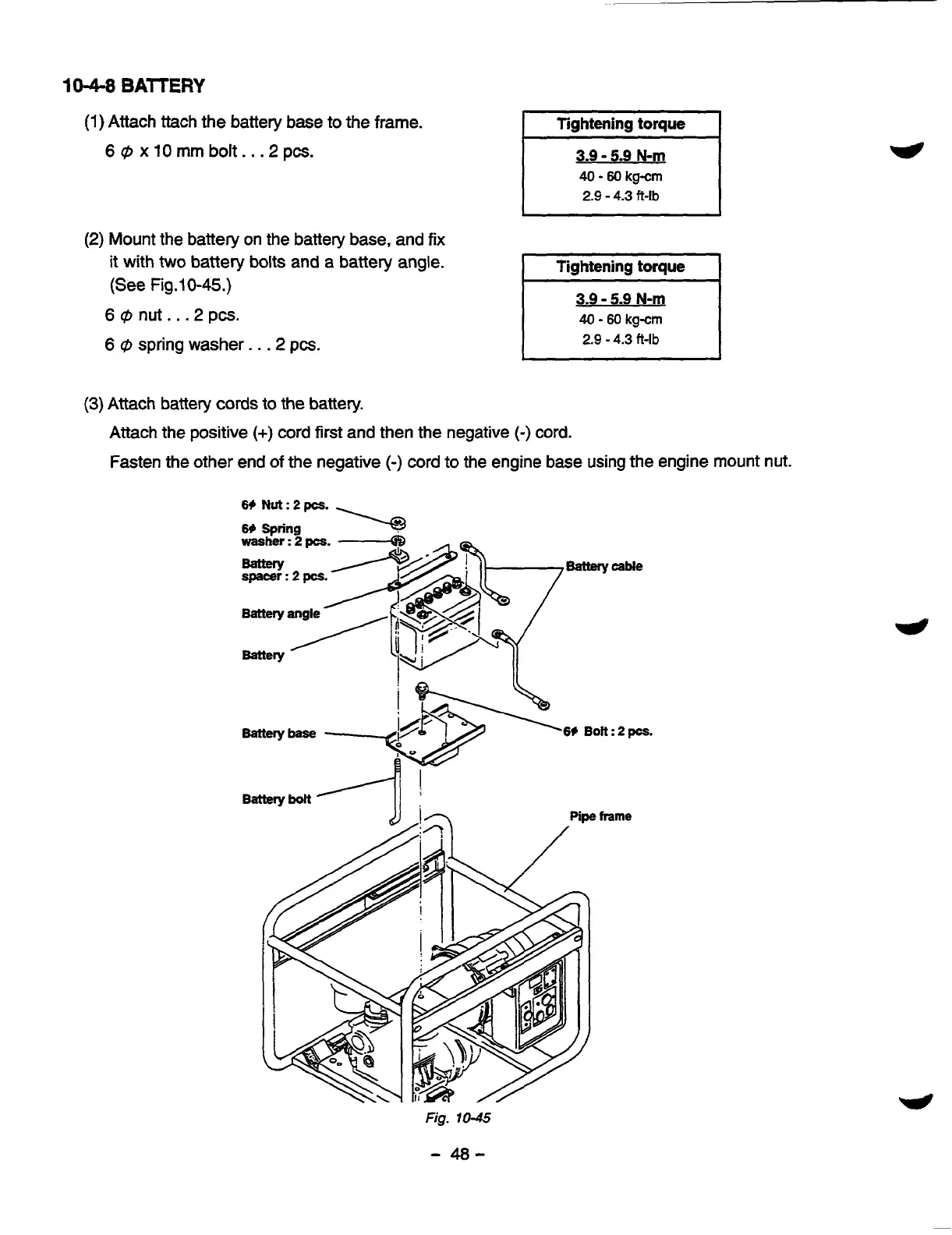

10-4-8 BAlTERY
(1) Attach ttach the battery base to the frame.
6cpxlOmmbolt
... 2pcs.
(2) Mount the battery on the battery base, and fix
it with two battery bolts and a battery angle.
(See Fig.
1 0-45 .)
6Qn ut... 2pcs.
6 @ spring washer. . .2 pcs.
3.9 - 5.9 N-m
40 - 60 kg-cm
2.9 - 4.3 ft-lb
I Tightening torque I
3.9 - 5.9 N-m
40 - 60 kgcm
2.9 - 4.3 ft-lb
(3) Attach battery cords to the battery.
Attach the positive
(+) cord first and then the negative (-) cord.
Fasten the other end of the negative (-) cord to the engine base using the engine mount nut.
Battery cable
frame
Fig. 10-45
- 48-
