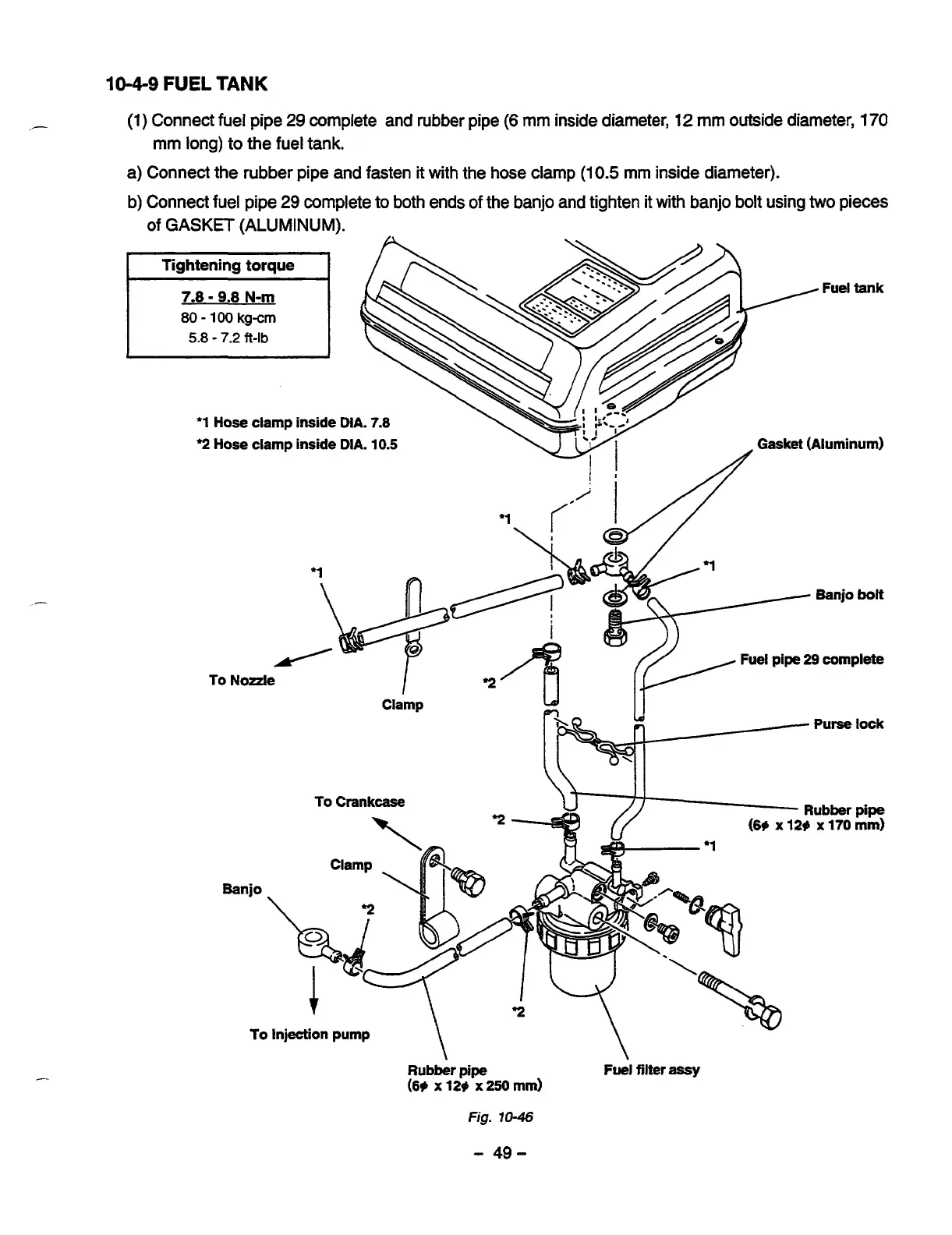

10-4-9 FUEL TANK
(1) Connect fuel pipe 29 complete and rubber pipe (6 mm inside diameter, 12 mm outside diameter, 170
a) Connect the rubber pipe and fasten it with the hose clamp (1 0.5 rnm inside diameter).
b) Connect fuel pipe
29 complete to both ends of the banjo and tighten it with banjo bolt using two pieces
mm long) to the fuel tank.
of GASKET (ALUMINUM).
Fuel tank
80 - 100 kg-cm
5.8 - 7.2 ft-lb
*1 Hose clamp inside DIA. 7.8
2 Hose clamp inside DIA. 10.5 Gasket (Aluminum)
Fuel pipe 29 complete
To Nozzle
Rubber pipe
(69
x 129 x 170 mm)
Clamp
.
\
2
I
-\
To Injection pump
\ \
Rubber pipe Fuel filter assy
(6# x 12# x 250 mm)
Fig. 10-46
- 49-
