Robin RGV2800 Service Manual

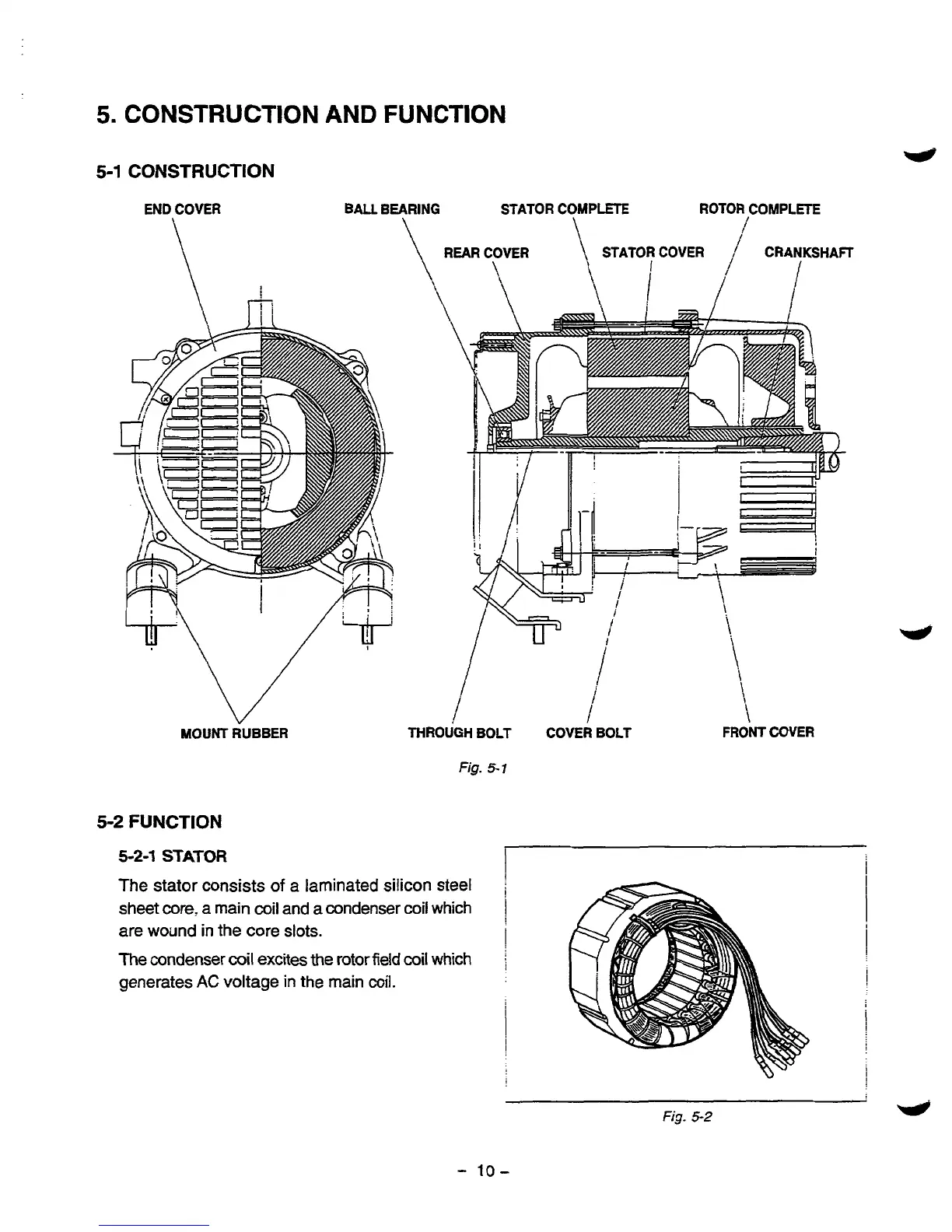

5. CONSTRUCTION AND FUNCTION
5-1 CONSTRUCTION
END COVER
\
\
!
BALL BEARING STATOR COMPLETE ROTOR COMPLETE
\
\
I
\
i
/
REAR COVER \, STATORCOVER CRANKSHAFT
\\ ',
\
'1
'\ \ i i
MOUNT RUBBER
jl I !/ :i II
i
I
I
I
I I
//
I
THROUGH BOLT COVER BOLT
Fig. 5-1
5-2 FUNCTION
5-2-1 STATOR
The stator consists of a laminated silicon steel
sheet core, a main coil and
a condenser coil which
are wound in the core slots.
The condenser coil excites the rotor field
coil which
generates
AC voltage in the main coil.
I
1
\
\
FRONT COVER
Fig. 5-2
w
- 10-
