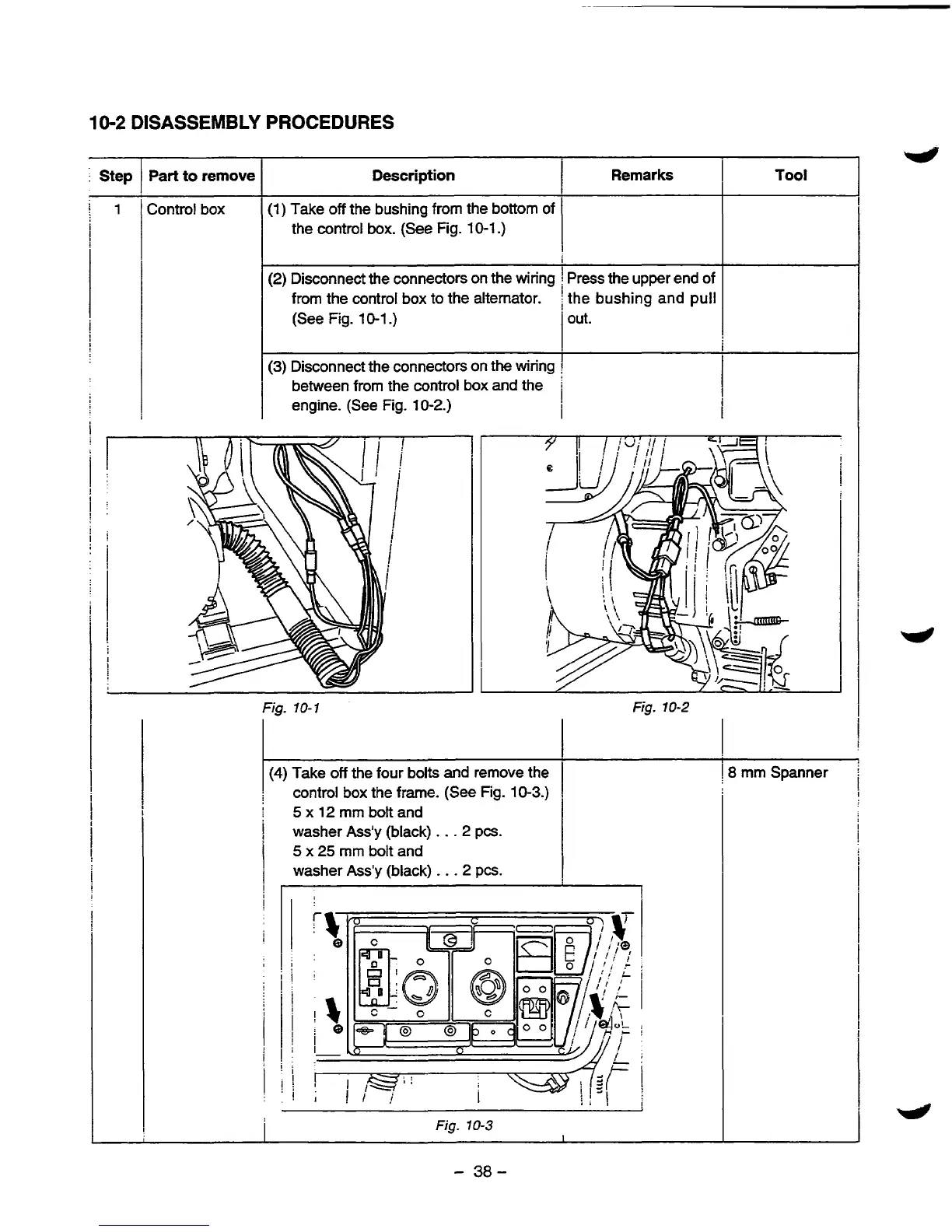

10-2 DISASSEMBLY PROCEDURES
: Step
1
Part to remove
Zontrol box
Description I Remarks I Tool
I
~~
(1) Take off the bushing from the bottom of
the control box. (See Fig. 10-1 .)
I
I
(2) Disconnect the connectors on the wiring Press the upper end of
from the control box to the alternator. , the bushing and pull
(See Fig. 10-1
.) out.
(3) Disconnect the connectors on the wiring
between from the control box and the
!
engine. (See Fig. 10-2.)
!
i
Fig. 10- 1 Fig. 10-2
control box the frame. (See Fig. 10-3.)
5 x 12 mrn bolt and
washer
Ass'y (black) . . .2 pcs.
5 x 25 mrn bolt and
washer
Ass'y (black) . . . 2 pcs. !
-- .
i Fig. 10-3
- 38-
