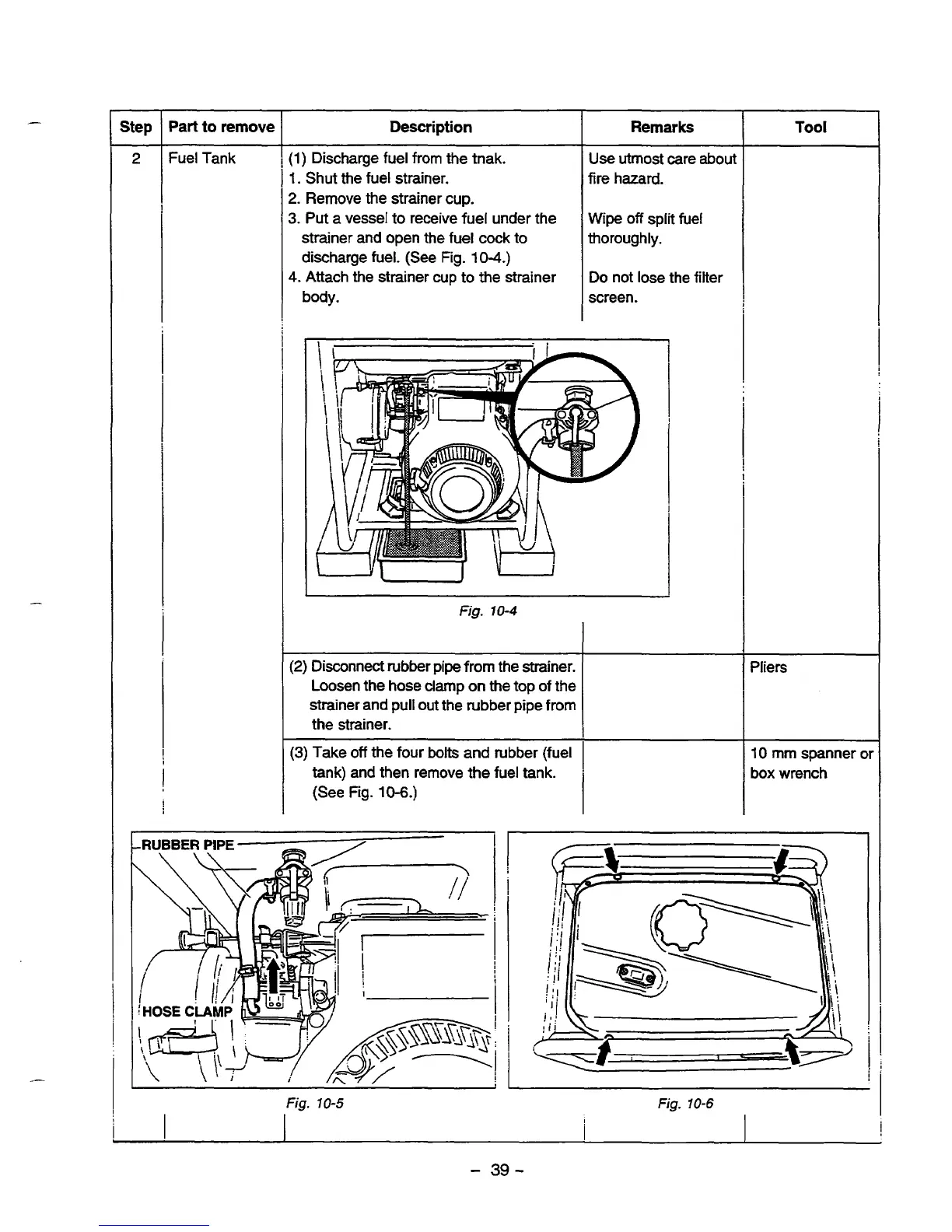

Step
2
-
Part
to
remove
Fuel Tank
Description
(1)
Discharge fuel from the tnak.
1.
Shut the fuel strainer.
2.
Remove the strainer cup.
3.
Put a vessel to receive fuel under the
strainer and open the fuel cock to
discharge fuel. (See Fig.
104.)
4.
Attach the strainer cup to the strainer
Remarks
fire hazard.
Wipe
off
split fuel
thoroughly.
Do not lose the filter
body. screen.
-I
-
Tool
I
(2)
Disconnect rubber pipe from the strainer. /Pliers
Loosen the hose clamp on the top of the
strainer and pull out the rubber pipe from
the strainer.
i
(3)
Take
off
the four bolts and tubber (fuel
i
10
mrn
spanner
or
tank) and then remove the fuel tank. box wrench
(See Fig.
10-6.)
Fig.
70-5
Fig.
10-6
I
I
-
39-
