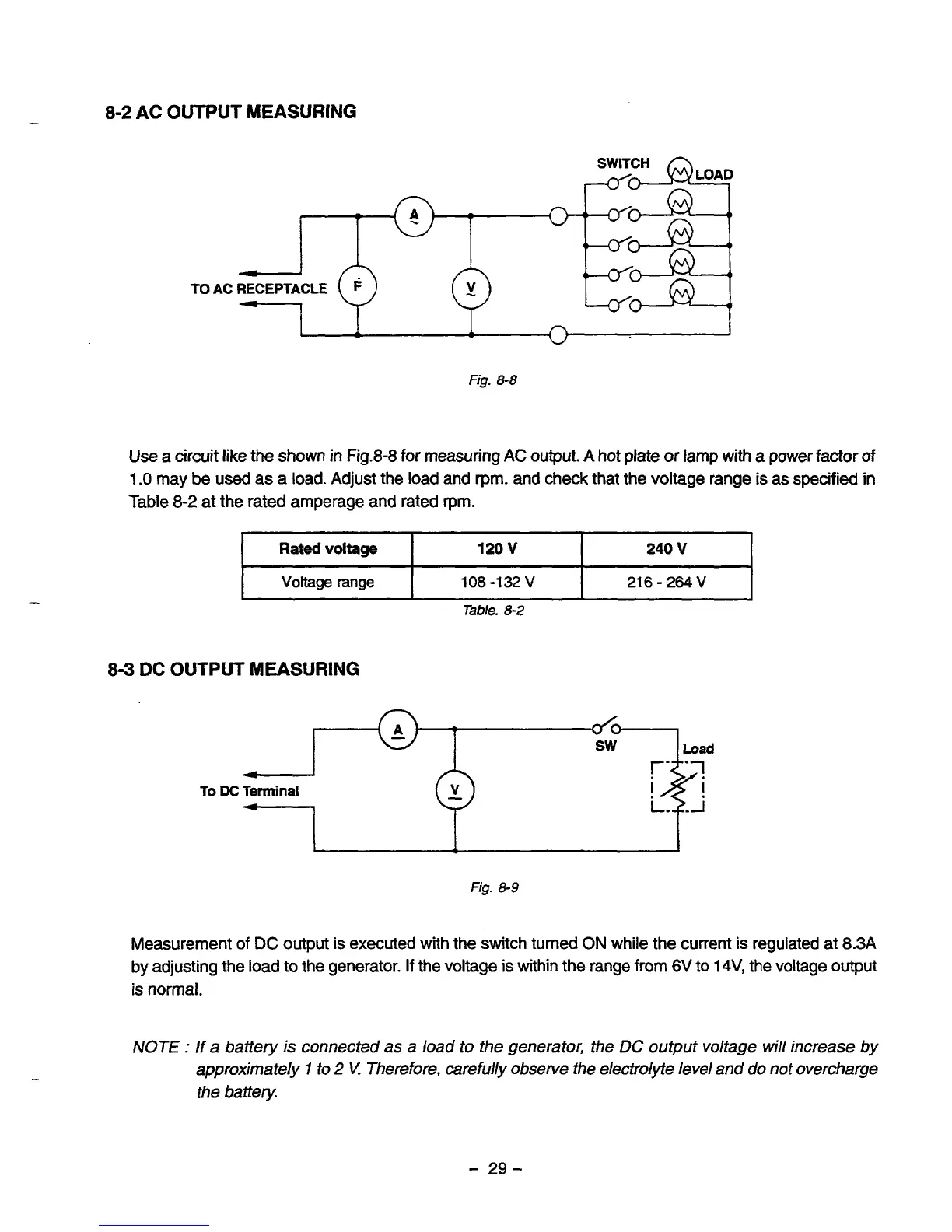

8-2
AC
OUTPUT
MEASURING
Fig.
8-8
Use a circuit like the shown in Fig.8-8
for
measuring
AC
output.
A
hot plate
or
lamp with
a
power
factor
of
1
.O
may be used as
a
load. Adjust the load and
rpm.
and check that the voltage range
is
as specified in
Table
8-2
at the rated amperage and rated
rpm.
I
I
Rated
voltage
120
v
240
V
I
Voltage range
I
108-132V
I
216
-264V
I
Table.
8-2
8-3
DC
OUTPUT
MEASURING
I
1
I
Measurement
of
DC
output is executed with the switch turned
ON
while the current
is
regulated at
8.3A
by adjusting the load to the generator.
If
the voltage
is
within the range
from
6V
to
14V,
the voltage
output
is
normal.
NOTE
:
If
a
battery
is
connected
as
a
load to
the
generator, the
DC
output voltage
will
increase
by
approximately
1
to
2
V.
Therefore, carefully observe the electrolyte level and
do
not overcharge
the battery.
-
29-
