Robin RGV2800 Service Manual
4
of 1
of 1 rating
67 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
(4)

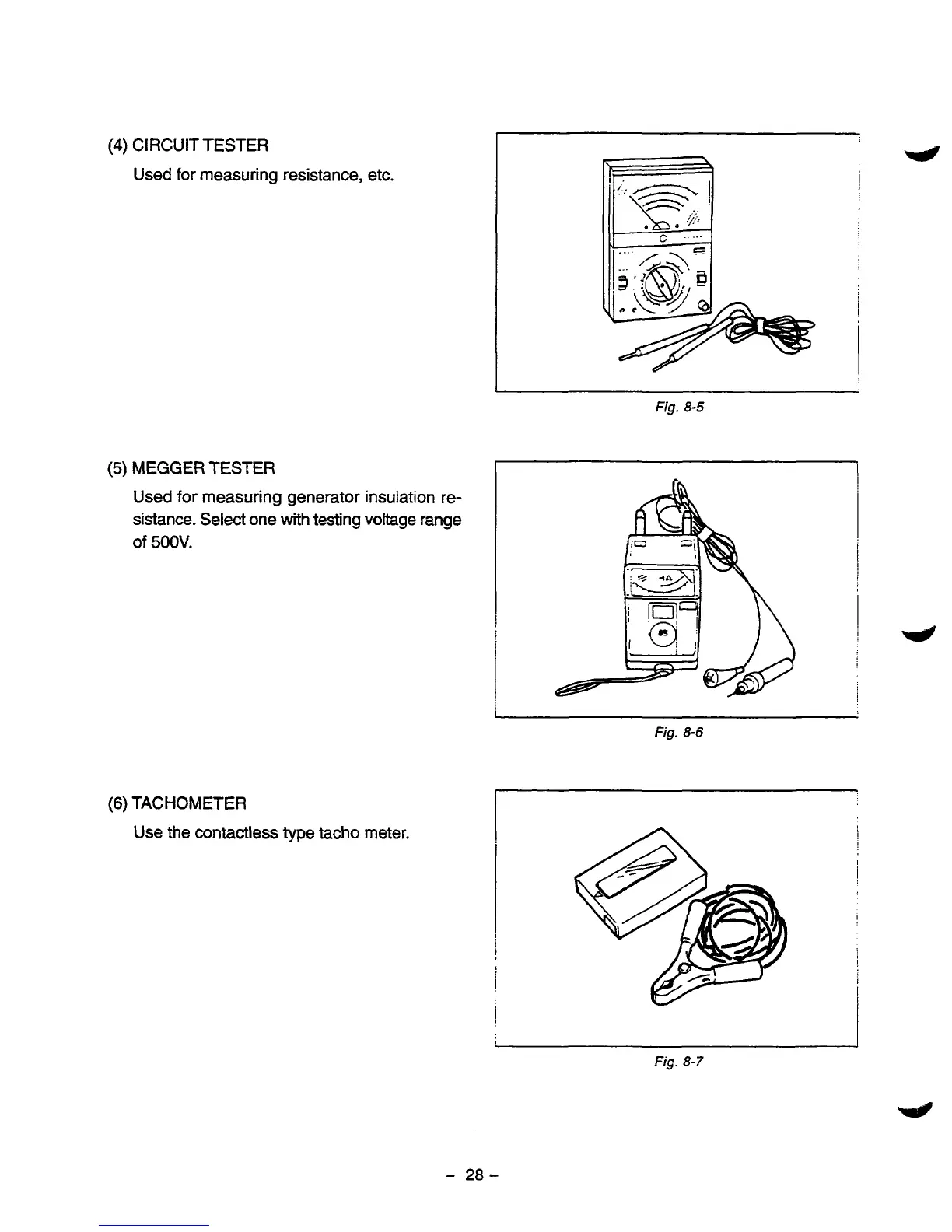

CIRCUIT TESTER
Used
for measuring resistance, etc.
Fig.
8-5
(5)
MEGGER
TESTER
I
Used
for
measuring generator insulation
re-
sistance. Select one with testing vottage range
of
500V.
(6)
TACHOMETER
Use the contactless
type
tacho meter.
Fig.
8-6
Fig.
8-7
-
28-
30
32
Table of Contents
Default Chapter
2
Table of Contents
2
1 Specifications
4
2 Perfomance Curves
6
3 Features
8
Brushless Alternator
8
Condenser Type Voltage Regulator
8
Oil Sensor
8
Quiet Operation
8
No Radio Noise
8
Large Fueltank
8
Rugged Tubular Frame
8
Compact and Light Weight
8
Minimal Maintenance
9
Long-Life Durability
9
4 General Description
10
External View
10
Control Panel
11
Location
12
Serial Number
12
Specification Number
12
5 Construction and Function
13
Construction
13
Function
13
Generator Operation
19
Oil Sensor
22
6 Safety Precautions
25
7 Range of Applications
26
8 Measuring Procedures
29
Measuring Instruments
29
Ac Output Measuring
32
DC Output Measuring
32
Measuring Insulation Resistance
33
9 Checking Functional Members
35
Voltmeter
35
Ac Receptacles
35
No-Fuse Breaker
35
Stator
36
Rotor Assembly
37
Condenser
37
Diode Rectifier
38
Oil Sensor
39
10 Disassembly and Assembly
40
PREPARATION and PRECAUTIONS
40
Disassembly Procedures
41
Assembly Procedures
41
CHECKING, DISASSEMBLY and REASSEMBLY O F the FRONT PANEL
54
11 Troubleshooting
56
No Ac Output
56
Ac Voltage
59
Ac Voltagei Snormal at No.load, but the Load Cannot be Applied
59
No DC Output
60
Idle Control(Opti0Nal Equipment)
61
12 Wiring Diagram
64
