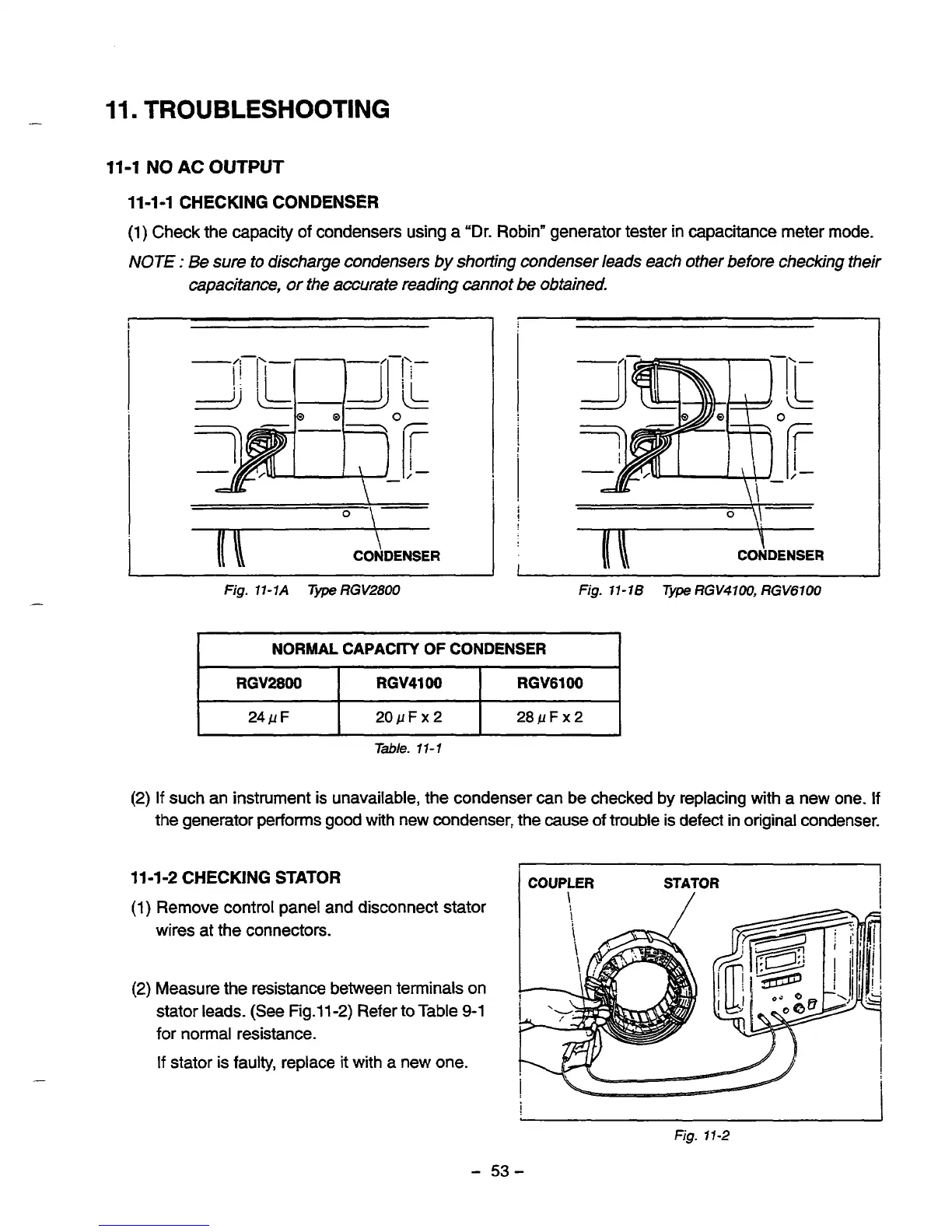

11.
TROUBLESHOOTING
11 -1
NO
AC
OUTPUT
11-1-1
CHECKING CONDENSER
(1)
Check the capacity of condensers using
a
“Dr. Robin” generator tester
in
capacitance meter mode.
NOTE
:
Be sure
to
discharge condensers
by
shorting condenser leads each other before checking their
capacitance, or the accurate reading cannot
be
obtained.
c-
jL
yr
/-
CONDENSER
\1
Y
CONDENSER
I
I
1;
Fig.
11-1A
Ty~e
RGV2800
Fig.
11-18
T~pe
RGV4100,
RGV6100
NORMAL
CAPACITY
OF CONDENSER
RGV2800 RGV4100 RGV6100
I
24flF
28uFx2
20pFx2
Table.
11-1
(2)
If
such an instrument is unavailable, the condenser can be checked
by
replacing with a new one.
If
the generator performs good with new condenser, the cause
of
trouble is defect in original condenser.
11
-1
-2
CHECKING
STATOR
(1) Remove control panel and disconnect stator
wires
at the connectors.
(2) Measure the resistance between terminals on
stator leads. (See Fig.11-2) Refer toTable
9-1
for normal resistance.
If stator is faulty, replace
it
with
a
new one.
I
COUPLER
STATOR
!
i
\
/
I
I
Fig.
11-2
-
53-
