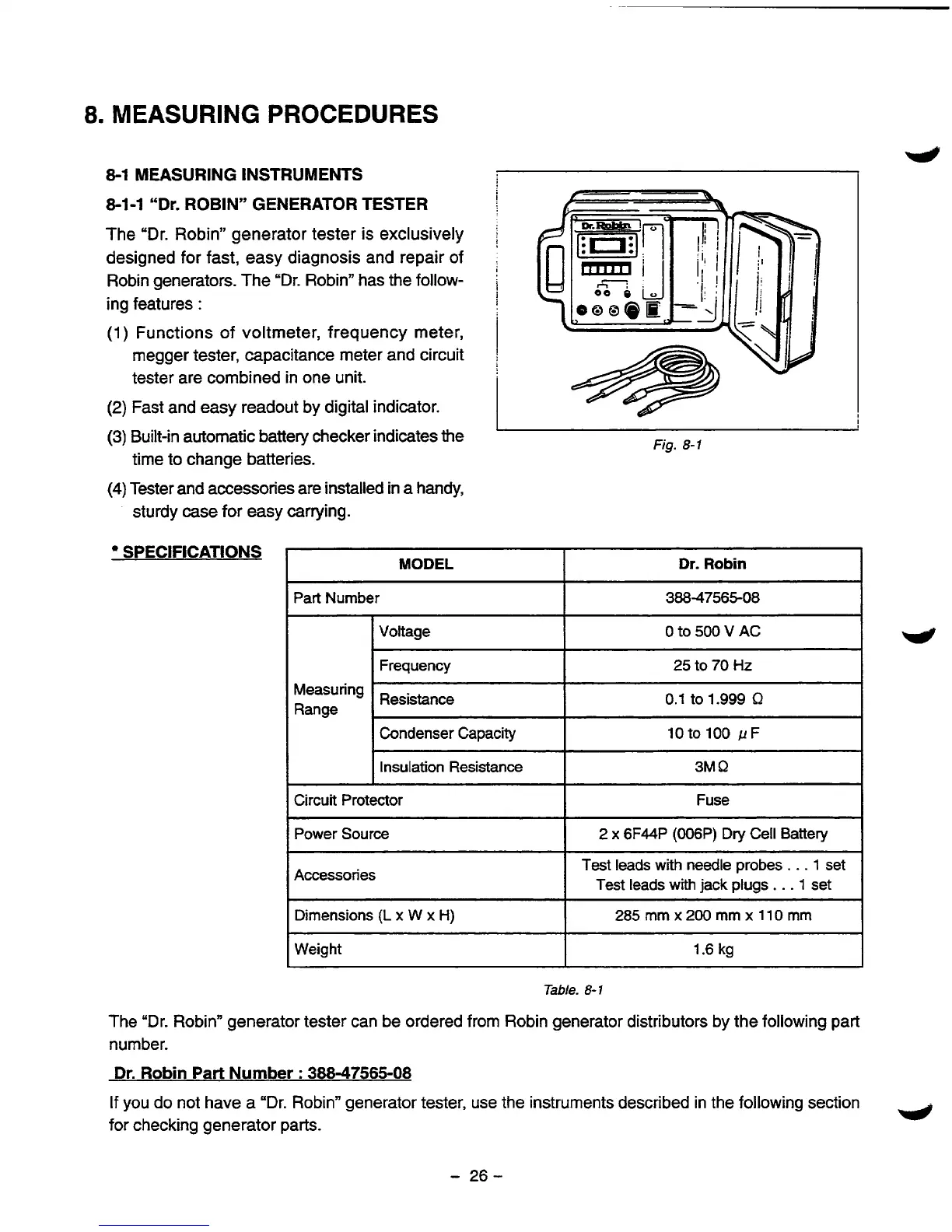

8.
MEASURING
PROCEDURES
8-1
MEASURING INSTRUMENTS
8-1-1
“Dr. ROBIN” GENERATOR TESTER
The “Dr. Robin” generator tester is exclusively
designed for fast, easy diagnosis and repair of
Robin generators. The “Dr. Robin” has the follow-
ing features
:
(1)
Functions of voltmeter, frequency meter,
megger tester, capacitance meter and circuit
tester are combined in one unit.
(2)
Fast and easy readout by digital indicator.
(3)
Built-in automatic battery checker indicates the
time to change batteries.
(4)
Tester and accessories are installed in a handy,
sturdy case for easy carrying.
SPECIFICATIONS
I
MODEL
I
Dr.
Robin
I
IiNumber
I
388-47565-08
1
Measuring
Range
Voltage
3M
Q
Insulation Resistance
10
to
100
pF
Condenser Capacty
0.1
to
1.999
n
Resistance
25
to 70
Hz
Frequency
d
0
to
500
V
AC
Circuit Protector
Fuse
Power Source
2
x
6F44P (006P)
Dry
Cell
Battery
Accessories
Dimensions
(L
x
W
x
H)
Weight
285
mm
x200
mm
x
110
mm
1.6
kg
Test leads with needle probes
.
.
.
1
set
Test leads with jack
plugs
.
. .
1
set
Table.
8-7
The “Dr. Robin” generator tester can be ordered from Robin generator distributors by the following part
number.
Dr.
Robin
Part
Number
:
38847565-08
If
you do not have a “Dr. Robin” generator tester, use the instruments described in the following section
for checking generator parts.
