Robin RGV2800 Service Manual

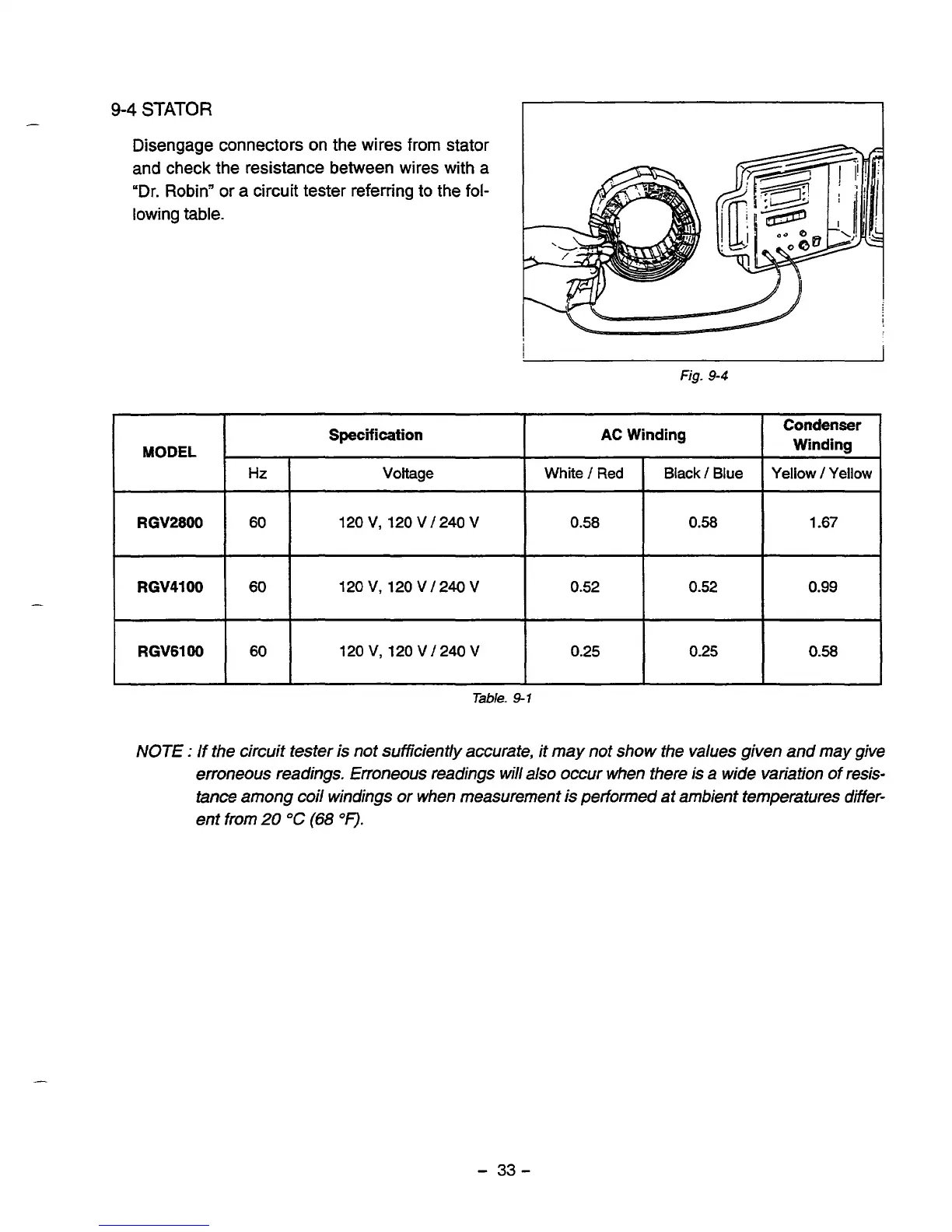

9-4 STATOR
Disengage connectors on the wires from stator
and check the resistance between wires with a
"Dr. Robin" or a circuit tester referring to the fol-
lowing table.
4
Fig. 9-4
~~
Specification
AC Winding
Condenser
Winding
MODEL
Hz Yellow I Yellow Black / Blue White I Red
Voltage
RGV2800
1.67
0.58
0.58
120 V, 120 VI240 V
60
RGV4100
0.99 0.52
0.52
120
v, 120 v/240 v 60
RGV6100 0.58 0.25 0.25
120 V, 120 V/240 V
60
Table. 9-1
NOTE : If the circuit tester is not sufficiently accurate, it may not show the values given and may give
erroneous readings. Erroneous readings
will also occur when there is a wide variation of resis-
tance among coil windings or when measurement is performed at ambient temperatures differ-
ent from
20 "C (68 "0.
- 33-
