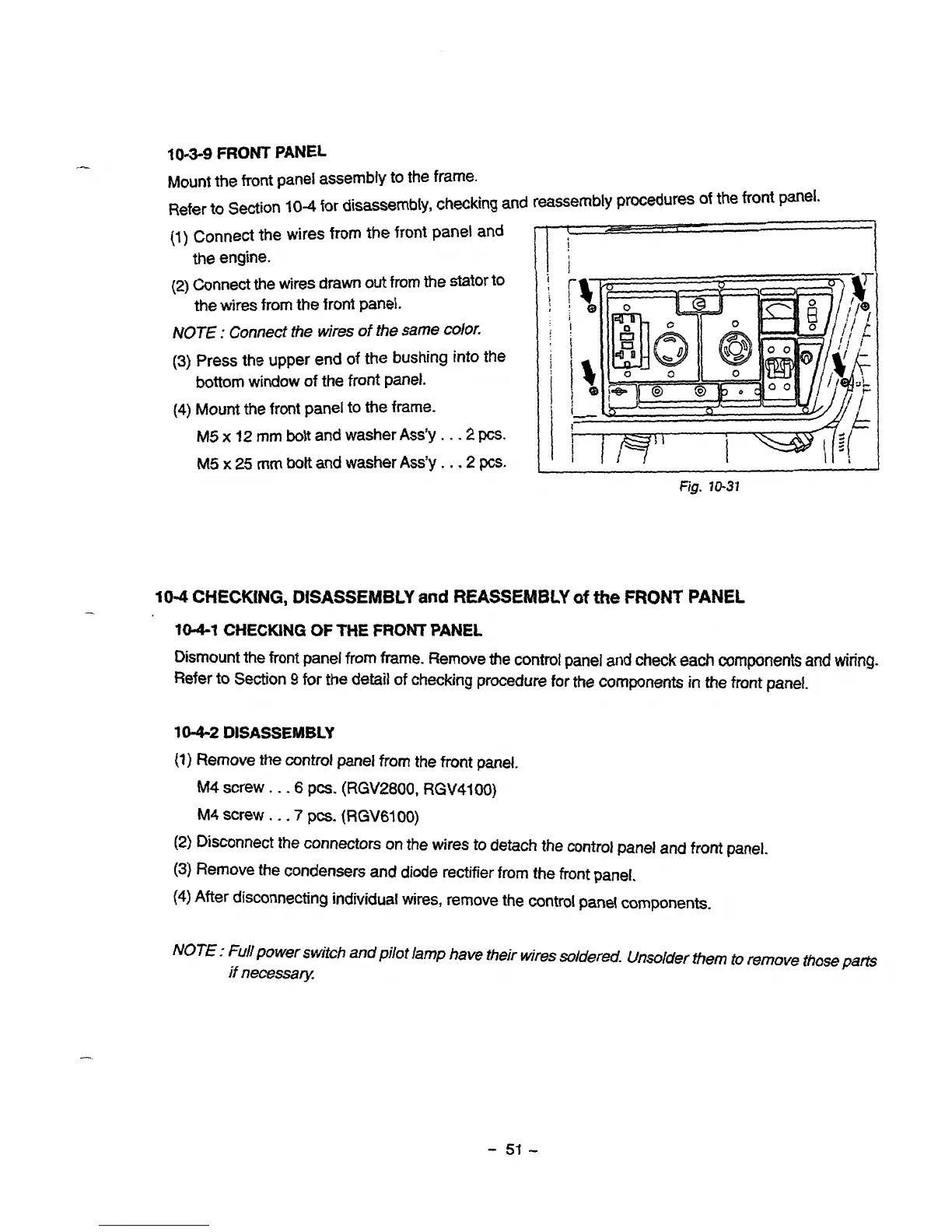

10-3-9
FRONT
PANEL
I
Mount
the
front panel assembly
to
the frame.
Refer
to
Section
10-4
for
disassembIy,
checking
and
reassembly procedures
of
the
front panel.
(I)
Connect
the
wires from
the
front
panel
and
(2)
Connect
the
wires
drawn
out
from the
stator
to
NOTE
:
Connect
the
wires
of
the
same
color.
(3)
Press
the
upper
end
of
the
bushing
into the
bottom
window
of
the front panel.
(4)
Mount
the front panel
to
the
frame.
the
engine.
the
wires
from
the
front
panel.
M5
x
12
mm
bolt
and
washer
Ass'y
.
.
.2
pcs.
M5
x
25
mm
bolt
and washer
Ass'y
.
.
.2
pcs.
L
Fig.
10-31
104
CHECKING,
DISASSEMBLY
and
REASSEMBLY
of
the
FRONT
PANEL
-
104-1
CHECKING
OF
THE
FRONT
PANEL
Dismount
the
front panel from frame. Remove
the
control
panel and
check
each
components
and
wiring.
Refer
to
Section
9
for the
detail
of
checking procedure
for
the
components
in
the
front
panel.
10-4-2
DISASSEMBLY
(1)
Remove
the
control
panel
from the front panel.
M4
screw.
.
-6
pcs.
(RGV2800, RGV4100)
M4
screw
.
.
.7
pcs.
(RGV6100)
(2)
Disconnect the connectors on the wires
to
detach
the control panel
and
front panel.
(3)
Remove the condensers and
diode
rectifier
from
the front panel.
(4)
After disconnecting individual wires, remove
the
control
panel
components.
-
51
-
