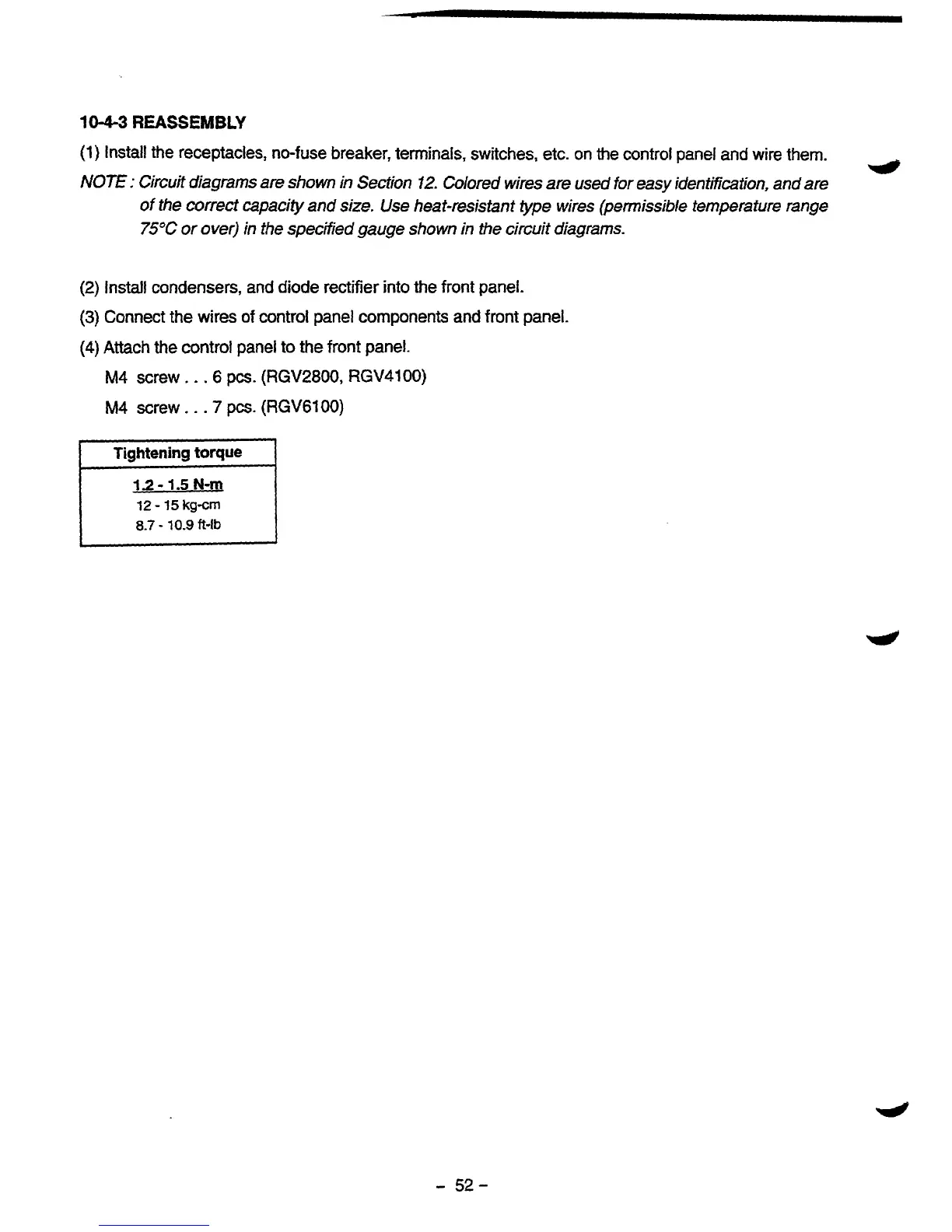

10-4-3
REASSEMBLY
(1)
Install the receptacles, no-fuse breaker, terminals, switches, etc.
on
the
control panel and
wire
them.
NOTE
:
Circuit diagrams are
shown
in Section
12.
Colored wires are
used
for
easy identification, and are
of
the correct capacity and
size.
Use heat-resistant type wires (permissible temperature range
75°C
or over)
in
the specified
gauge
shown in the circuit diagrams.
4
(2)
Install
condensers, and diode rectifier
into
the front panel.
(3)
Connect
the
wires
of
control panel components
and
front
panel.
(4)
Attach
the
control panel to
the
front
panel.
M4
screw
.
.
.6
pcs.
(RGV2800,
RGV4100)
M4
screw.
.
.7
pa.
(RGV6100)
12
-
1.5
N-
12
-
15
kg-cm
8.7
-
10.9
fi-lb
-
52-
