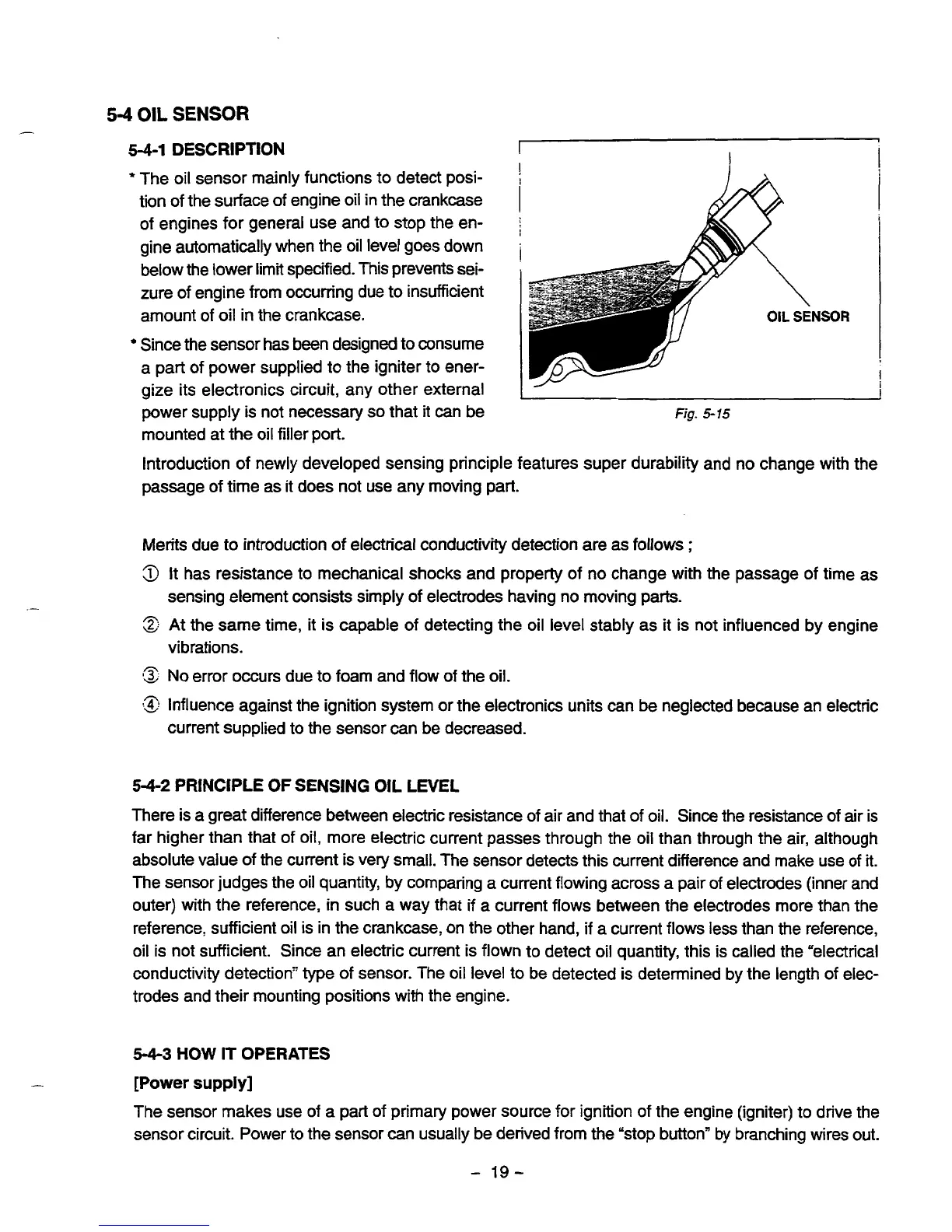

5-4
OIL
SENSOR
5-4-1
DESCRIPTION
*
The oil sensor mainly functions to detect posi-
tion of the surface of engine oil in the crankcase
of engines for general use and to stop the en-
gine automatically when the oil level goes down
below the lower limit specified. This prevents sei-
zure of engine from occurring due to insufficient
amount of oil
in
the crankcase.
Since the sensor has been designed to consume
a part of power supplied to the igniter to ener-
gize its electronics circuit, any other external
power supply is not necessary
so
that
it
can
be
mounted at the oil filler port.
Fig.
5-15
Introduction of newly developed sensing principle features super durability and no change with the
passage of time as it does not use any moving part.
Merits due to introduction of electrical conductivity detection are as follows
;
%,
It has resistance to mechanical shocks and property of no change with the passage of time as
3.
At the same time,
it
is capable of detecting the
oil
level stably as
it
is not influenced by engine
sensing element consists simply of electrodes having no moving parts.
vibrations.
No
error
occurs
due to foam and flow of the oil.
n
!z
Influence against the ignition system or the electronics units can be neglected because an electric
current supplied to the sensor can be decreased.
542
PRINCIPLE
OF
SENSING
OIL
LEVEL
There is a great difference between electric resistance of air and that of oil. Since the resistance of air is
far higher than that of oil, more electric current passes through the oil than through the air, although
absolute value of
the
current is very small. The sensor detects this current difference and make use of it.
The sensor judges the
oil
quantity, by comparing a current flowing across
a
pair of electrodes (inner and
outer) with the reference, in such a way that
if
a current flows between the electrodes more than the
reference, sufficient oil is in the crankcase, on the other hand,
if
a current flows less than the reference,
oil is not sufficient. Since an electric current is flown to detect oil quantity, this is called the ”electrical
conductivity detection” type of sensor. The oil level to be detected is determined by the length of elec-
trodes and their mounting positions with the engine.
5-4-3
HOW
IT
OPERATES
[Power
supply]
The sensor makes use of a part of primary power source for ignition
of
the engine (igniter) to drive the
sensor circuit. Power to the sensor can usually be derived from the %top button”
by
branching wires out.
-
19-
