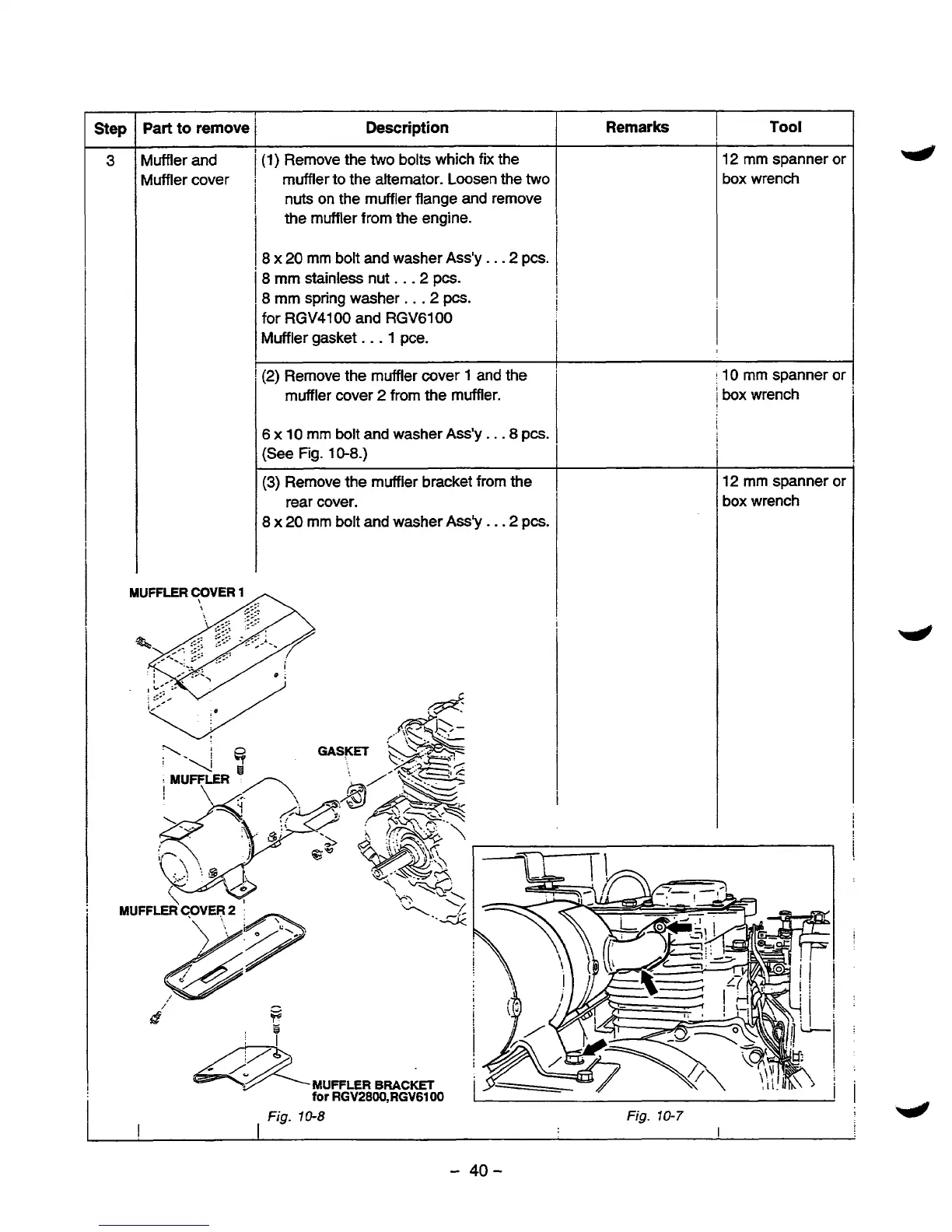

Robin RGV2800 Service Manual

Part to remove
Muffler and
Muffler cover
Description
(1) Remove the two bolts which fix the
muffler to the alternator. Loosen the
two
nuts on the muffler flange and remove
the muffler from the engine.
8 x 20 mm bolt and washer Ass'y . . .2 pcs.
8 rnm stainless nut. . -2 pcs.
8 mm spring washer. . .2 pcs.
for RGV4100 and RGV6100
Muffler gasket
. . . 1 pce.
(2) Remove the muffler cover 1 and the
muffler cover
2 from the muffler.
6
x 10 mrn bolt and washer Ass'y . . .8 pcs.
(See Fig. 10-8.)
(3) Remove the muffler bracket from the
8 x 20 mm bolt and washer Ass'y . . .2 pcs.
rear cover.
MUFFLER COVER 1 A
d"
MUFFLER BRACKET
for RGV2800,RGV6100
t
t
I
Remarks I Tool
12 mm spanner or
box wrench
I
it
I
i
-
1
t
IO mm spanner or
mx wrench
12 mm spanner or
)ox wrench
Fig. 10-7
I I
