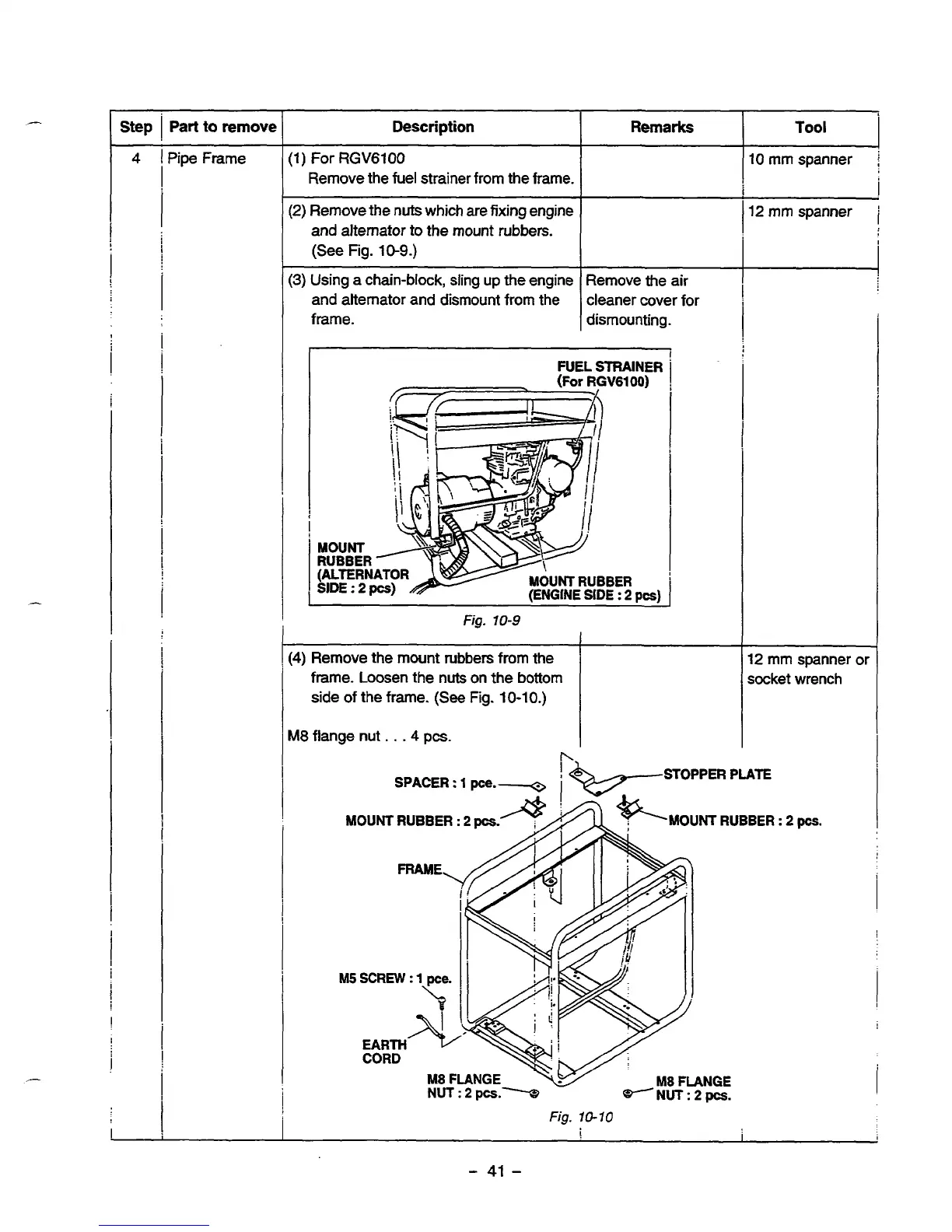

Robin RGV2800 Service Manual

step I Part to remove
I
I
! Pipe Frame
I
I
I
I
I
I I
i
1
I
!
I
i
i
Description
(1) For RGV6100
Remove the
fuel strainer from the frame.
(2) Remove the nuts which are fixing engine
and alternator to the mount
rubbers.
(See Fig. 10-9.)
(3) Using a chain-block, sling up the engine
and alternator and dismount from the
frame.
Remarks
Remove the air
cleaner cover for
dismounting.
[4) Remove the mount rubbers from the
frame. Loosen the
nuts on the bottom
side of the frame.
(See Fig. 10-10.)
M8 flange nut. . .4 pcs. I
b.
I
Tool I
10 rnm spanner
i
12 mm spanner 1
~~
-
12 mm
socket
SPACER : 1 pce.-e 1
STOPPER PLATE
MOUNT RUBBER : 2 pcs.
M8 FLANGE
NUT
: 2 pcs.7 vNUT:2pcs.
spanner or
wrench
:2pcs.
Fig. 10-70
- 41 -
