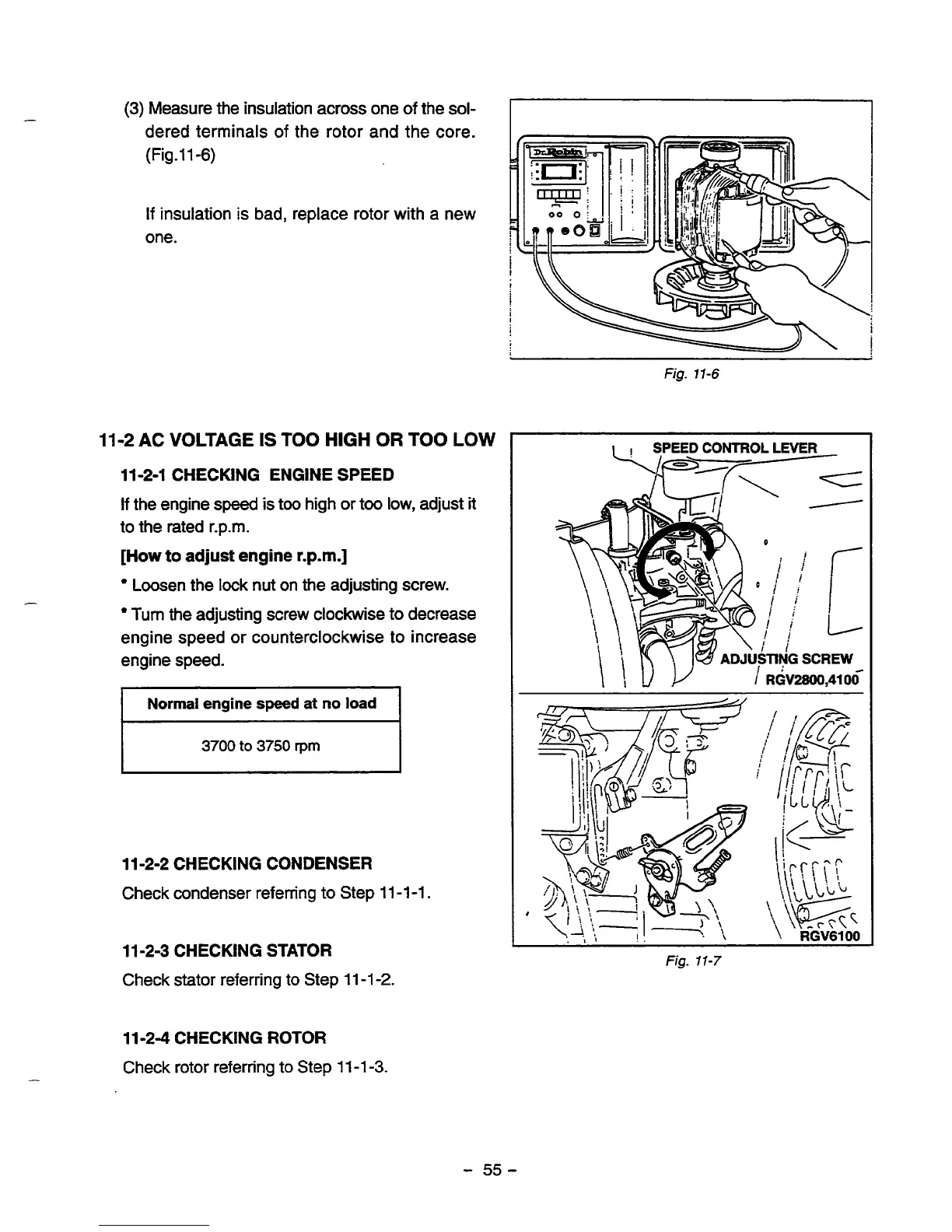

(3)
Measure the insulation across one
of
the
sol-
dered terminals
of
the rotor and the core.
(Fig.11-6)
If
insulation
is
bad, replace rotor with a new
one.
Fig.
11-6
11
-2
AC VOLTAGE
IS
TOO
HIGH
OR
TOO
LOW
11-2-1 CHECKING ENGINE SPEED
If
the engine
speed
is
too
high or
too
low, adjust
it
to the rated r.p.m.
[How
to
adjust
engine r.p.m.1
Loosen the lock nut on the adjusting screw.
Turn the adjusting screw clockwise to decrease
engine speed or counterclockwise
to
increase
engine speed.
Normal
engine
speed
at
no
load
I
3700
to
3750
rpm
11-2-2 CHECKING CONDENSER
Check condenser referring to Step
11
-1-1.
11-2-3 CHECKING STATOR
Check stator referring to Step
11
-1
-2.
\f=??~"--
SPEED CONTROL LEVER
L
Fig.
11-7
11
-2-4
CHECKING ROTOR
Check rotor referring to Step
11
-1
-3.
-
55-
To Next Page
