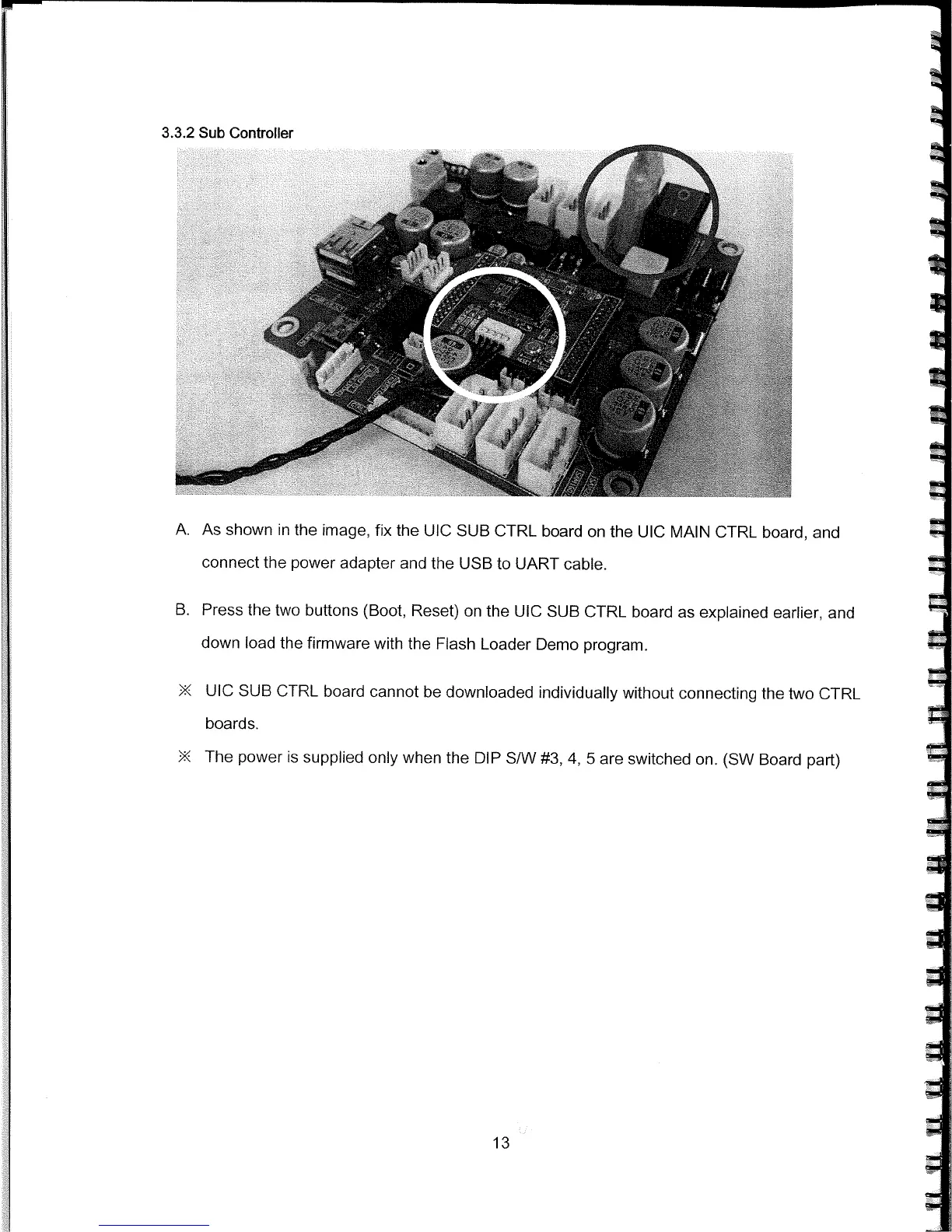

3.3.2 Sub Controller
A.
As shown in the image, fix the UIC SUB CTRL board on the UIC MAIN CTRL board, and
connect the power adapter and the USB to UART cable.
B.
Press the two buttons (Boot, Reset) on the UIC SUB CTRL board as explained earlier, and
down load the firmware with the Flash Loader Demo program.
UIC SUB CTRL board cannot be downloaded individually without connecting the two CTRL
boards.
The power is supplied only when the DIP S/W #3, 4, 5 are switched on. (SW Board part)
13
