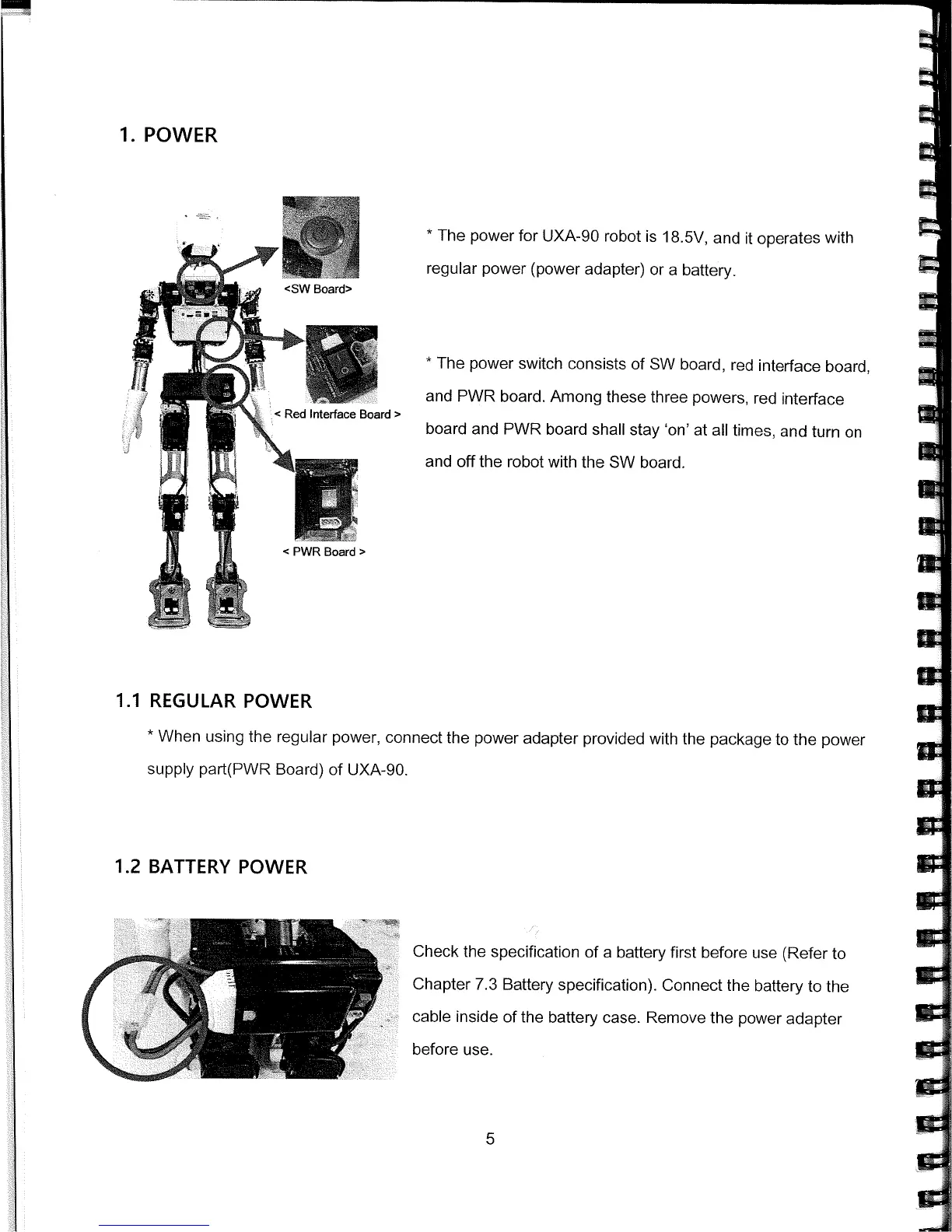

1. POWER
*
The power for UXA.90 robot is 18.5V, and it operates with
regular power (power adapter) or a battery.
*
The power switch consists of SW board, red interface board,
and PWR board. Among these three powers, red interface
wd>
board and PWR board shall stay 'on' at all times, and turn on
and off the robot with the SW board.
1.1 REGULAR POWER
*
When using the regular power, connect the power adapter provided with the package to the power
supply part(FWR Board) of UXA-90.
1.2 BATTERY POWER
Check the specification of a battery first before use (Refer to
Chapter 7.3 Battery specification). Connect the battery to the
cable inside of the battery case. Remove the power adapter
before use.
5
