RoboBuilder UXA-90 Light - 4 Sam ID Setting; Sam Interface Single Board Explanation

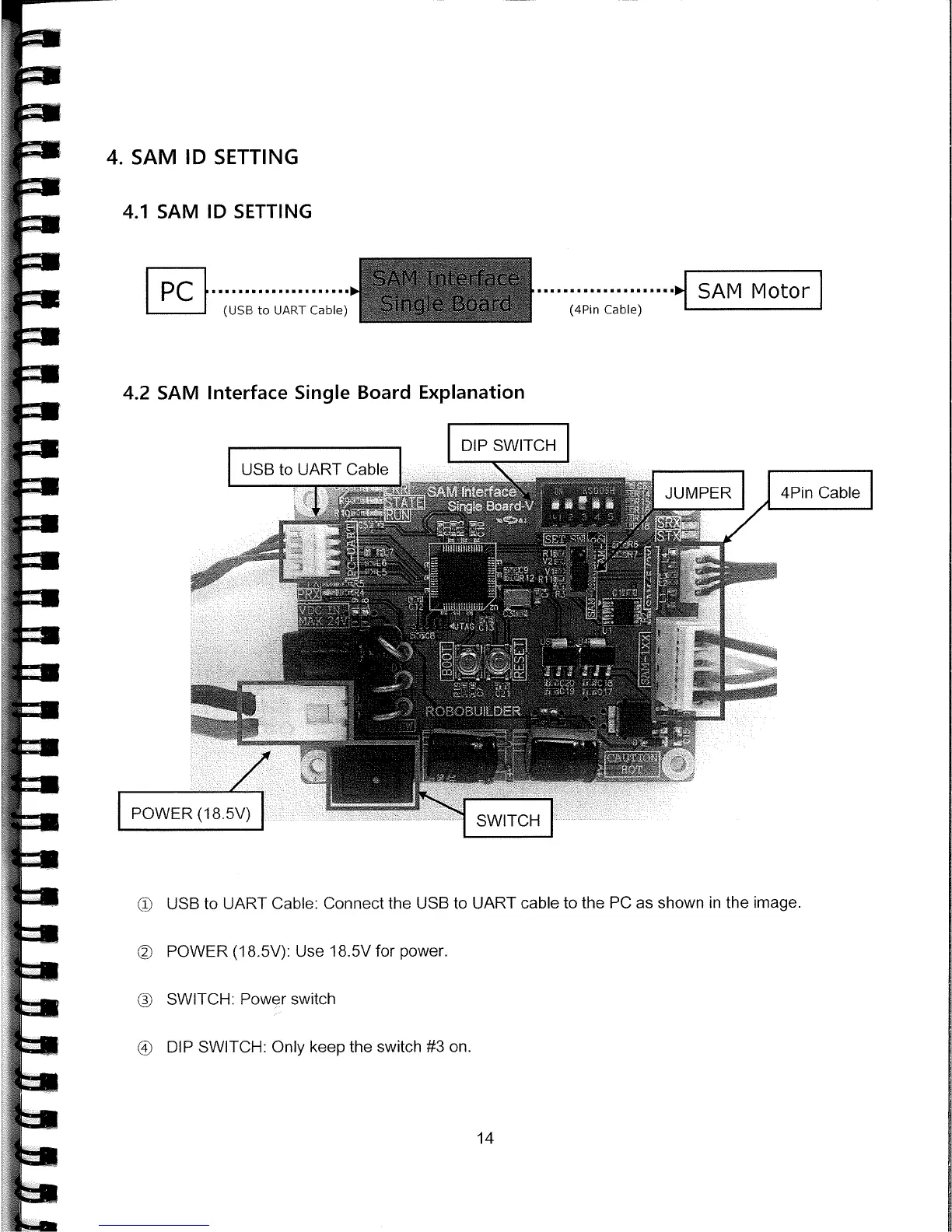

4. SAM ID SETTING
4.1 SAM ID SETTING
LUMiJIJJ UAR T J1 Ca ble )
1IJ1IA1
4.2 SAM Interface Single Board Explanation
©
USB to UART Cable: Connect the USB to UART cable to the PC as shown in the image.
©
POWER (1 8.5V): Use 18.5V for power.
©
SWITCH: Power switch
@
DIP SWITCH: Only keep the switch #3 on.
14
