Robotiq 3-Finger Adaptive Robot Gripper Instruction Manual
Robotiq inc. © 2008 - 2014 38
4.2 Status LEDs
Three status LED lights provide general information about the 3-Finger Adaptive Robot Gripper status. Figure 4.2.1
shows the LEDs and their locations.

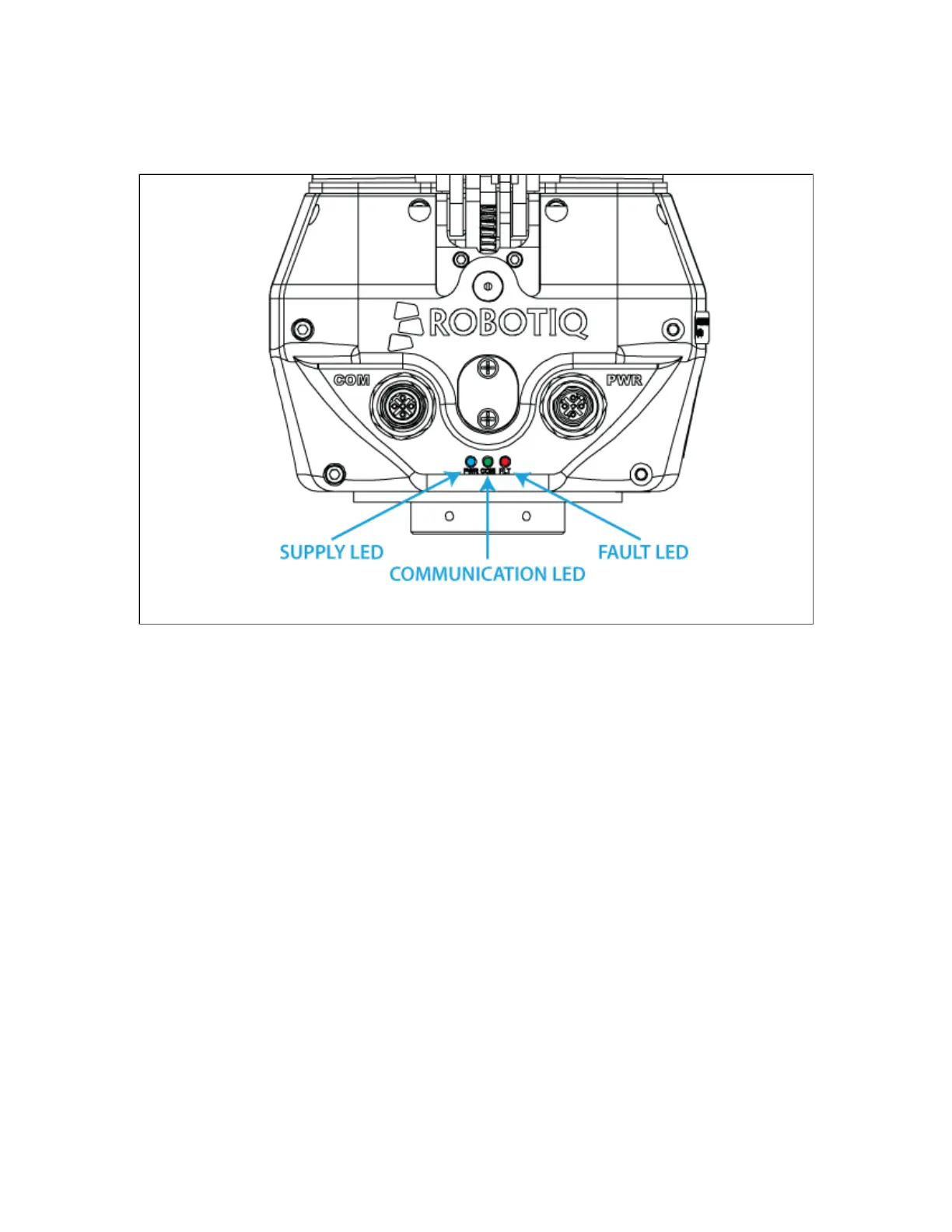

Figure 4.2.1 : Status LEDs.
