3.5.1 Power connection
Here is the way the Gripper should be connected to a power source (Figure 3.5.1.1).

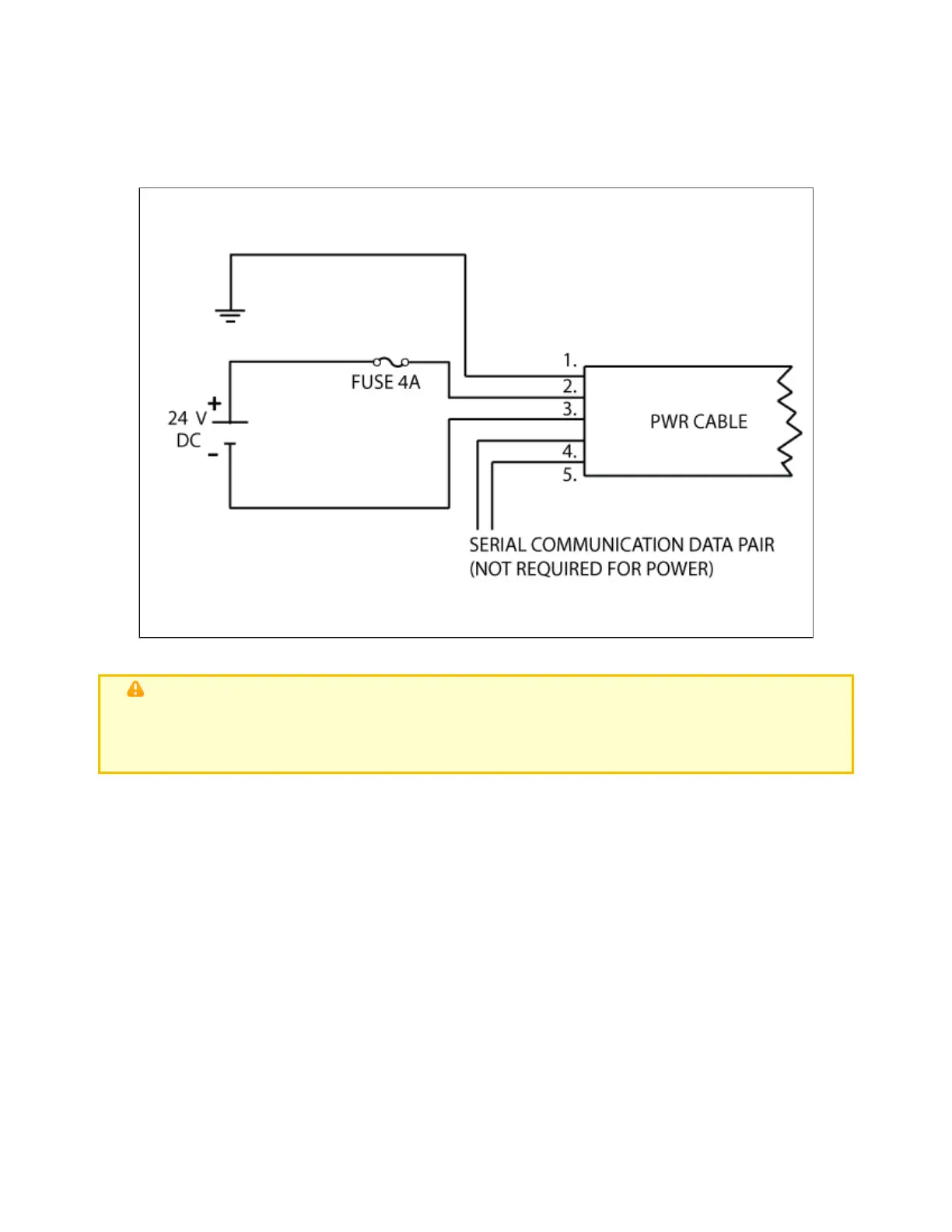

Figure 3.5.1.1 : Power connection diagram of the 3-Finger Adaptive Robot Gripper.
Caution
The 4A fuse is external to the Gripper. It is not provided by Robotiq and the user is responsible
for proper installation.
The pin-out of the power connectors is detailed in Figure 3.5.1.2.
