Robotiq Hand-E Gripper Instruction Manual

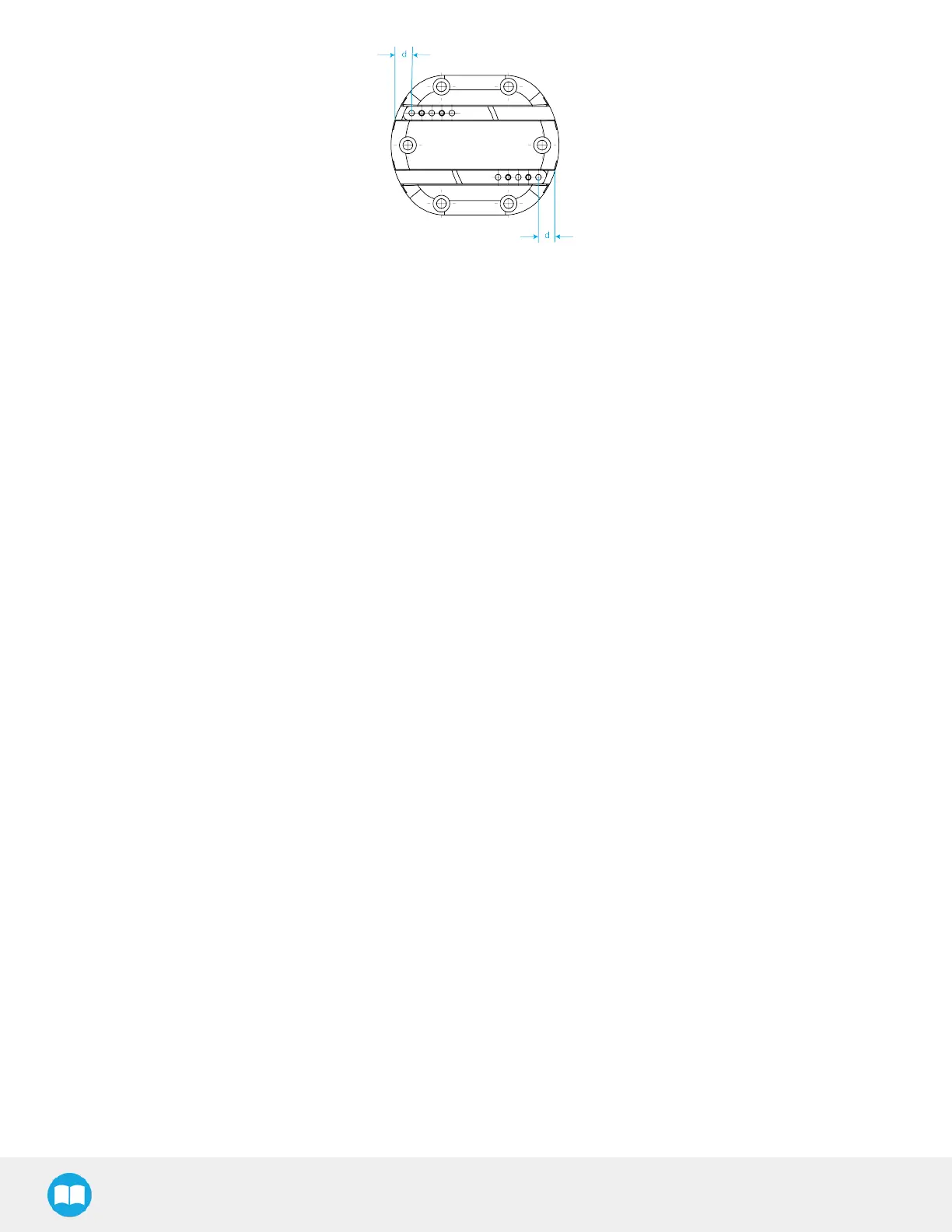

Fig. 6-1: Distance d: distance between racks and gripper frame.
12. Secure the rack housing using the six (6) M4screws. Apply low strength thread locker to the M4 screw threads.
13. Put the gripper back on the coupling and secure it with the four (4) M5-0.8 x 25mm screws and tooth lock washers.
