Robotnik SUMMIT XL - 3.4 Terminals & Fuses


RBTNKDOC160609A
SystemElementsandMaintenanceManual
SUMMITXLmobileplatform

3.4Terminals&Fuses



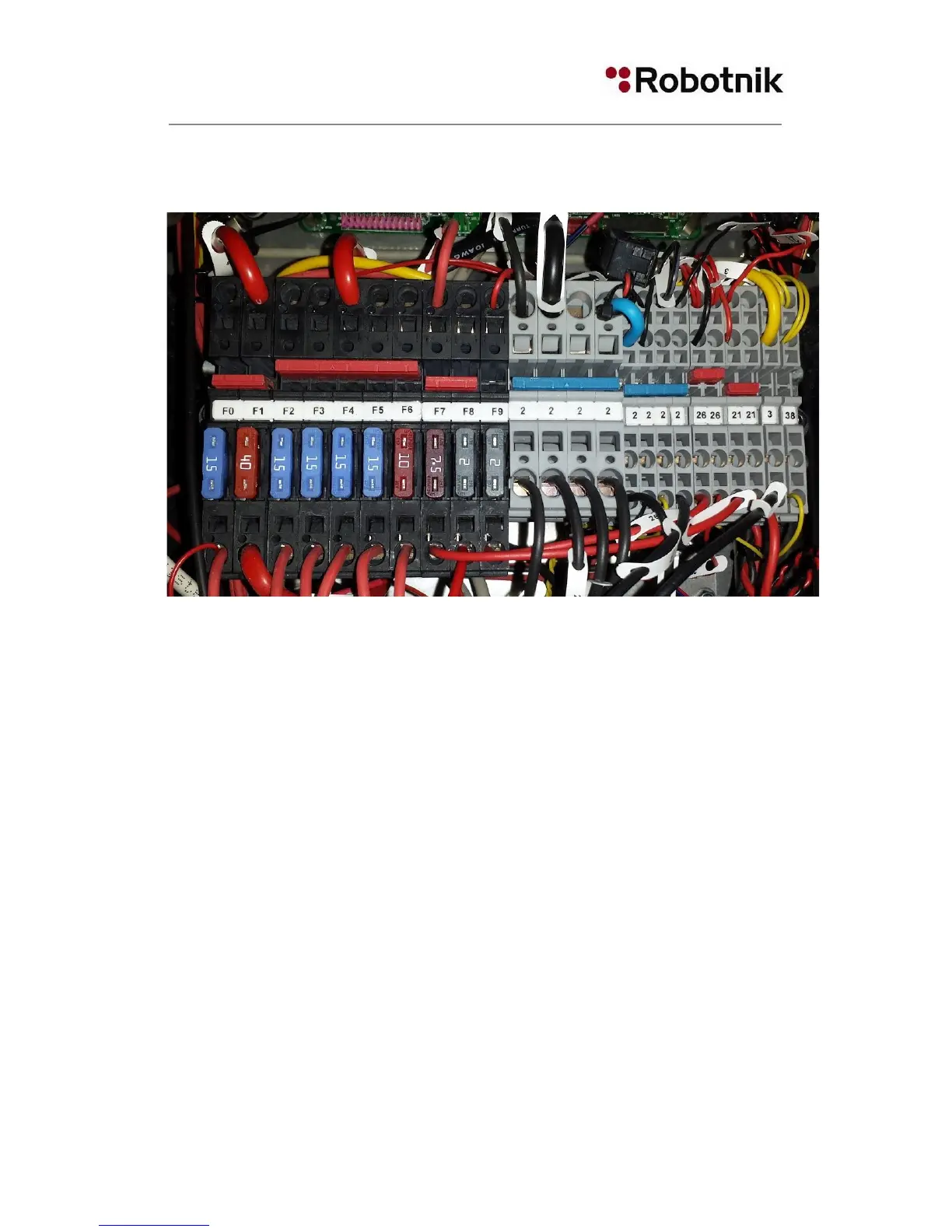

Figure12Fuses

AtthepictureyoucanseetheDINrailthefollowingfuses:
● FuseF0:15A(blue)Backpanelchargeconnector&switchS1.
● FuseF1:40A(orange)Mainfuse,connectedtobatterydirectly.
● FuseF2:15A(blue)driver1.
● FuseF3:15A(blue)driver2.
● FuseF4:15A(blue)driver3.
● FuseF5:15A(blue)driver4.
● FuseF6:10A(red)12VDC/DCconverterINPUT.
● FuseF7:7.5A(brown)12VDC/DCconverterOUTPUT(+12V).
● FuseF8:2A(grey)Backpanel12Voutput(fromDC/DCconverter).
● FuseF9:2A(grey)5VDC/DCconverterOUTPUT(+5V).
