3.4.1Initialsetupofthefuses
After unpacking the robot, you have to insert fuses from battery and back panel in the               
fuseholderbeforeturningontherobot.
Important: Electrical damage danger. Check the power ON/OFF is in OFF position           
beforepluganyfuseinthefuseholder.


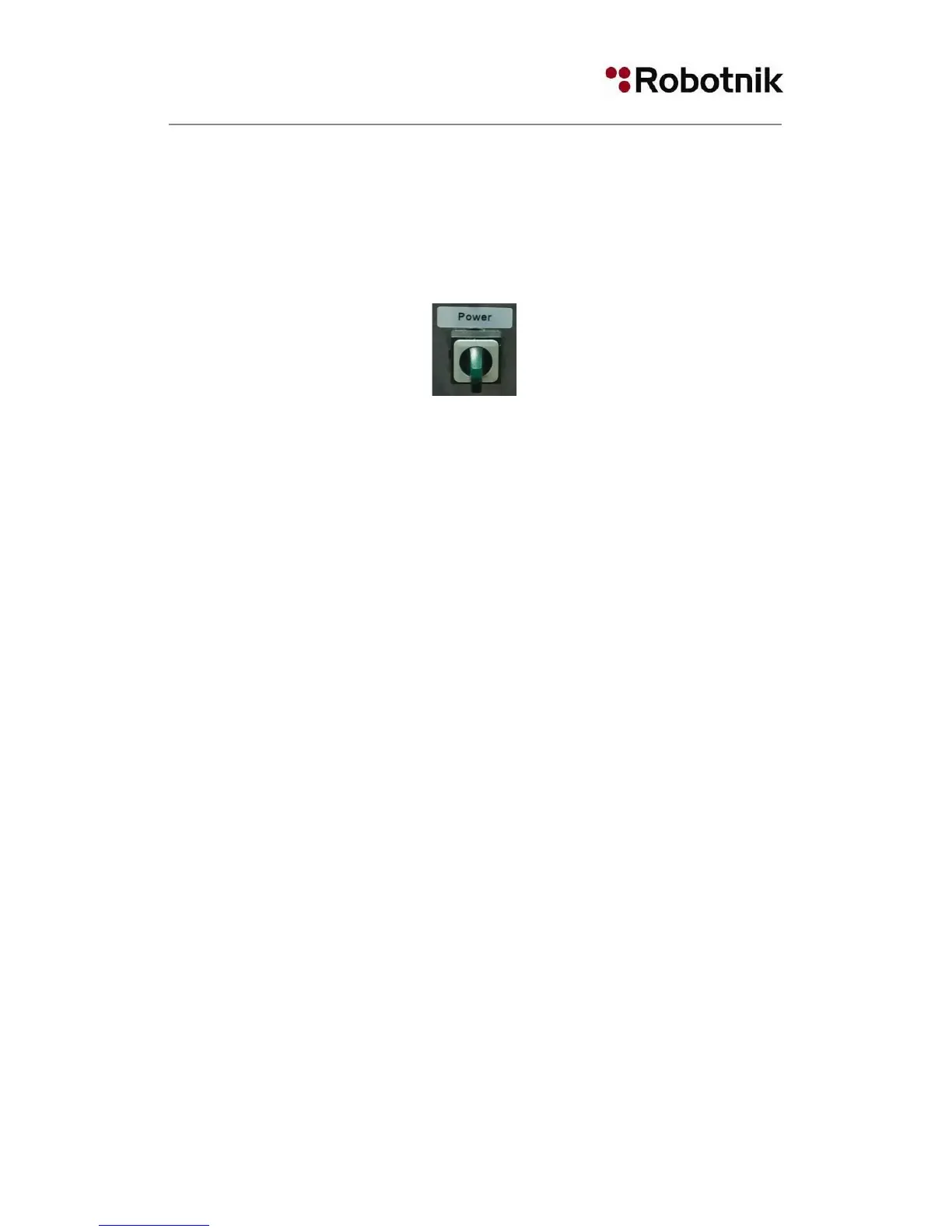

Figure13.PowerbuttoninOFFposition
● Insert15AfuseinthefuseholderlabelledwithF0.
● Insert40AfuseinthefuseholderlabelledwithF1.
Seeelectricdrawingsmanualfordetailedinformation.
 
