6.CommunicationDiagram

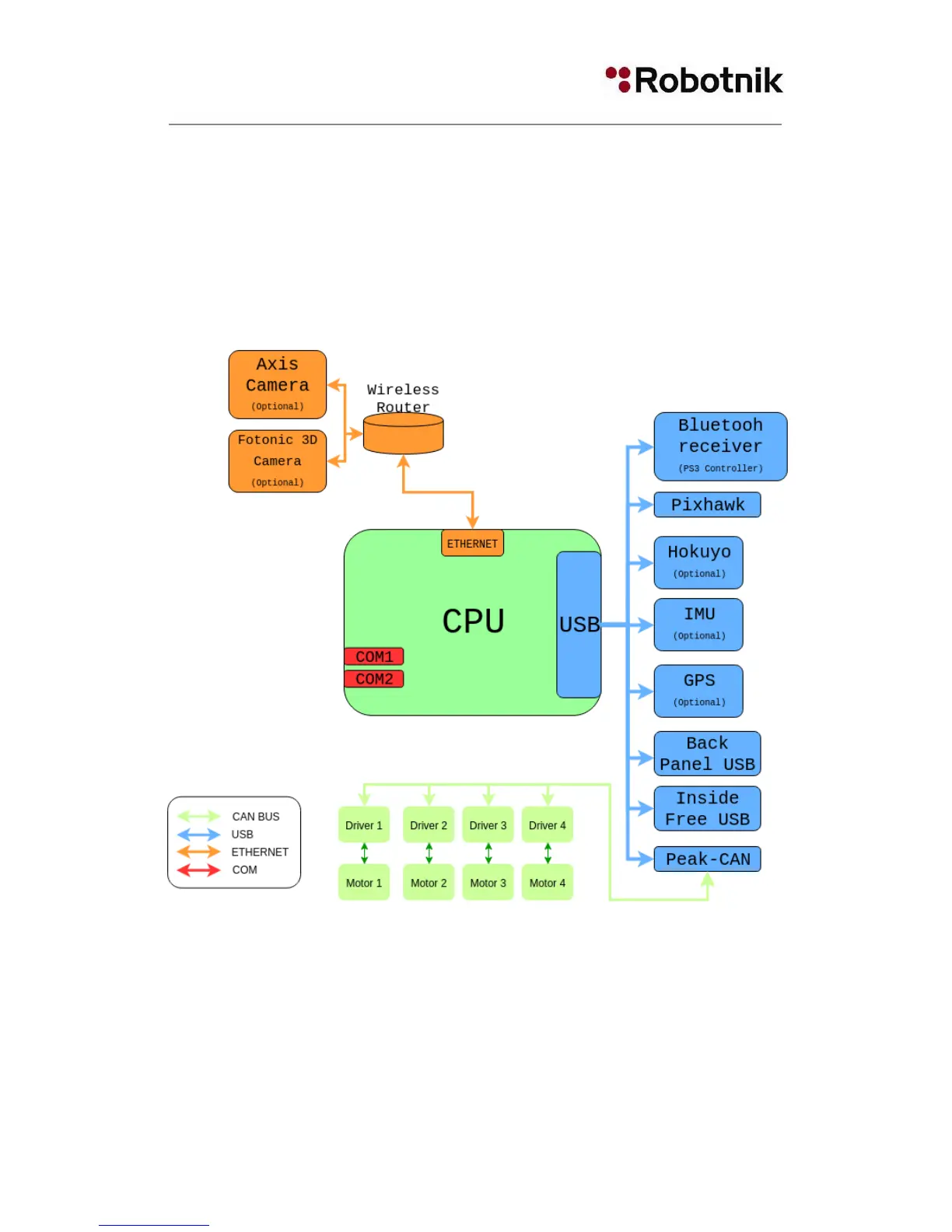

Thefollowingfigureshowsthecommunicationdiagramexistinginsidetherobot.
The functionality of the system can be further extended by using the free Ethernet ports              
andfreeUSBport(insideandoutside).


Figure23–Communicationsdiagram
 
27

