Robotnik SUMMIT XL - 5.1.1 LiFePO4 Cell; 5.1.2 Protection circuit module


RBTNKDOC160609A
SystemElementsandMaintenanceManual
SUMMITXLmobileplatform

5.1.1LiFePO4Cell


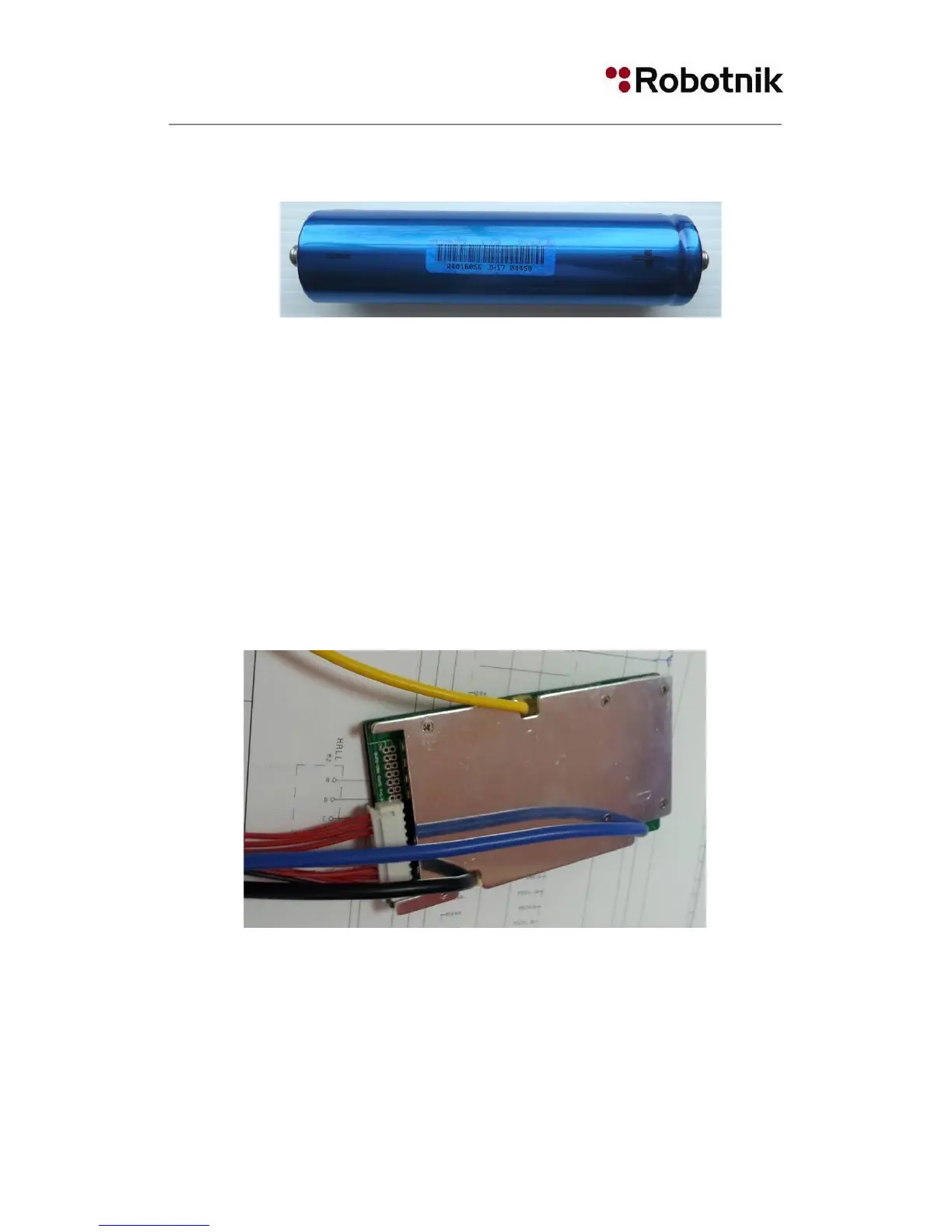

Figure18LiFePo4cell
Specifications:
● Normalcapacity15000mAh
● Normalvoltage3.2V
● Interimpedance<8mOhms
● MaximumcontinuousDischargeCurrent10C(150A)
● ChargingTemperature:10–45ºC(14–113ºF)
● DischargingTemperature:20–60ºC(14–140ºF)
● CyclePerformance:>2000(80%ofinitialcapacityat1Crate)
● StandardChargingcurrent:1C(15A),Max.5C(75A)
● Weight:500g
5.1.2Protectioncircuitmodule

Figure19–Protectioncircuitmodule

 
22

