Install the Gas Springs
2. With an adult helper holding the bed cabinet, lift the front
of the bed frame so it pivots up into the cabinet. Go at least
3" beyond flush at the top. Fig. 14.
1. With the cabinet assembly upright and the bed frame down,
position the bed cabinet 2-3' from the wall where it will be
installed (to give you enough room to work behind it).
3. Install a Gas Spring (18) on each side by snapping one end
onto the Lower Ball Stud Plate (7 and 8) on the Bed Side
Rail (C and D) and the other end on the Upper Ball Stud
Plate (15) on the Cabinet Vertical (I). Fig. 14.
4. With your adult helper securely holding the bed cabinet
and you working from behind the cabinet, push the top
of the bed out 4" or 5" and reattach the Bed Stops (19).
5. Working with your helper, carefully let the bed frame
return to the vertical position.
Mount the Bed Cabinet to the Wall
1. Make sure the cabinet will be able to sit flush against
the wall.
2. Position the cabinet against the wall. Center the bed frame
in the cabinet opening by placing a folded piece of cardboard
between the bed frame and the Cabinet Vertical (I) on each
side near the top.
Be sure to properly orient the Gas
Springs by noting the location of the labels reading, “Mount
this end up.”
To reduce the risk of seriois injury, do
NOT attempt to lower the bed frame assembly until the bed
cabinet has been securely attached to the wall.
THESE WARNINGS PERTAIN
TO ALL REMAINING STEPS:
> The components of this wall bed unit operate
with stored mechanical energy, which can cause
serious injury if mishandled. TO REDUCE THE
RISK OF INJURY, THE BED UNIT MUST BE
CORRECTLY AND SECURELY ANCHORED
TO THE WALL, WITH THE CORRECT
FASTENERS FOR THE TYPE OF WALL,
AS SPECIFIED IN THESE INSTRUCTIONS.
> Once the Gas Springs (18) are installed, the bed
will not stay down without the weight of a mattress.
Operating the bed mechanism without a mattress
in place increases the risk of sudden closing,
entrapment and serious personal injury.
> The components of this wall bed unit operate with
stored mechanical energy, which can cause serious
injury if mishandled. TO REDUCE THE RISK OF
INJURY, THE BED UNIT MUST BE CORRECTLY
AND SECURELY ANCHORED TO THE WALL, WITH
THE CORRECT FASTENERS FOR THE TYPE OF
WALL, AS SPECIFIED IN THESE INSTRUCTIONS.
> You MUST have another ADULT help you while installing
your wall bed unit to make sure the bed doesn’t close
inadvertently while you are working. Failure to do so
increases the risk of serious injury.

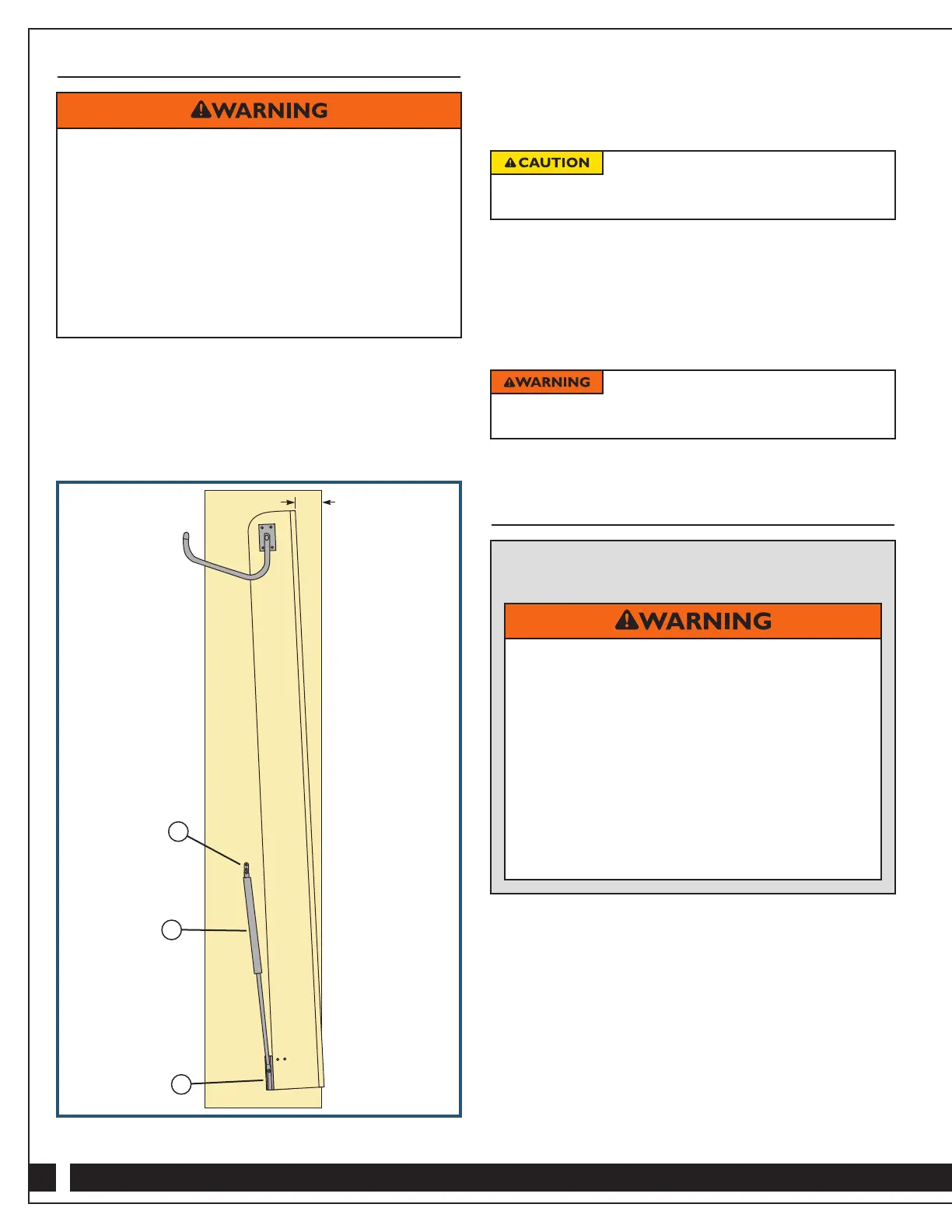

Fig. 14
At least 3"
15
18
7
