Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 207
Appendix F MicroLogix 1400 Distributed Network Protocol
Default Variation Config File Number
This parameter is supported only in MicroLogix 1400 Series B and Series C
controllers.
This file number is used to define default variations in a response to a Class 0
poll request.
The value of this parameter is N file only. Valid range is 0, 7, 9…255. Default
value is 0.

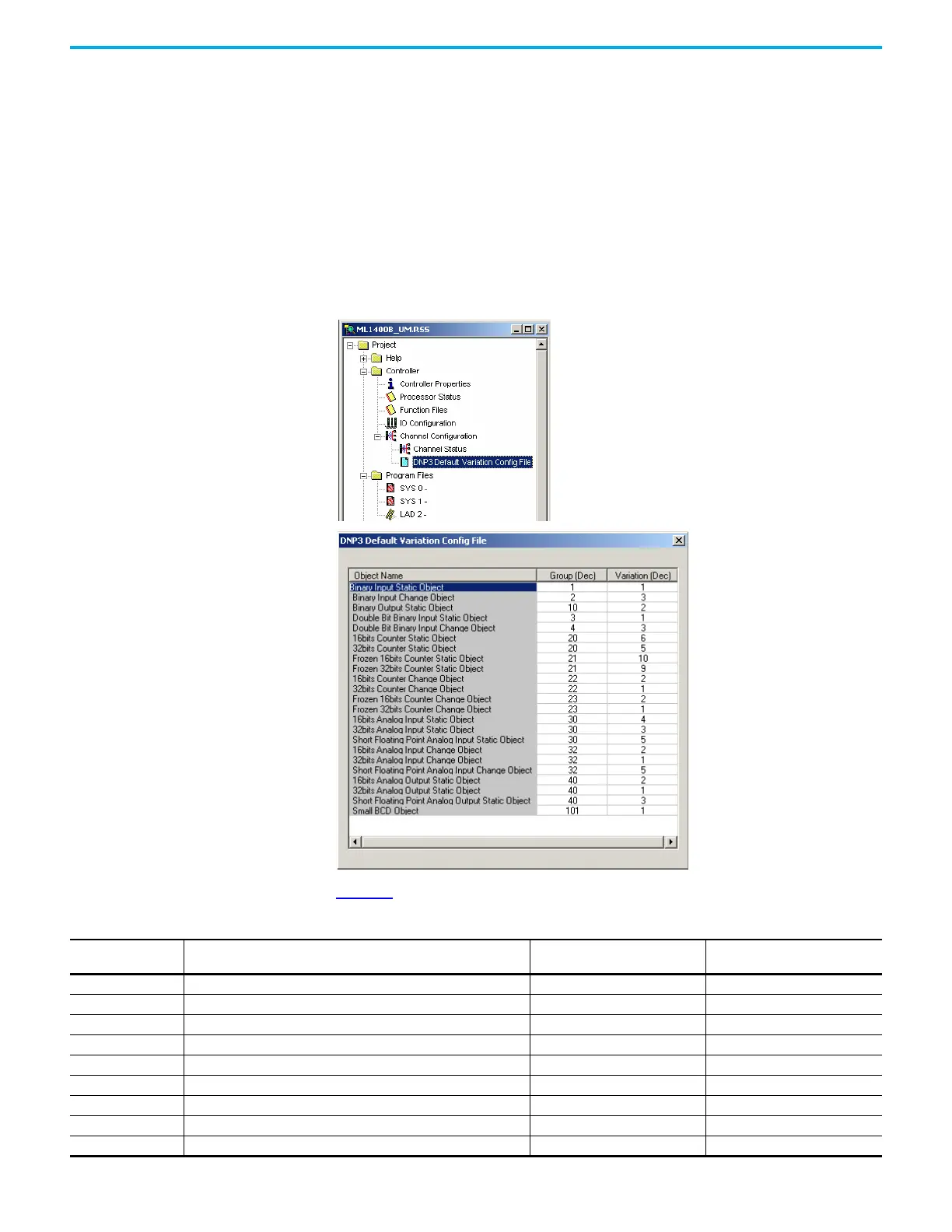

In RSLogix 500/RSLogix Micro software, when this parameter is configured
properly, you can see a DNP3 Default Variation Config File tree in Channel
Configuration.
Table 24 shows the structure of the DNP3 Default Variation Configuration File.
Table 24 - DNP3 Default Variation Configuration File
Word Offset Default Variation for the following Objects
Group and Standard Default
Variation
Alternate Default Variations
0 Binary Input Static Object g1v1 v2
1 Binary Input Change Object g2v3 v1, v2
2 Binary Output Static Object g10v2 none
3Reserved -
4 Double Bit Binary Input Static Object g3v1 v2
5 Double Bit Binary Input Change Object g4v3 v1, v2
6 16-bit Counter Static Object g20v6 v2
7 32-bit Counter Static Object g20v5 v1
8 Frozen 16-bit Counter Static Object g21v10 v2, v6
