Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 147
Chapter 8 EtherNet/IP Network

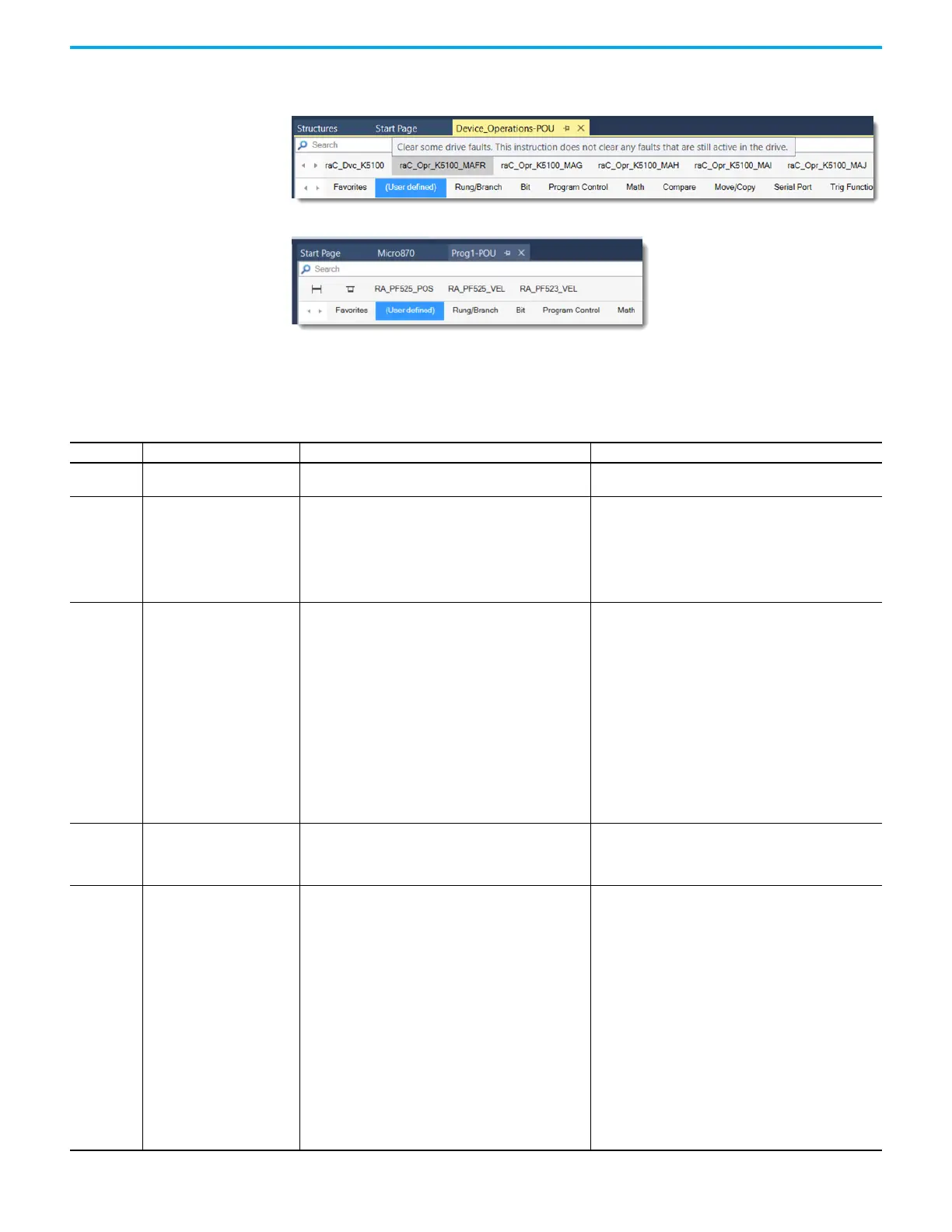

The UDFBs also appear in the (User defined) tab in the ladder logic toolbox.
Connection Fault Codes The following table lists the possible connection faults that can occur and the corrective
actions that you can take to resolve the fault.
UDFBs for Kinetix 5100 Drives
UDFBs for PowerFlex 520-series Drives
Table 25 - List of Connection Fault Codes
Fault Code Display Text Fault Corrective Action
0x0001 Connection failure. A connection to a module failed.
Extended status codes in these ranges provide more detail
as to the connection failure.
0x0002 Resource unavailable.
Possible causes include the following:
• There are not enough connections available either for the
controller or for the communication module being used to
connect through.
• The I/O module that is targeted does not have enough
connections available.
• Check the connection use of the controller or
communication module. If all connections are used, try to
free some of the used connections or add another module
to route the errant connection through.
• Check the number of controllers making a connection to
this I/O module and verify that the number of connections
is within the limits of the I/O module.
0x0003
Invalid value in an object
specific data parameter of a
service request.
A parameter that is associated with the request was invalid.
Possible causes include the following:
• The module in use (that is, the physical module) is
different than the module specified in the I/O
configuration tree and is therefore causing the
connection or service to fail.
• The fault may occur even when the module passes the
electronic keying test. This may result when Disable
Keying or Compatible Keying options were used in the
module configuration instead of the Exact Match option.
• Despite passing the electronic keying test, the module
being connected to does not have the same features or
settings as the module specified in the I/O configuration
tree and does not support the connection or service being
attempted.
Check the module in use and verify that it exactly matches
the module that is specified in the application. For more
information about electronic keying, see the user manual
for the module you are using.
0x0004
Connection Request Error:
Bad Segment.
IOI segment error on connection request.
The target module does not like one of the parameters in
the connection request. This may occur if improper module
keying is being used or if the wrong map type attribute is
set in the map entry.
0x0005
Connection Request Error:
Bad Class.
The controller is attempting to make a connection to the
module and has received an error.
Possible causes include the following:
• The configured address for the connection to the module
is incorrect.
• The module in use (that is, the physical module) is
different than the module specified in the I/O
configuration tree and is therefore causing the
connection or service to fail.
• The fault may occur even when the module passes the
electronic keying test. This may result when Disable
Keying or Compatible Keying options were used in the
module configuration instead of the Exact Match option.
• Despite passing the electronic keying test, the module
being connected to does not have the same features or
settings as the module specified in the I/O configuration
tree and does not support the connection or service being
attempted.
• Check the module in use and verify that it exactly
matches the module that is specified in the application.
For more information about electronic keying, see the
user manual for the module you are using.
• If you are using a 1756-DHRIO module, verify that the
Channel type selected in the software (DH+™ or remote
I/O network) matches the module's rotary switch settings.
