Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 131
Chapter 6 Configure and Start up the Kinetix 5300 Drive System

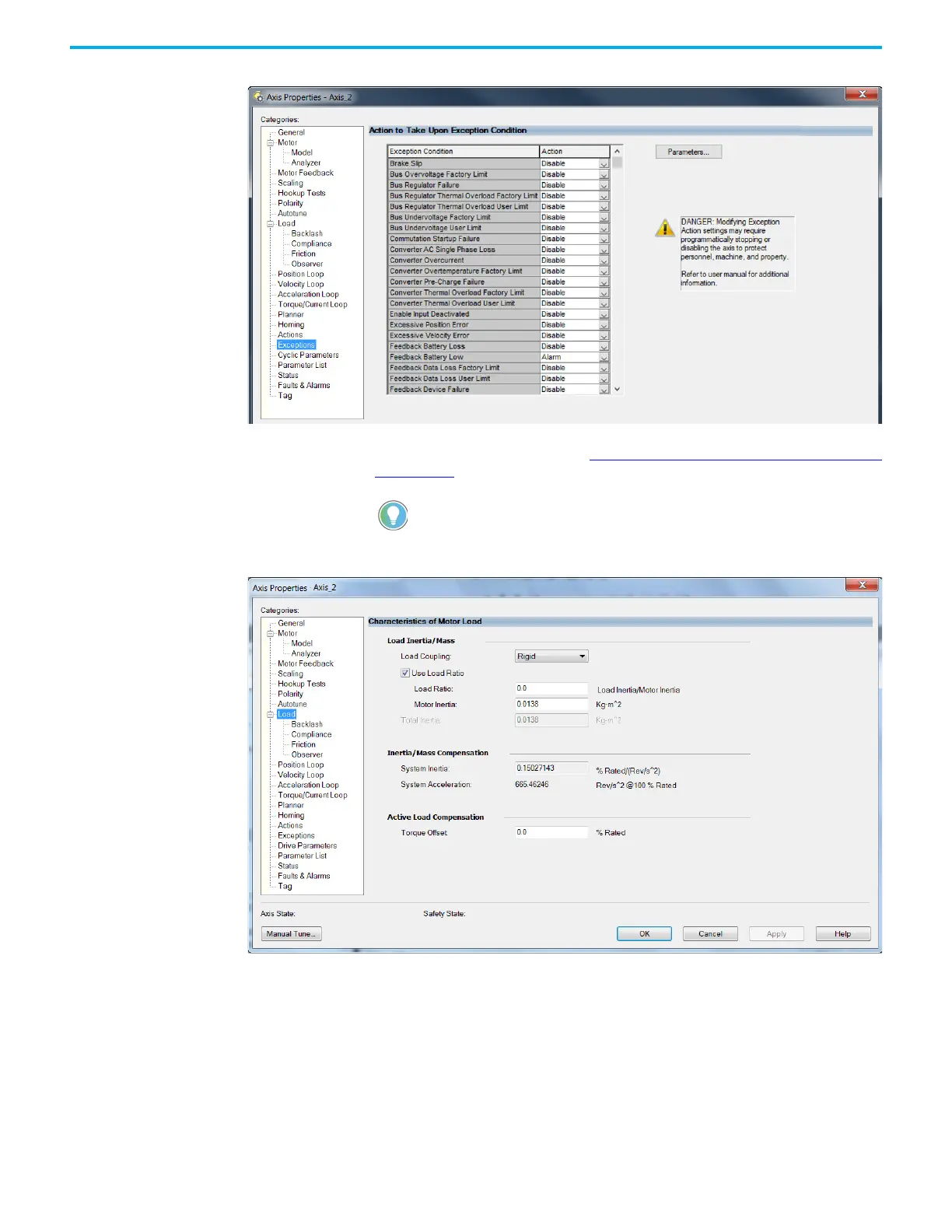

The Action to Take Upon Exception Condition dialog box appears.
From this dialog box you can change the action for exceptions (faults).
For more information, refer to Logix 5000 Controller and Drive Behavior
on page 145.
19. Select the Load category and edit the default values as appropriate for
your application.
20. Click Apply, if you make changes.
21. Click OK.
22. Select the Motor>Model category.
Motor model attributes are automatically estimated from the
Nameplate/Datasheet parameters. For improved performance, motor
tests can be run.
23. The Analyze Motor to Determine Motor Model dialog box opens.
In the Logix Designer application, version 32.00 and later, Disable
replaced StopDrive as the default Action.
