132 Rockwell Automation Publication 2198-UM005C-EN-P - February 2022
Chapter 6 Configure and Start up the Kinetix 5300 Drive System

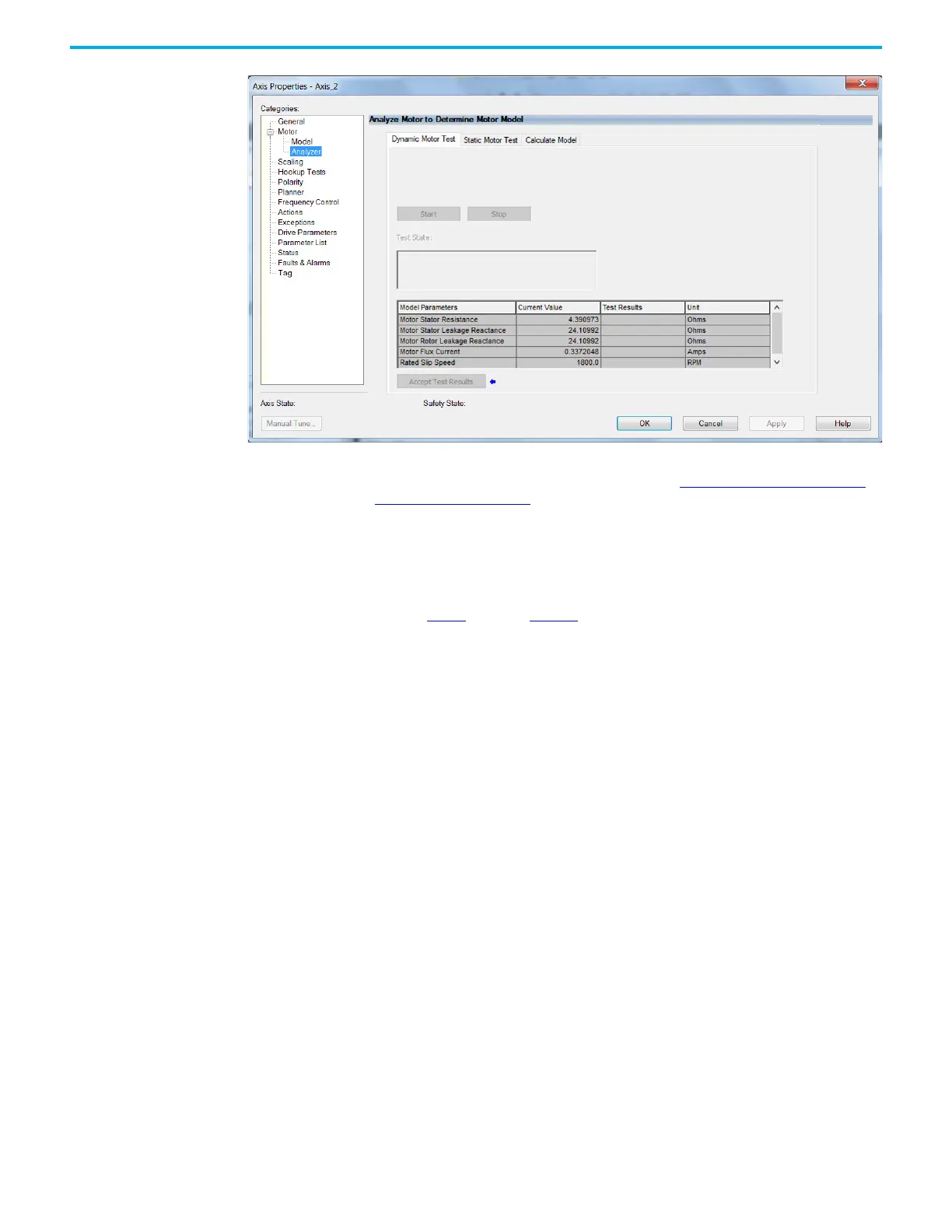

24. Click the tab corresponding to the Motor Test you want to run.
For information about each of the tests, see Motor Tests and Autotune
Procedure on page 214.
25. Click Start.
26. Click Accept Test Results.
27. Click Apply.
28. Select the Autotune category.
29. Repeat step 1
through step 29 for each induction motor axis.
