Chapter 6 Configure the Redundant I/O System
1715-OB8DE Digital Output
Module
Add the Digital Output Module to the Project
In this section, you do the following:
• Add a 1715-OB8DE digital output module in Duplex mode to the project.
• Add a 1715-OB8DE digital output module in Simplex mode to the project.
Step 1: Add the Digital Output Module in Duplex Mode
1. To add a new 1715-OB8DE digital output module in Duplex mode to the
project, right-click the 1715-AENTR adapter and choose New Module.

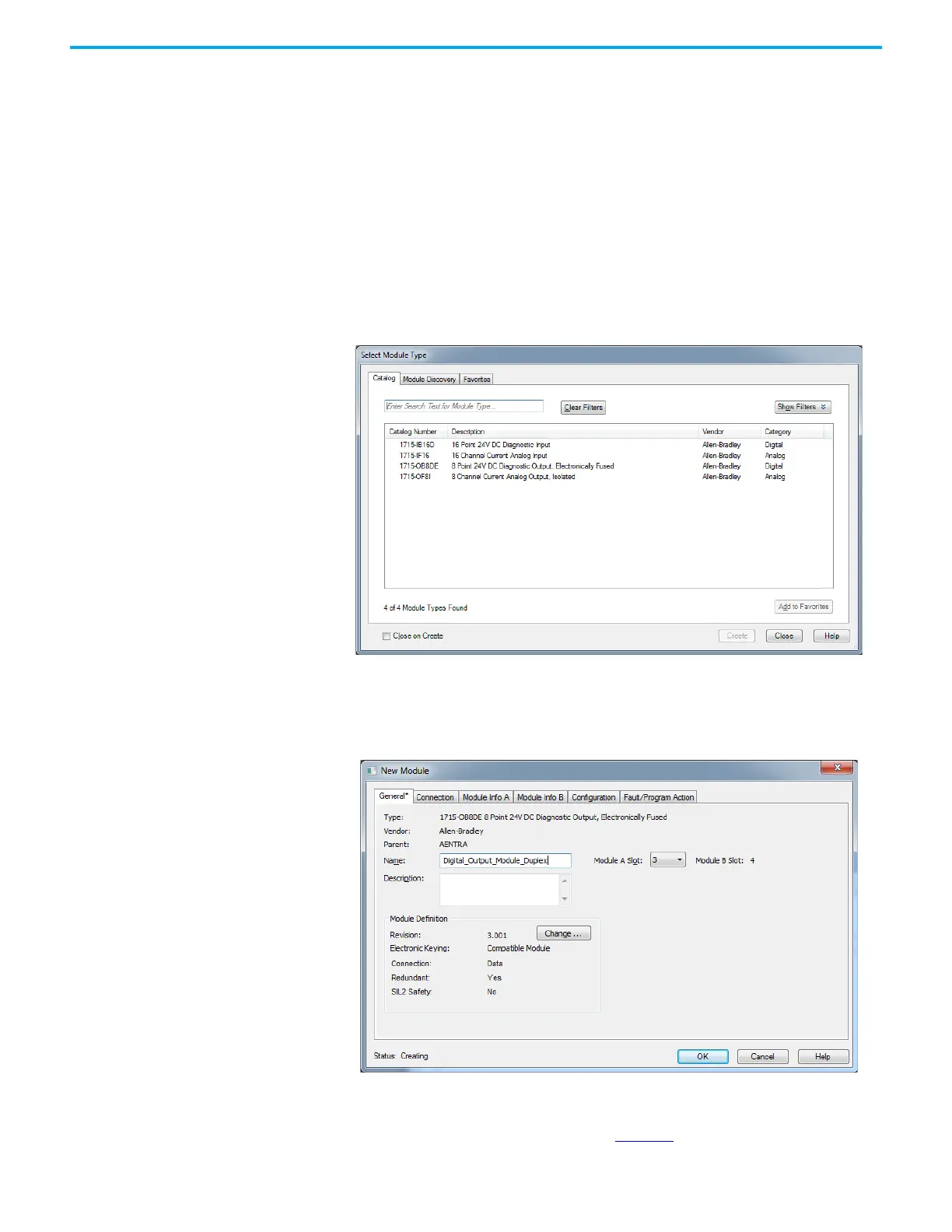

The Select Module dialog box appears.
2. Expand the Digital module list and select the 1715-OB8DE module, and
click OK.
The General tab appears.
3. Enter the parameters.
They are similar to the settings on page 178
