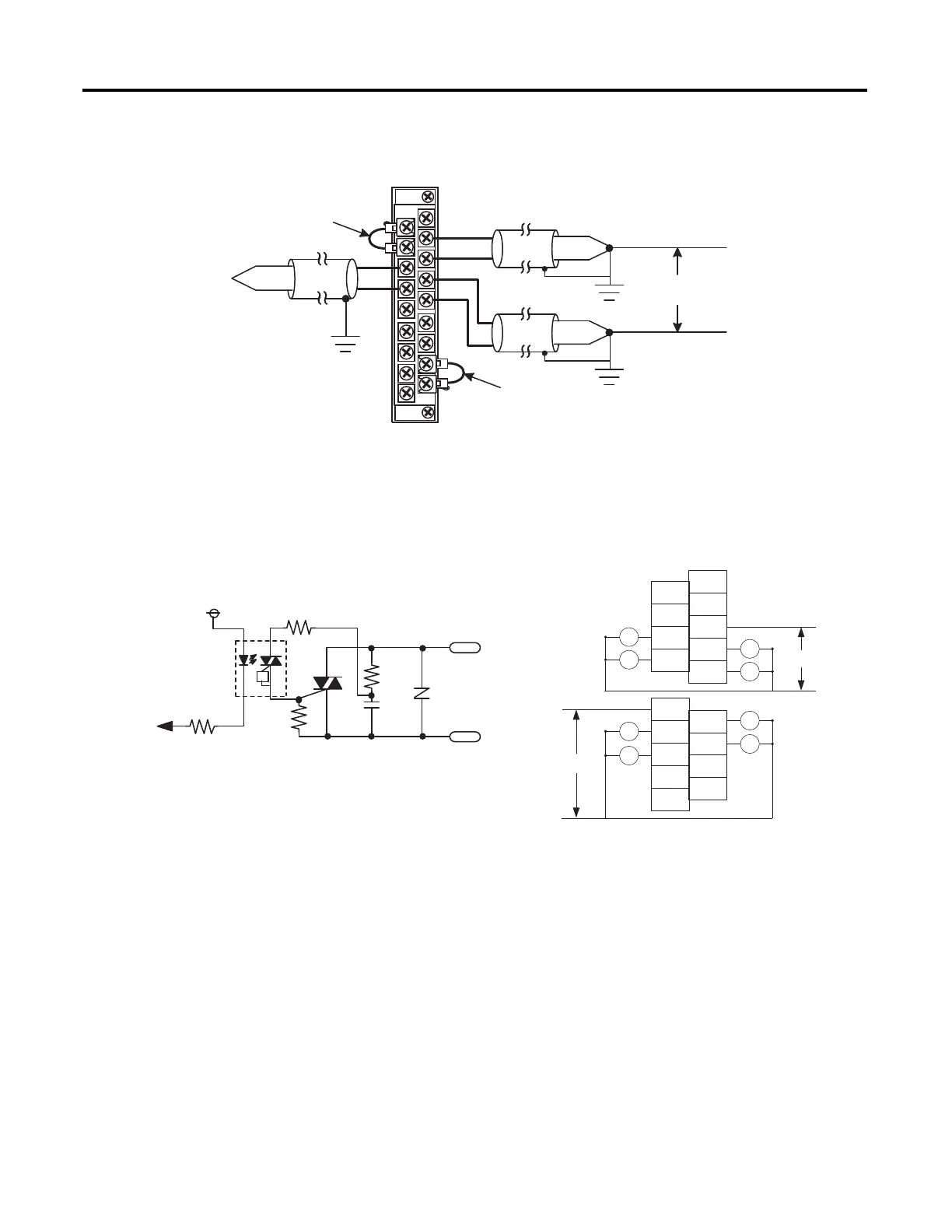

36 Rockwell Automation Publication 1769-IN088A-EN-P - February 2011
Chapter 2 Module Wiring
1769-IT6
Compact Thermocouple/mV input module
1769-OA8
Compact 100/240V AC solid state output module
NC
IN 0+
IN 0-
IN 3+
IN 1 +
IN 3-
IN 1-
IN 4+
IN 2+
IN 4-
IN 2-
IN 5+
IN 5-
NC
+
-
+
-
+
-
CJC 0+
CJC 0-
CJC 1-
CJC 1+
CJC Sensor
Ungrounded
Thermocouple
CJC Sensor
Grounded Thermocouple
Grounded Thermocouple
Within 10V DC
L2
L1
L2
L1
OUT6
OUT4
VAC 2
OUT2
OUT0
OUT7
OUT5
OUT3
OUT1
VAC1
CR
CR
CR
CR
CR
CR
CR
CR
100 to 240V AC
1769-OA8
100 to 240V AC
Z
OUT
VAC
470V
27
0.015μF
51
Vcc
150
Simplified Output Circuit Diagram
