Rockwell Automation Publication 1769-IN088A-EN-P - February 2011 43

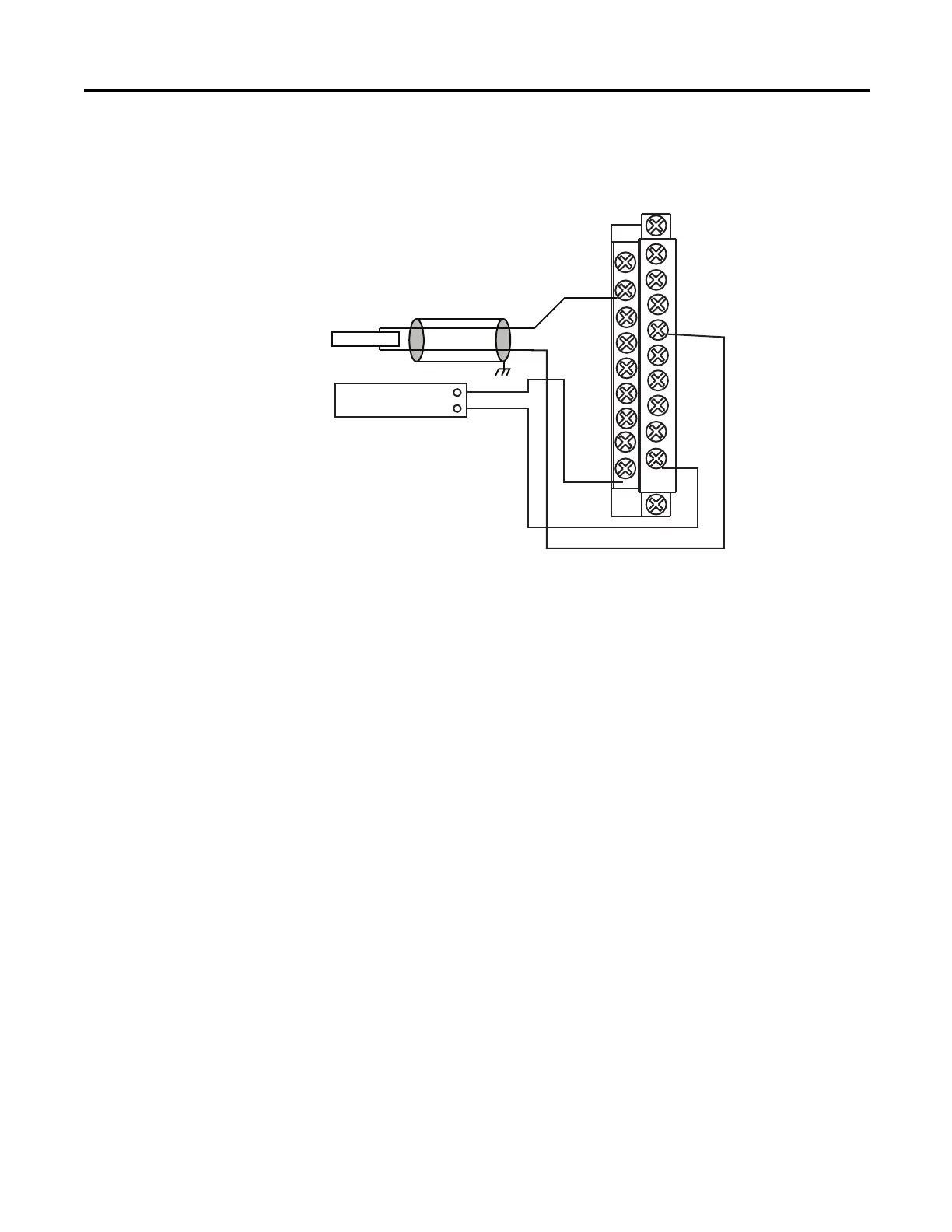

Module Wiring Chapter 2
1769-OF8V
Compact voltage output analog module
1769-OF8V
ANLG Com
ANLG Com
ANLG Com
ANLG Com
ANLG Com
ANLG Com
ANLG Com
ANLG Com
DC NEUT
+24V DC
V out 7+
V out 6+
V out 5+
V out 4+
V out 3+
V out 2+
V out 1+
V out 0+
+
-
Voltage
Earth Ground
The external power supply must be rated Class 2, with a 24V DC range of 20.4…6.4V DC
and 60 mA minimum. Series B and later modules support this option.
External 24V DC Power
Supply (optional)
