12 Rockwell Automation Publication 2198-IN001D-EN-P - February 2016
Kinetix 5500 Servo Drives

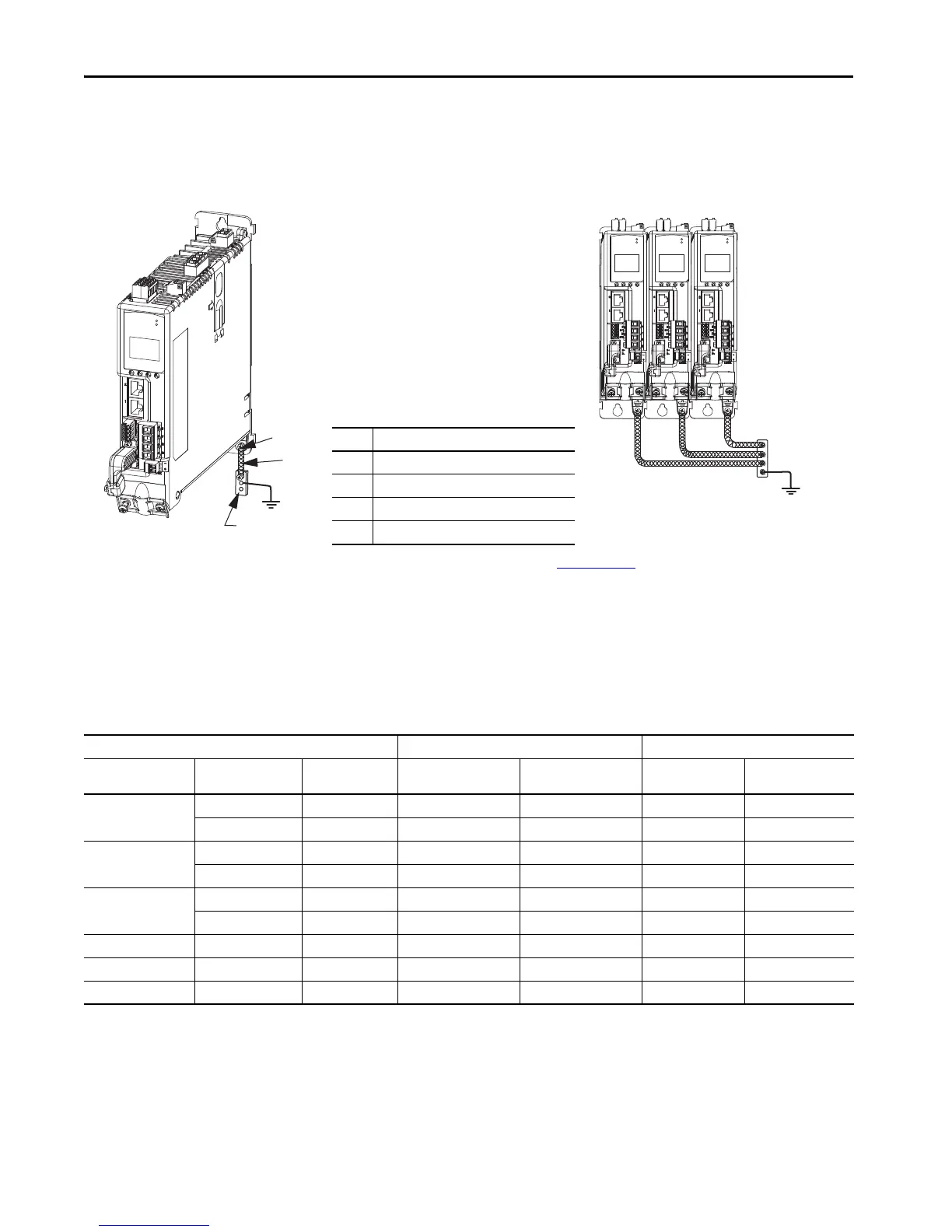

Ground Your Kinetix 5500 Drive to the Subpanel
Ground Kinetix 5500 drives and 2198-CAPMOD-1300 capacitor modules to a bonded cabinet ground bus with a braided ground strap. Keep the
braided ground strap as short as possible for optimum bonding.
Connecting the Braided Ground Strap
Refer to the System Design for Control of Electrical Noise Reference Manual, publication GMC-RM001, for more information.
Circuit Breaker/Fuse Selection
The Kinetix 5500 drives use internal solid-state motor short-circuit protection and, when protected by suitable branch circuit protection, are rated
for use on a circuit capable of delivering up to 200,000 A (fuses) and 65,000 A (circuit breakers).
Standalone Drive Systems
Kinetix 5500 Drives UL Applications IEC (non-UL) Applications
Drive Cat. No. Drive Voltage, nom Phase
Bussmann Fuses
Cat. No.
Molded Case CB
Cat. No.
DIN gG Fuses
Amps (max)
Molded Case CB
Cat. No.
2198-H003-ERSx
240V Single-phase KTK-R-2 140U-D6D2-B10 2 140U-D6D2-B10
240/480V Three-phase KTK-R-3 140U-D6D3-B20 4 140U-D6D3-B20
2198-H008-ERSx
240V Single-phase KTK-R-5 140U-D6D2-B20 6 140U-D6D2-B20
240/480V Three-phase KTK-R-7 140U-D6D3-B60 6 140U-D6D3-B60
2198-H015-ERSx
240V Single-phase KTK-R-10 140U-D6D2-B80 10 140U-D6D2-B80
240/480V Three-phase KTK-R-15 140U-D6D3-C12 16 140U-D6D3-C12
2198-H025-ERSx 240/480V Three-phase KTK-R-20 140U-D6D3-C20 20 140U-D6D3-C20
2198-H040-ERSx 240/480V Three-phase KTK-R-25 140U-D6D3-C25 25 140U-D6D3-C25
2198-H070-ERSx 240/480V Three-phase LPJ-35SP 140G-G6C3-C40 35 140G-G6C3-C40
4
3
2
1
Kinetix 5500
Servo Drive
(standalone)
Kinetix 5500
Servo Drives
(shared-bus)
Item Description
1 Ground screw (green) 2.0 N•m (17.5 lb•in), max
2 Braided ground strap (customer supplied)
3 Ground grid or power distribution ground
4 Bonded cabinet ground bus (customer supplied)
