Publication 2098-IN005C-EN-P — March 2008
Interconnect Diagrams 117
This is the power wiring diagram with 24V dc control string for
2098-DSD-075x-xx and 2098-DSD-150x-xx Ultra3000 drives
(non-SERCOS drives only). For the control string diagram with 120V
ac input refer to the figure on page 130.
For SERCOS drives, input line contactor is part of the PLC program
and output control.

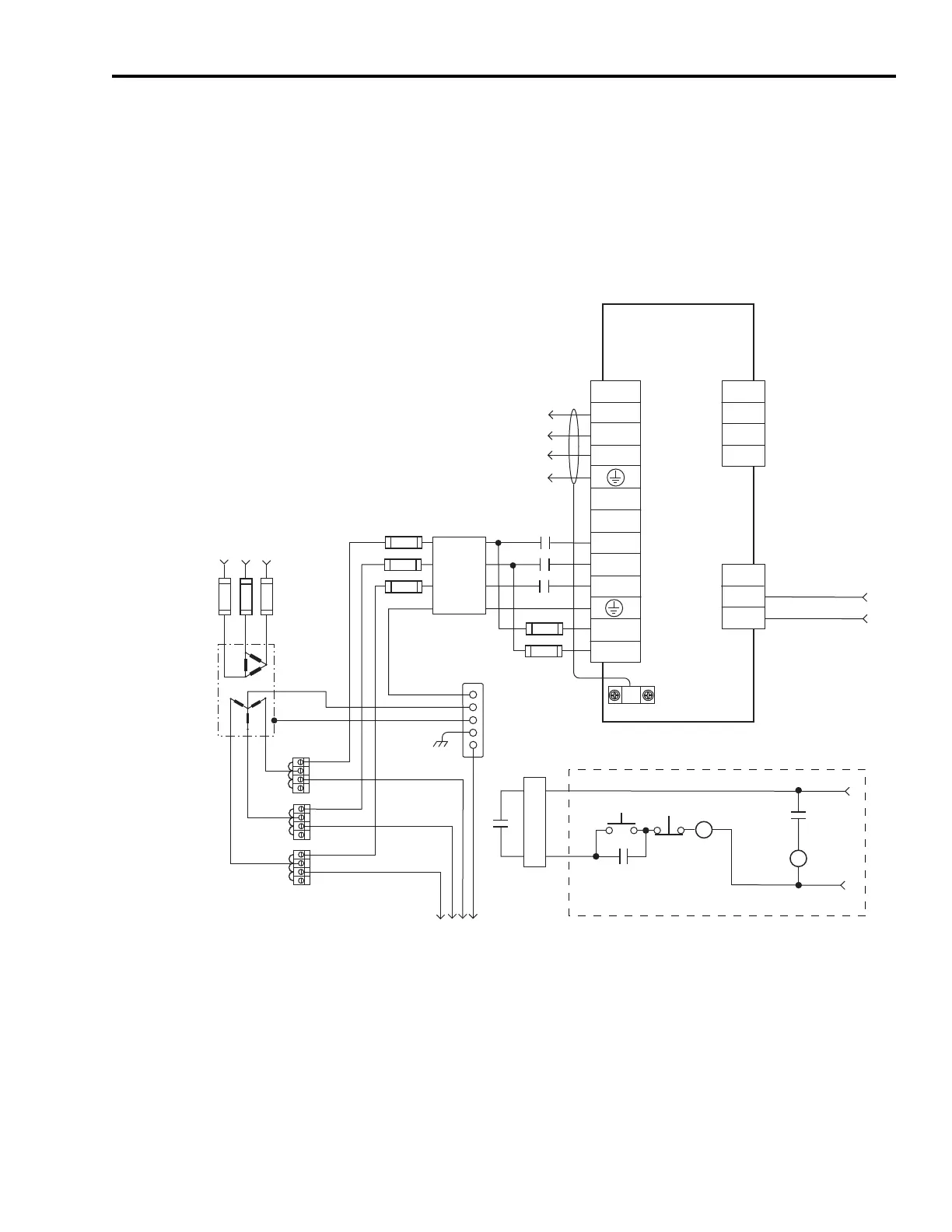

Typical Power Wiring of Ultra3000 (230V) System
TB1
U
V
W
DC+
DC-
L1
L2
L3
L1 AUX
L2/N AUX
L2
L1
CN1
43
44
L3
TB2
1
2
3
43
44
CN1
43
44
2098-DSD-075x-xx and
2098-DSD-150x-xx
Ultra3000
Digital Servo Drives
Note 13
AC Input Power
Connections
Motor Power
Connections
Three-phase
AC Line Filter
Note 7
Input Fusing *
Note 4, 5
Three-phase Input
100-240V ac RMS
Fused Disconnect
or Circuit Breaker *
Note 1
Isolation
Transformer *
Note 2
Chassis
Bonded Cabinet
Ground Bus *
Terminal
Blocks *
Note 3
To additional
Ultra3000 drive
Three-phase
Motor Power
Connections
Note 12
Cable Shield
Clamp
Note 9
* Indicates User-supplied Component
STOP *
START *
CR1 *
CR1 *
CR1 *
M1 *
Refer to Attention statement (Notes 10, 11)
N.O. Relay Output+
N.O. Relay Output-
Note 22
24V dc
Neutral
Note 6
M1 *
Note 8
External Passive
Shunt Connections
(refer to examples
beginning on page 119)
Three-phase AC Line
50/60 Hz
Input Fusing *
Note 4, 5
