128 Interconnect Diagrams
Control String Examples (120V ac)
This section provides information to assist you in using the
configurable Drive Ready output in a control string with 120V ac input
voltage.
In this example, the 2098-DSD-005x-xx, 2098-DSD-010x-xx, or
2098-DSD-020x-xx Ultra3000 drive is wired to the 120V ac control
string.

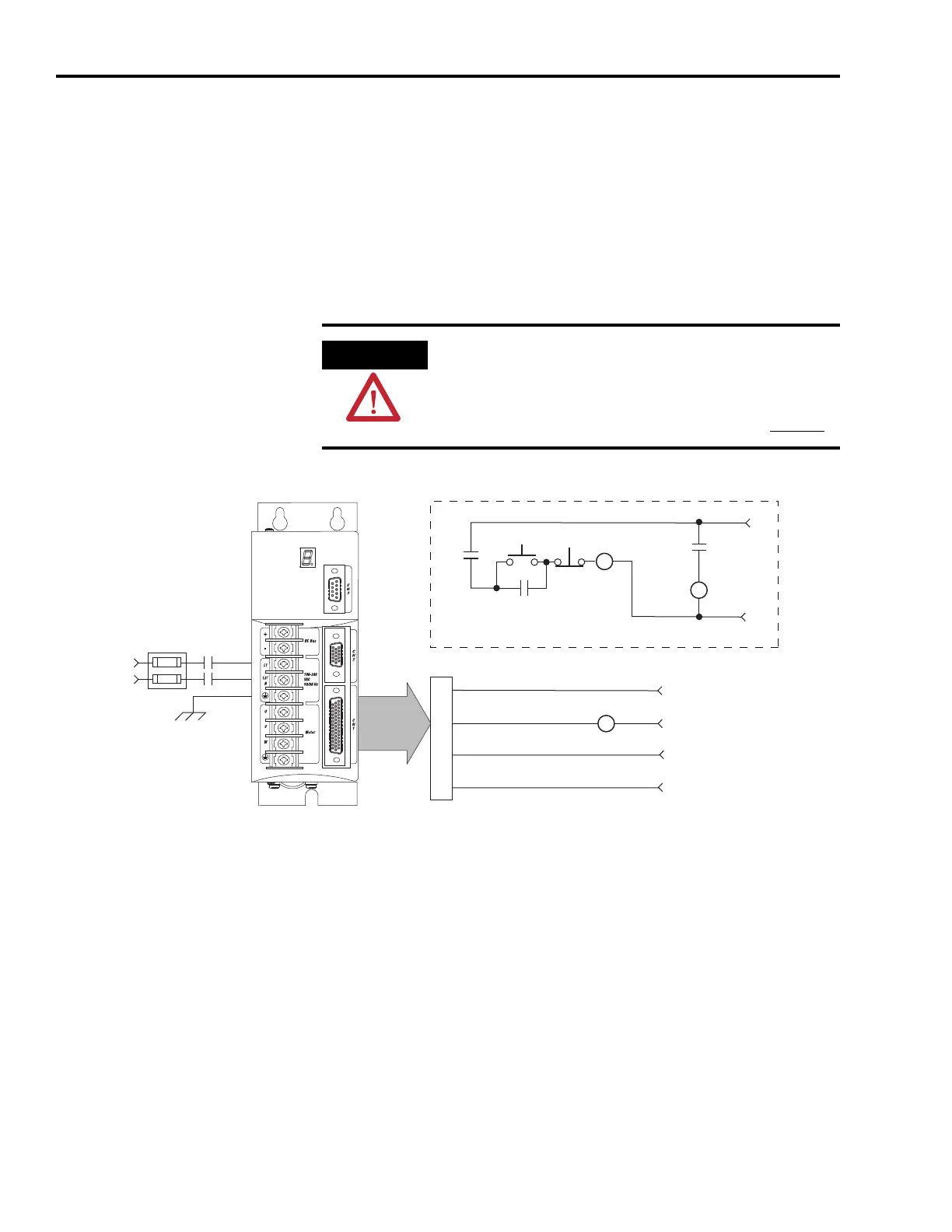

120V ac Single-phase Control String Example
Implementation of safety circuits and risk assessment is the
responsibility of the machine builder. Please reference
international standards EN1050 and EN954 estimation and
safety performance categories. For more information refer to
Understanding the Machinery Directive, publication SHB-900
.
CN1
Ultra3000
Drive
120V ac
50/60 Hz
STOP
START
CR1
CR1
CR1
M1
Refer to Attention statement above
CR2
43
44
3
2
CR2
24V dc
M1
Fuse
Block
Single-phase
AC Line
50/60 Hz
L1
L2/N
N.O. Relay Output+
N.O. Relay Output-
Aux Logic Power In +5V
Aux +5V Common
From CN1 Breakout Board
with 24V to 5V Aux Power
Converter (2090-U3CBB-DM
xx
)
To Next Page
