Publication 2098-IN005C-EN-P — March 2008
Commissioning Your Ultra3000 Drive 39

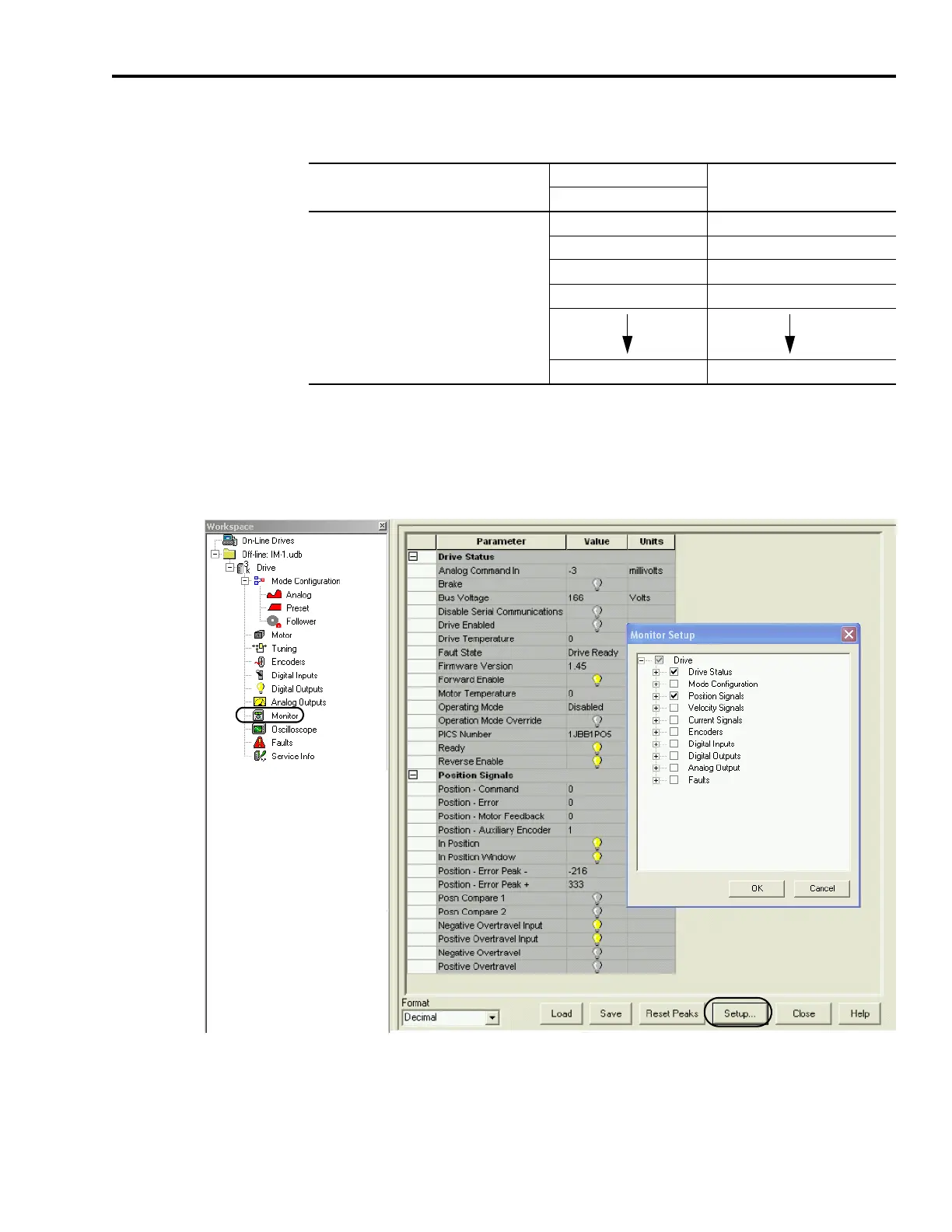

9. Using this table, determine the sequence of these three inputs that
correspond to the preset positions entered.
In this example, Preset Position 0 and 1 are configured so Preset
Select 0 is either off (Preset Position 0) or on (Preset Position 1).
10. Double-click the Monitor branch.
The (default) Drive Status parameters display.
11. Click Setup.
The Monitor Setup dialog opens.
Preset Selects
Binary Code
Selected Preset or Index
543210
Select up to 64 locations via preselect inputs
5…0 by using BCD format.
(codes for preset selects 1 and 0 are shown)
0 0 0 0 0 0 Preset 0 or Index 0 is selected.
0 0 0 0 0 1 Preset 1 or Index 1 is selected.
0 0 0 0 1 0 Preset 2 or Index 2 is selected.
0 0 0 0 1 1 Preset 3 or Index 3 is selected.
1 1 1 1 1 1 Preset 64 or Index 64 is selected.
