Publication 2098-IN005C-EN-P — March 2008
Commissioning Your Ultra3000 Drive 73
4. Click OK.
5. From the Edit menu, choose Controller Properties.

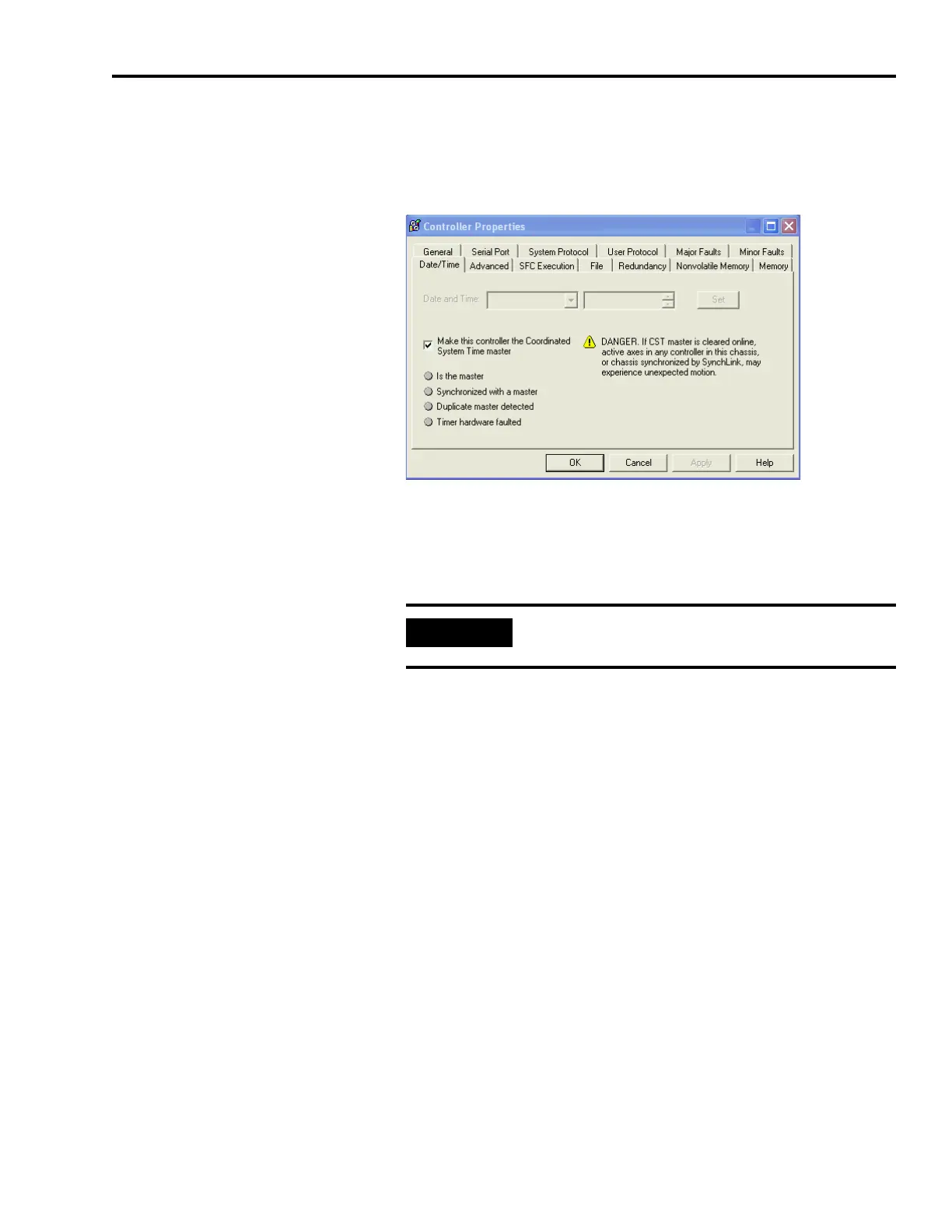

The Controller Properties dialog opens.
6. Click the Date/Time tab.
7. Check the Make this controller the Coordinated System Time
master checkbox.
8. Click OK.
Configure Your Logix Module
Follow these steps to configure your Logix module.
1. In the Explorer dialog, right-click I/O Configuration and choose
New Module.
The Select Module dialog opens.
2. Expand the Motion category and select 1756-MxxSE
1756-L60M03SE, 1768-M04SE, or 1784-PM16SE as appropriate for
your actual hardware configuration.
3. Click OK.
Your new module appears under the I/O Configuration folder in
the Explorer dialog.
Only one Logix processor can be assigned as the
Coordinated System Time master.
