Rockwell Automation PowerFlex 755TM User Manual

Rockwell Automation Publication DRIVES-AT005D-EN-P - May 2022 97
Appendix B Power Component Accessories

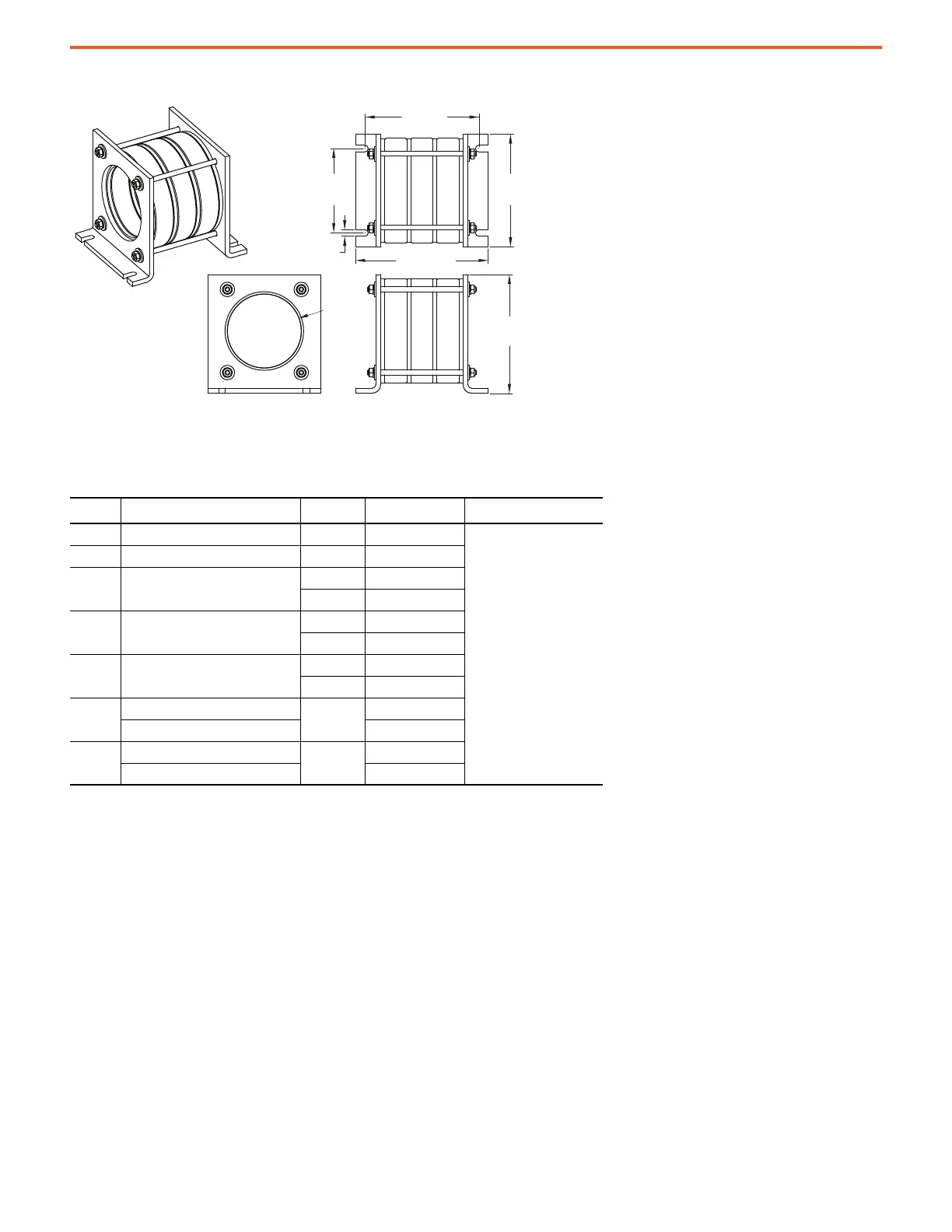

Figure 15 - Drive Common Mode Core Option 4 (SK-Y1-CMCORE1) Mounting Dimensions
Internal EMC Plate and Cores for Drive
The following internal EMC plate and core options are available.
Option PowerFlex 750-Series Drive Voltage
Part No.
(2)
(2) These cores are only used for EMC compliance. They aren’t meant to be used to reduce circulating common mode currents.
Additional Resources
1 Frame size 1 400/480 20-750-EMC1-F1
See PowerFlex 750-Series
EMC Plate and Cores -
Frames 1…7 Installation
Instructions, for more
details.
2 Frame size 2 400/480 20-750-EMC1-F2
3 Frame size 3
400/480 20-750-EMC1-F3
600/690 20-750-EMC3-F3
4 Frame size 4
400/480 20-750-EMC1-F4
600/690 20-750-EMC3-F4
5 Frame size 5
400/480 20-750-EMC1-F5
600/690 20-750-EMC3-F5
6
Frame size 6 in IP20 enclosure
600/690
(1)
(1) Internal EMC plate and cores aren’t available for 400/480 volt drives.
20-750-EMC3-F6
Frame size 6 in IP54 enclosure 20-750-EMC5-F6
7
Frame size 7 in IP20 Enclosure
600/690
(1)
20-750-EMC3-F7
Frame size 7 in IP54 Enclosure 20-750-EMC5-F7
152 (6.00)
Ref
145 (5.71)
Ref
146 (5.76)
Ref
108 (4.27)
Ref
8 (0.33)
Ref
169 (6.69) Ref
Ø95 (Ø3.75)
Ref
Dimensions are in mm (in).
