1.10.5 E PRESSION pedal socket Check
c Connect the Expression Pedal (i.e. EV-5) FOOTSWITCH E PRESSION socket

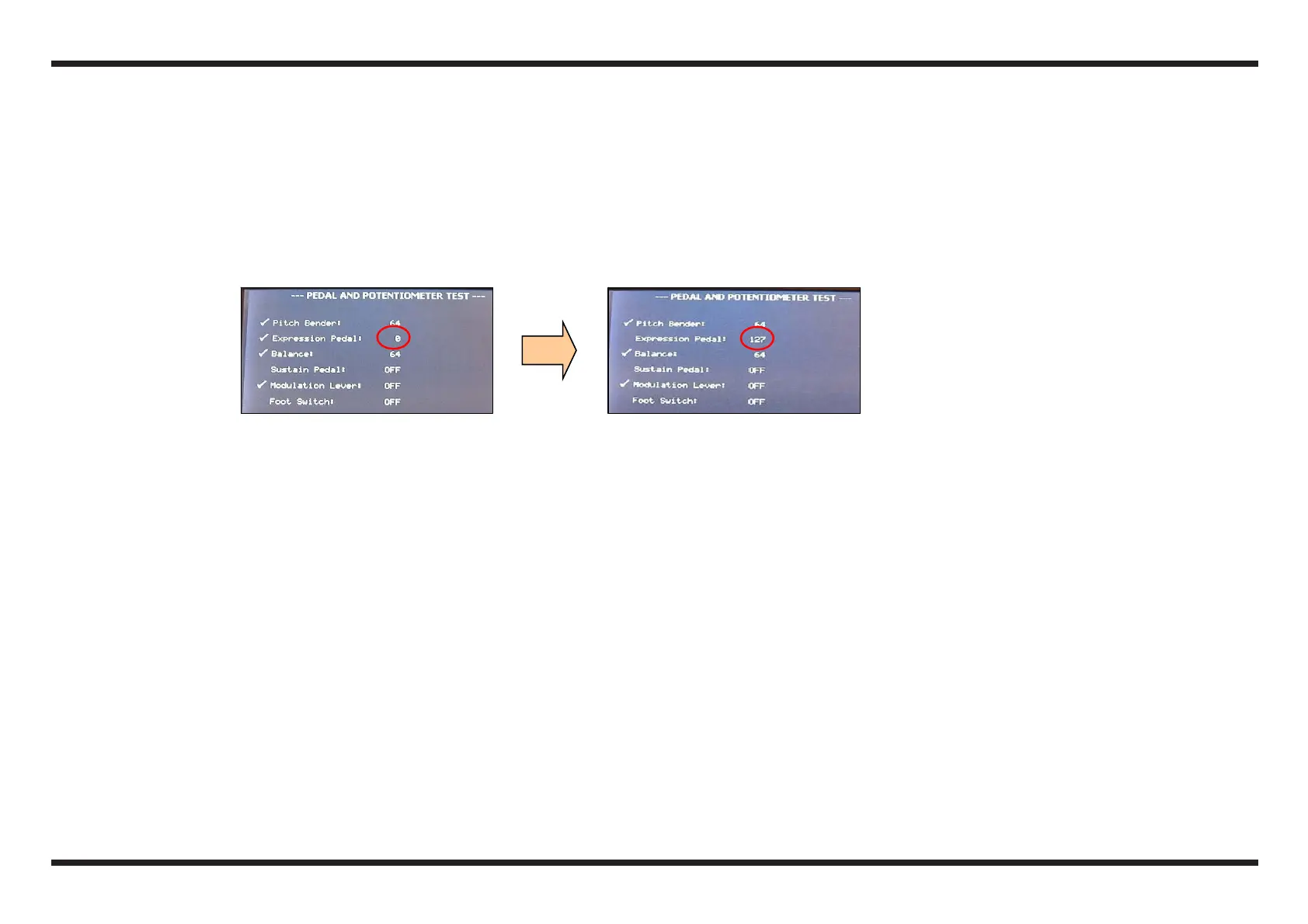

d With the pedal position at the minimum the display must show 0 (near the writing E pression Pedal
e With the pedal position at the maximum make sure that the display shows the value 127.
f If all the tests were carried out correctly, the display will show a “marking” symbol.
