4-1 Practicing Cutting Using the Test-use Material
Chapter 4: Performing Cutting
37
➌

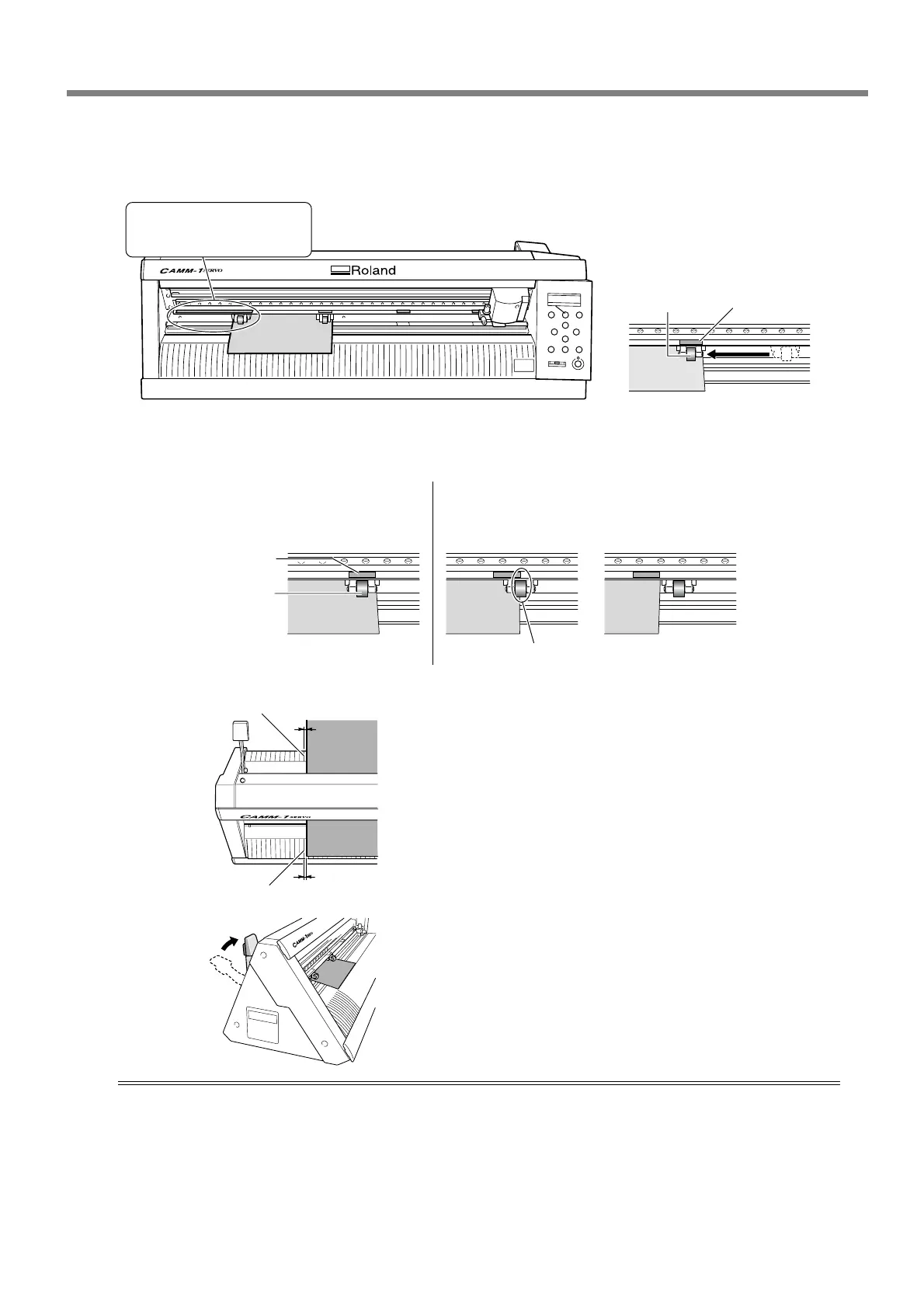

Move the pinch rollers so that they are positioned at the edges of the material and also inside the
areas of the pinch-roller position-verification marks.
Be careful to position the pinch rollers so that they are not too close to the edges of the material and do not
extend beyond the edges of the material.
➍
Align the left edge of the material so that it lies parallel to
the guide lines.
➎
Raise the loading lever.
The material is secured in place.
Important Notes
➢Do not use excessive force when moving the loading lever. Doing so may damage it.
➢If the condition of the material is as described below, then stretch or flatten it before use.
•The material is curled upward.
•The leading edge of the material is bent or creased.
Pinch-roller position-
verification mark
Pinch roller
Do not extend beyond
the mark.
Be sure to position the left
pinch roller inside the area
of the wide mark.
Pinch roller
Pinch-roller position-
verification mark
Guide line
Guide line
OK Not OK

Roland GX-24 Specifications

General

Cutting Speed	Up to 20 inches/sec (500 mm/sec)
Distance Accuracy	±0.004 inches (±0.1 mm) or less
Repeatability	±0.1 mm (0.0004 in.) or less
Interface	USB
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5 to 40°C (41 to 104°F)
Operating Humidity	35 to 80% RH (non-condensing)
Software Resolution	0.025 mm/step (0.001 in./step)
